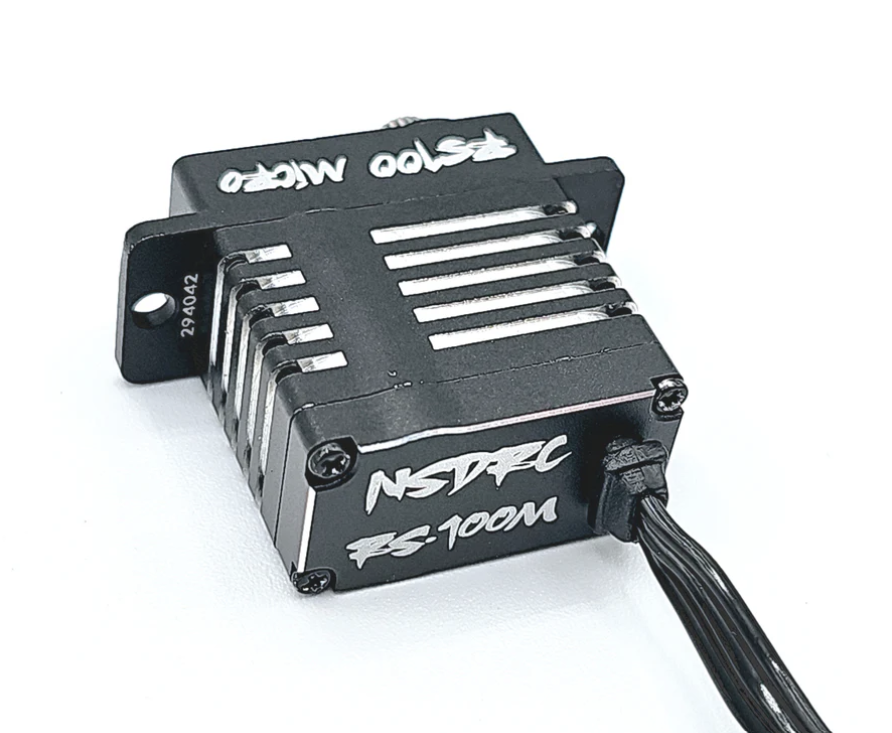

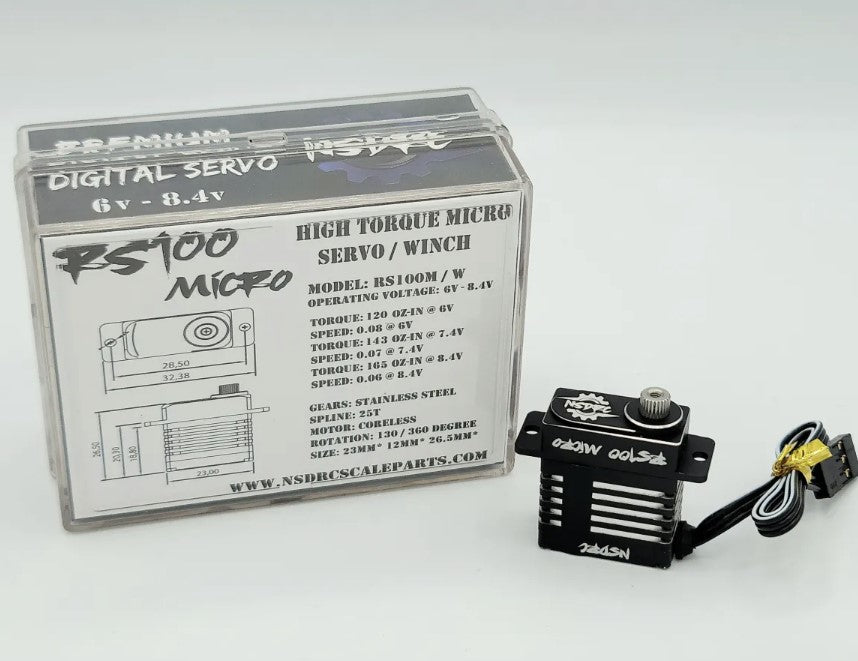

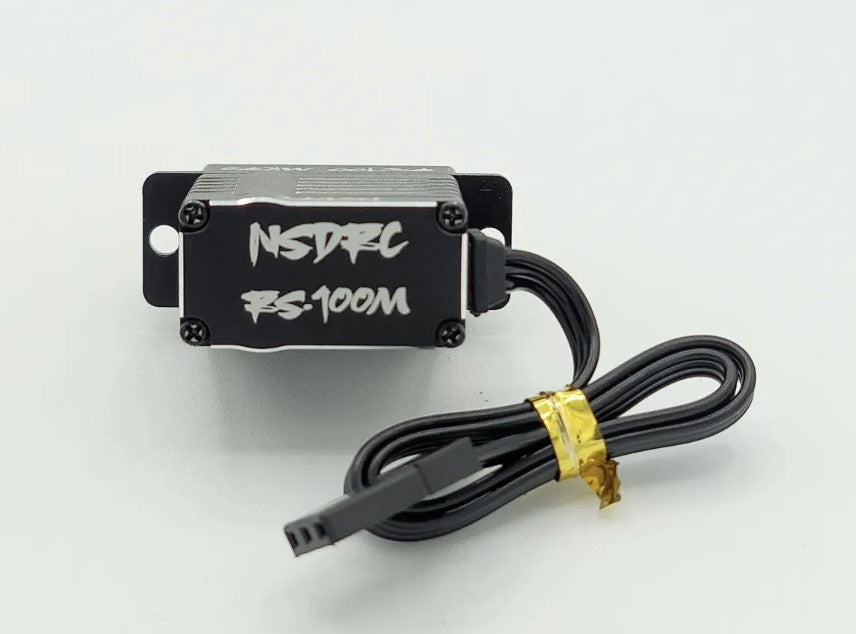

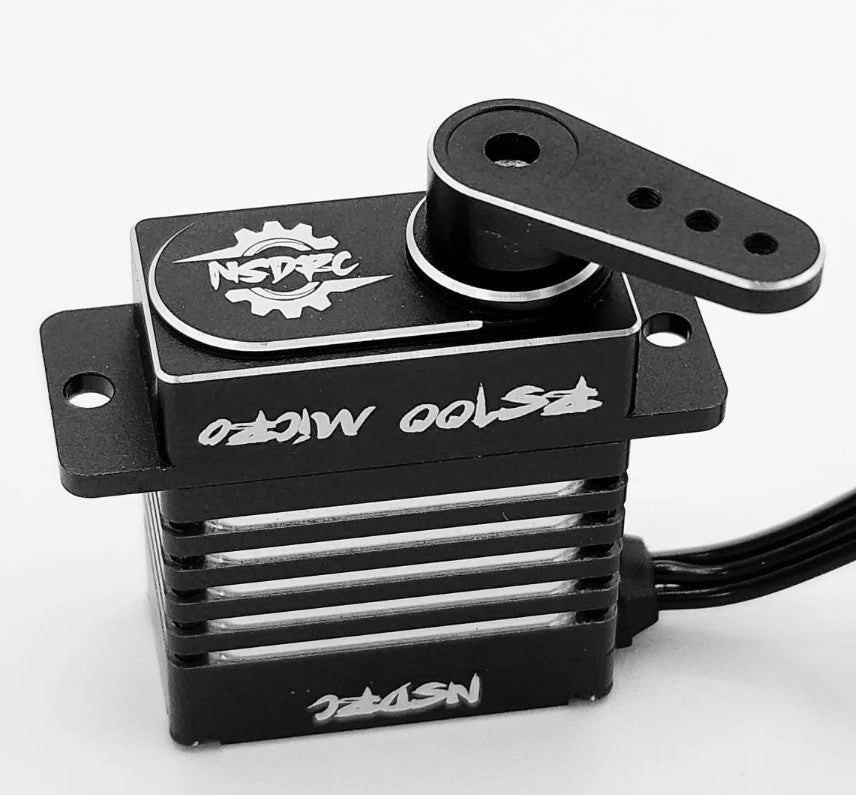

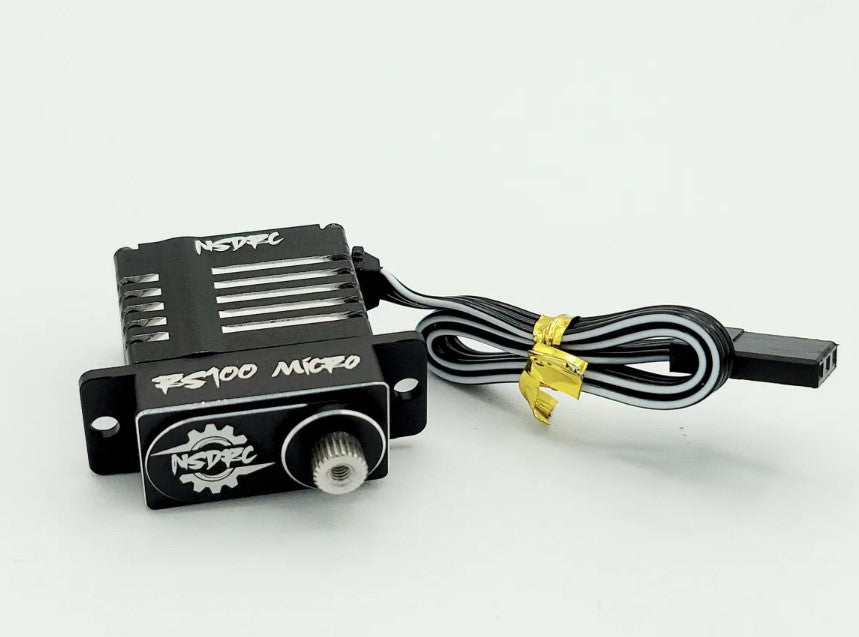

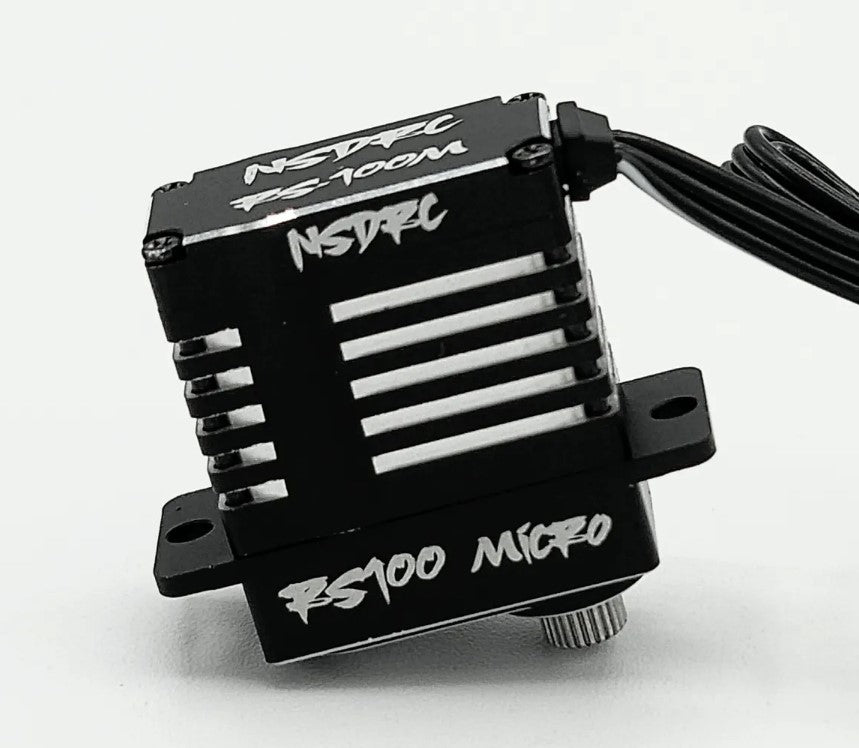

NSDRC RS100 High-Torque Micro Servo

NSDRC RS100 High-Torque Micro Servo

Regular price $54.99
Regular price Sale price $54.99
Sale Sold out
Shipping calculated at checkout.

 * As of April 2nd 2023, the RS100 has been upgraded! With a new motor and gears, it now has more power!

Operating Voltage: 5v - 8.4v

 Torque                               Speed

6v - 152oz/ 11kg               0.09 @ 6v

7.4v- 175oz/ 12.7kg          0.07 @ 7.4v

8.4v- 197oz/ 14.2kg          0.06 @ 8.4v


•Full Cnc Aluminum Case

•Hardened Steel Gears

•High Quality Angle Sensor

•Spline: 25T 4.9mm Micro

•Bearing: 2BB

•Wire Length: 185mm

•Weight: .70 oz / 20 Grams

•Dimensions: 23 x 12 x 26mm

•Water Resistant with 7 point O-ring seal

Not Submarine proof, do not submerge


*Our Micro Bec is recommend for Micro servos being used in 1/24 and 1/18 Micro rc. Stock Micro rc electronics are typically pretty weak and need a boost in order to run high power servos properly, for this we recommend using our Micro Bec's.


Warranty: 6 month
