AKERS Engineering

Magne-Mount Magnetic Body Mounting System

Magne-Mount Magnetic Body Mounting System

Regular price $14.99
Regular price Sale price $14.99
Sale Sold out
Shipping calculated at checkout.

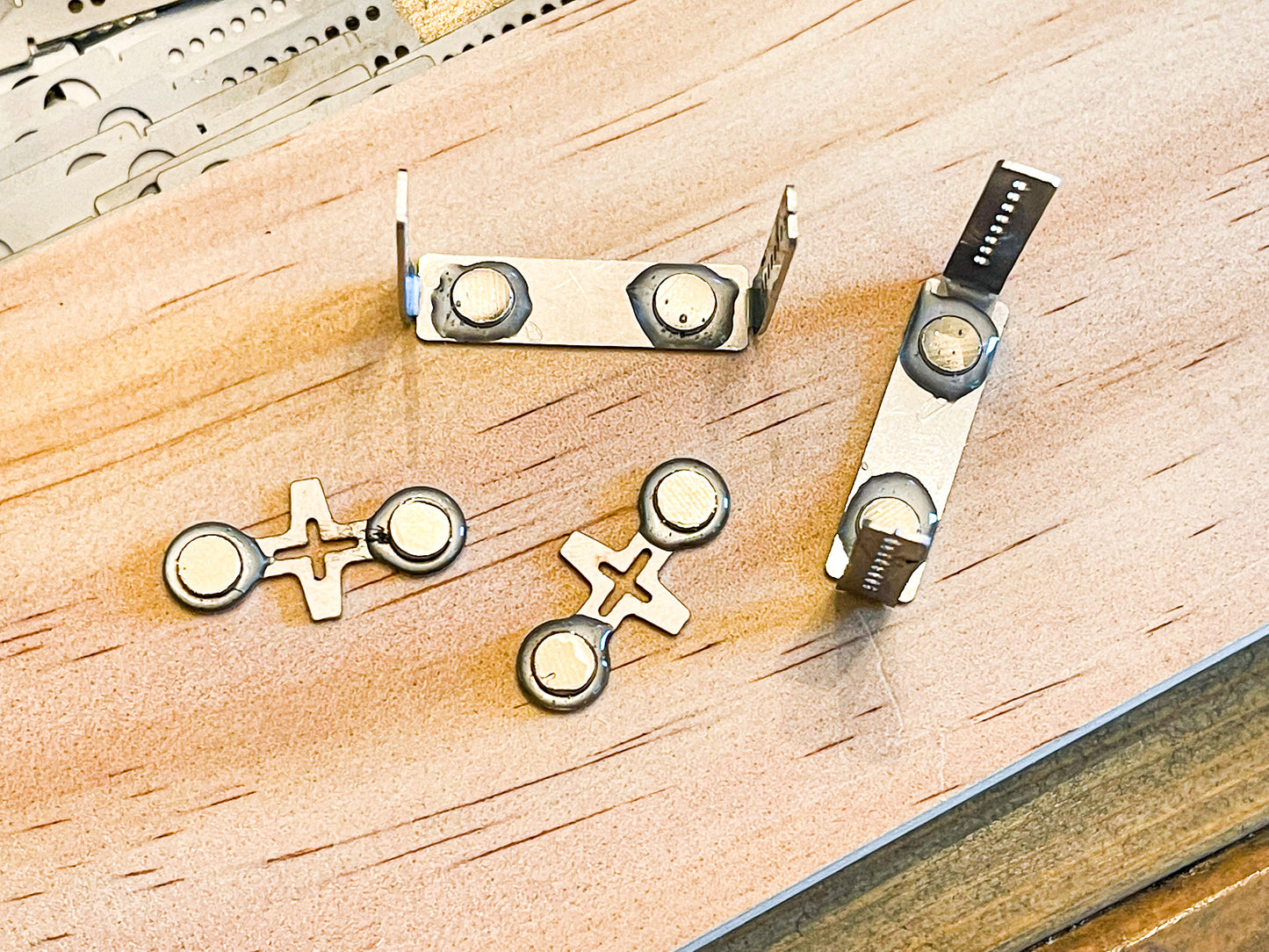

This ultra lightweight and slim (0.8mm) magnetic mounting system will help you mount your chosen body to any SCX24 chassis. Simply fold the chassis-side 304 stainless steel brackets at the pre-determined tabs and insert between the frame rails. Use your preferred adhesive (AE recommends Shoe Goo II) to secure the included neodymium magnets into place or CA glue can be strategically applied as well. You can choose to mount the magnets to either the upper-side or underside of the mounting brackets depending on your specific requirements.

Use the pre-cut holes to help align your chassis-side body mount and secure in place with either hardware and/or adhesive. Choose to cut or bend the lower portion of the tabs to keep them unseen once installed. Again, adhere the included magnets into the body-side brackets and then mount on the underside of the body. Use the tabs on the body-side mount to help stabilize the bracket if the body's surface is uneven.

PAY VERY CLOSE ATTENTION TO THE POLARIZATION OF THE MAGNENTS! DO NOT SECURE THEM WITHOUT BEING SURE YOU'VE ORIENTATED THEM CORRECTLY!

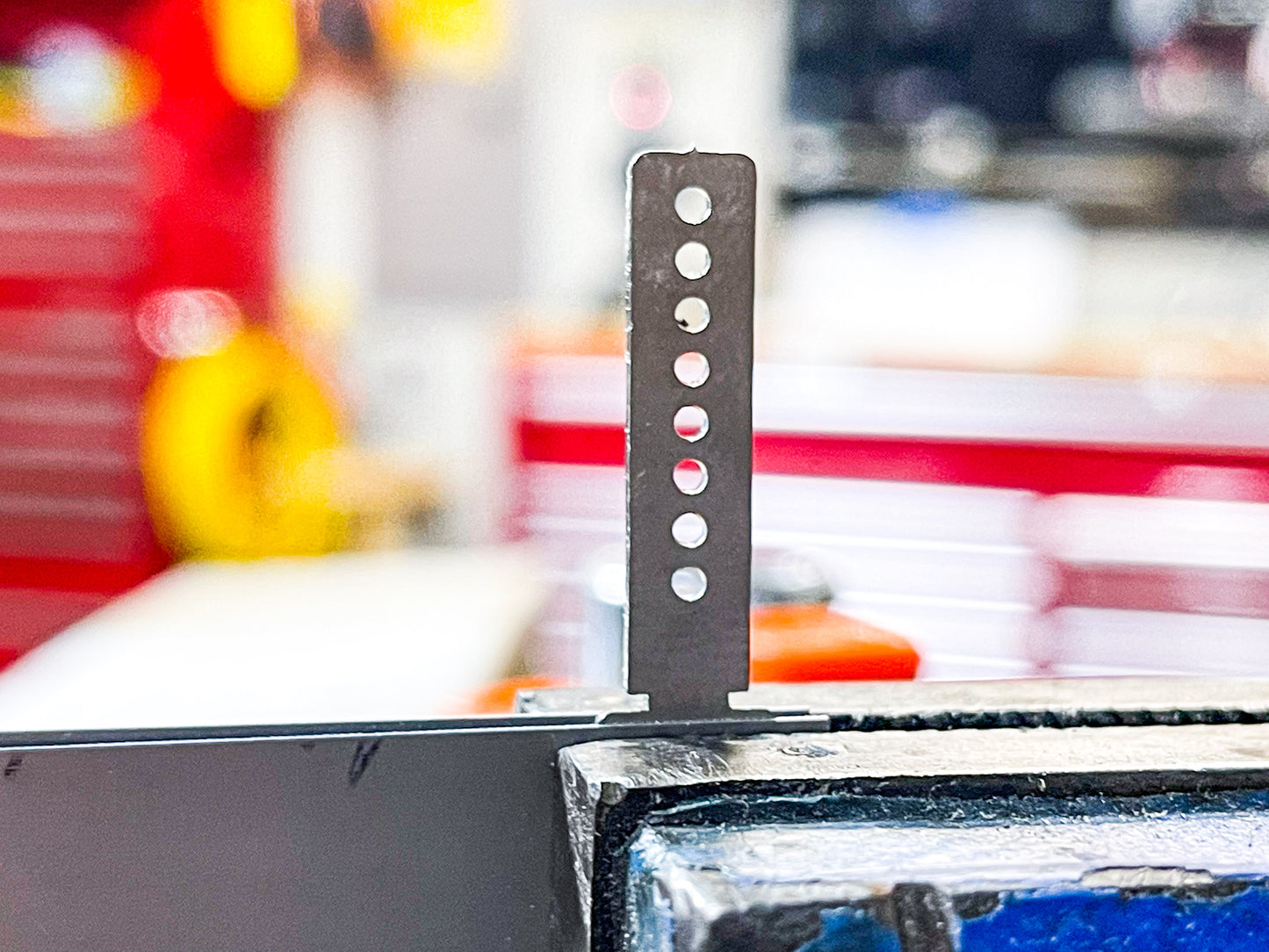

USE TWO STRAIGHT-EDGES TO BEND THE METAL, DO NOT TRY TO BEND IT 90 DEGREES IN YOUR HAND OR IT MAY BEND AT A SUB-OPTIMAL POSITION.

Included:

  • Qty. 8, 6mm x 3mm neodymium magnets
  • Qty. 2, chassis-side 304 stainless steel brackets
  • Qty. 2, body-side 304 stainless steel mounts

Weight: 10g total, including magnets

Note: Kit includes parts to secure one body to one chassis.
