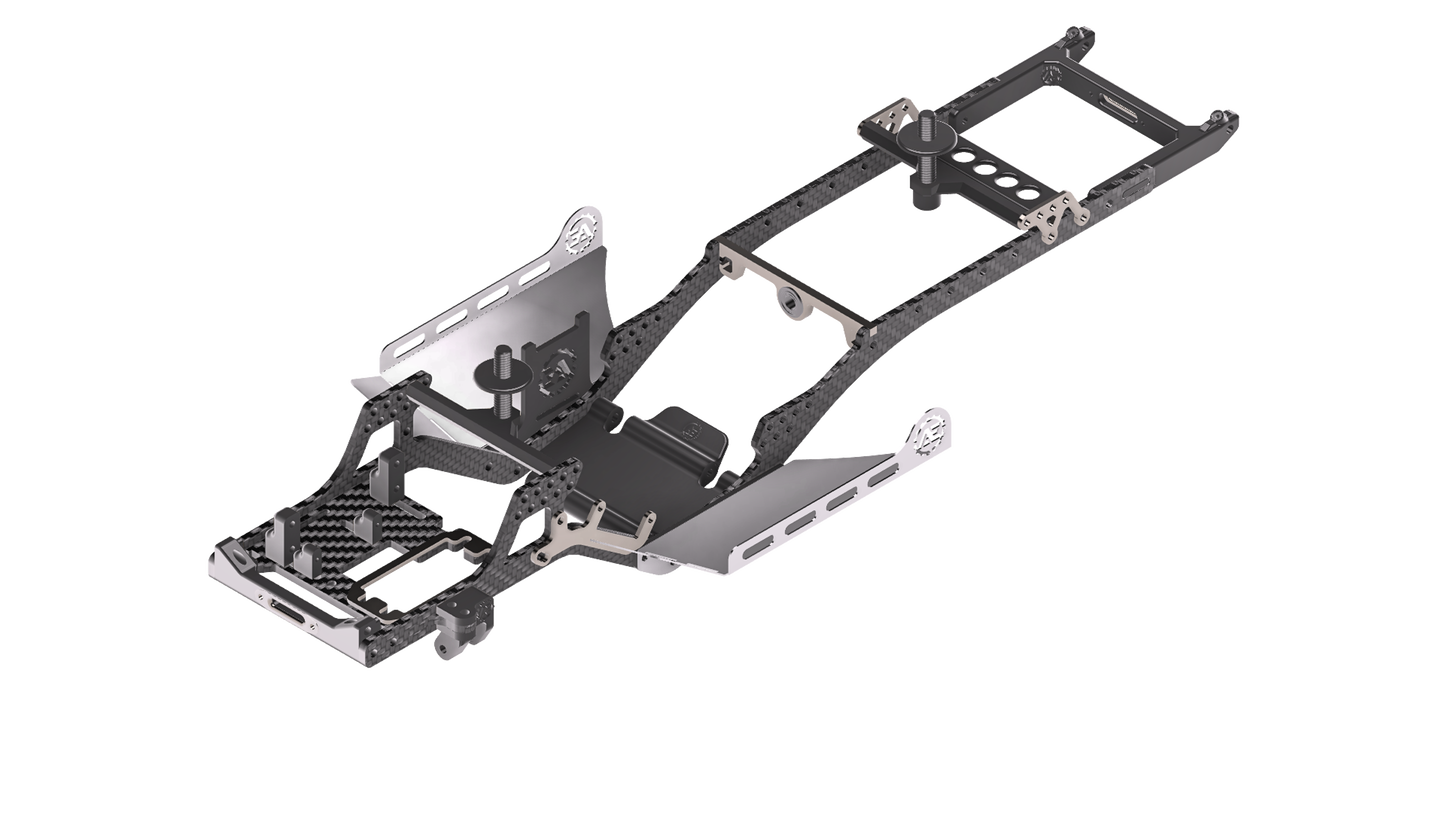

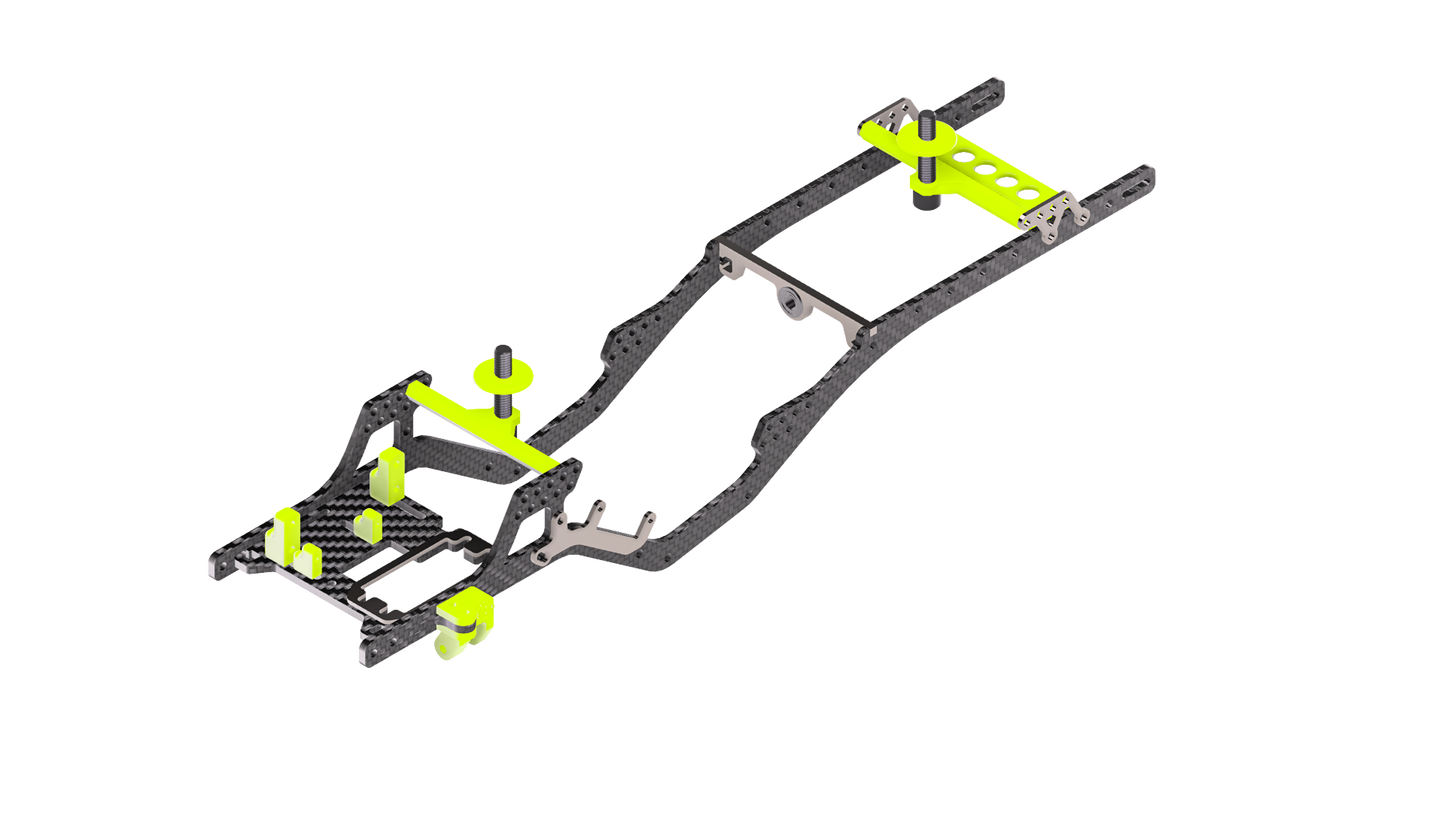

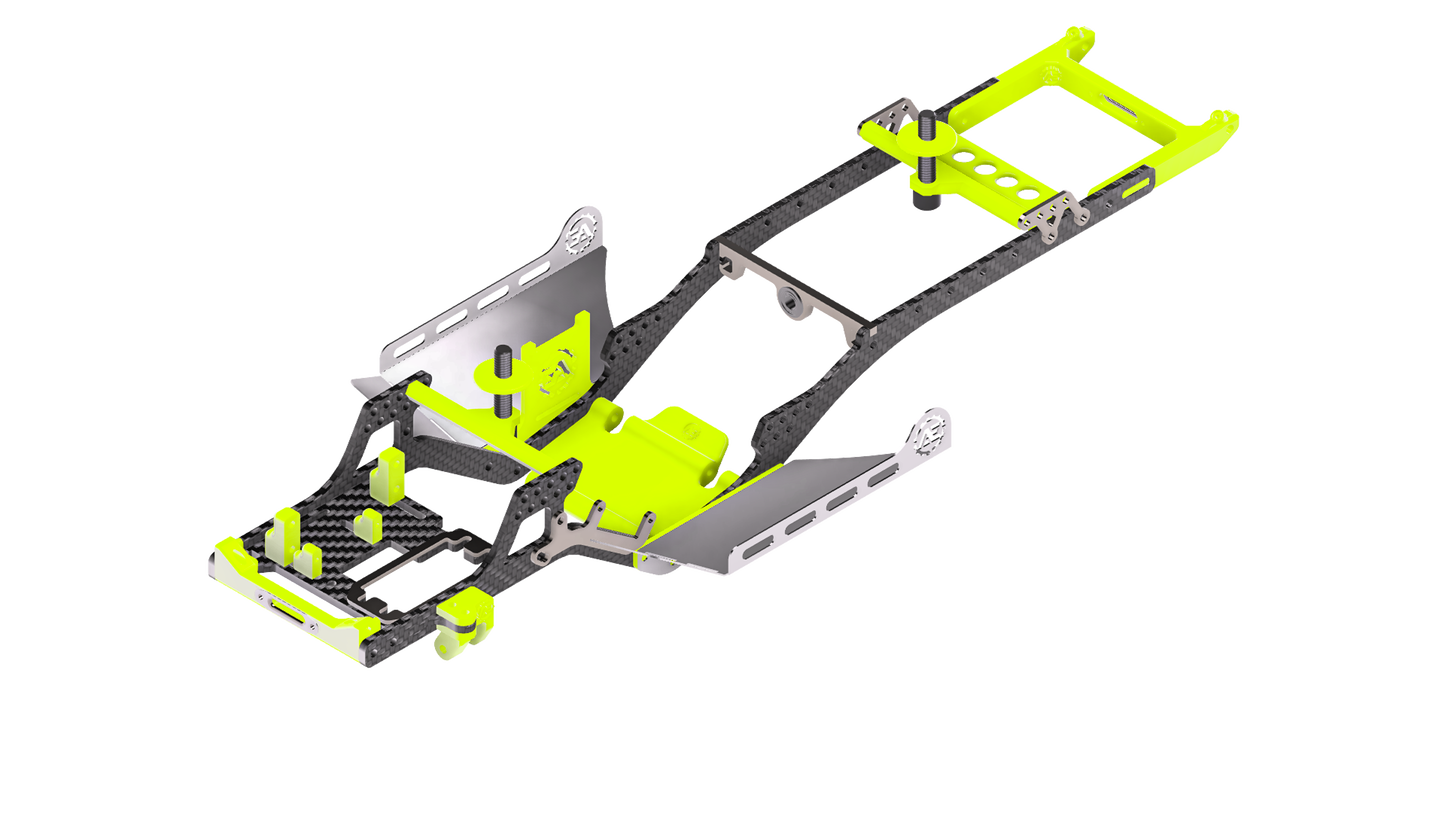

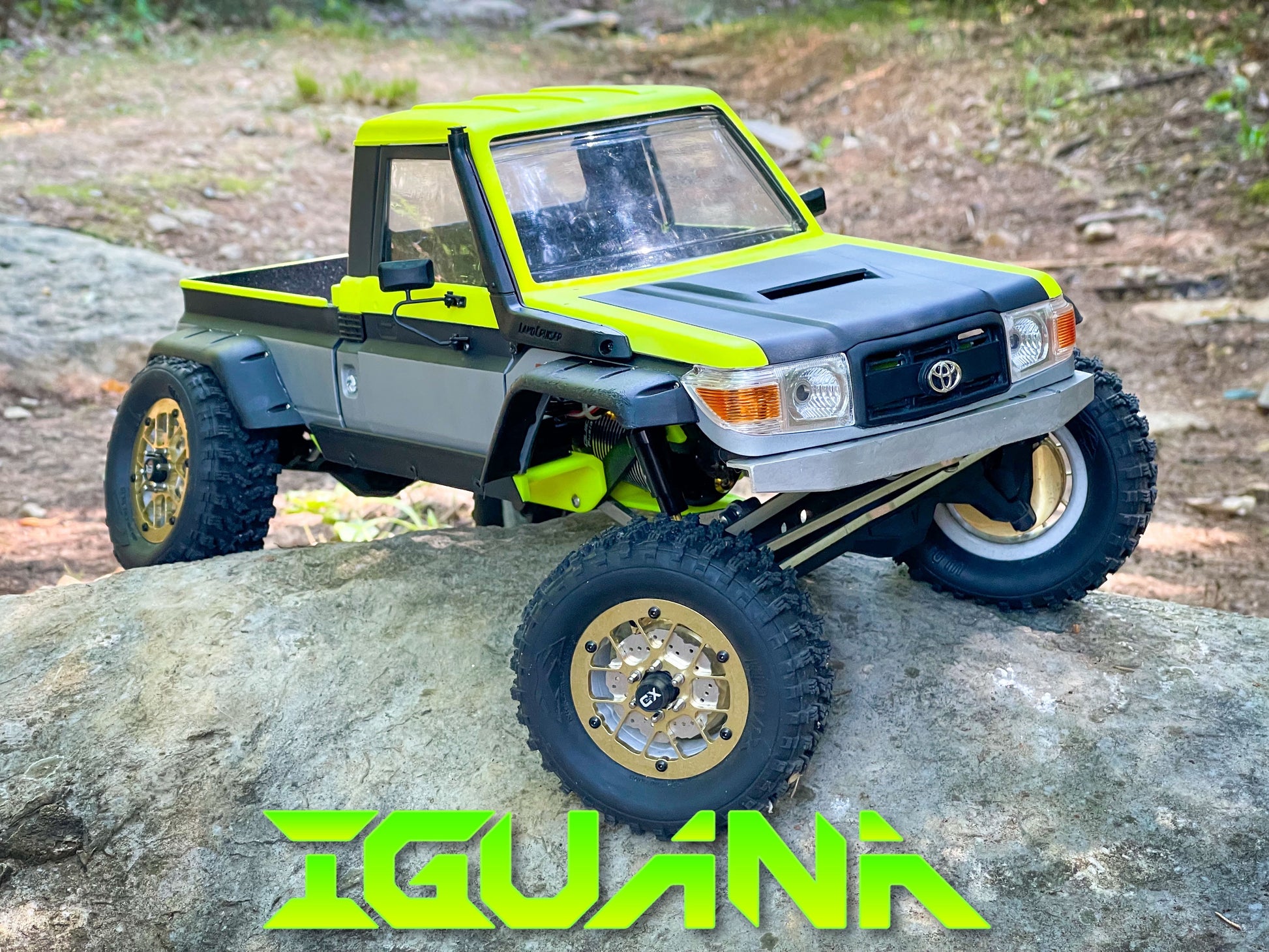

IGUANA LCG Chassis System

The IGUANA™ LCG Chassis System is the culmination of over 2 years of chassis-specific research and development. The challenge was to "have your cake and eat it too". The Center of Gravity (CoG) needed to remain as low as possible while maintaining a great breakover angle and excessive ground clearance aft of the skid plate. I am pleased to announce that I believe this chassis delivers on all of those objectives.

Currently one of the most feature-dense platforms available with the option to include:

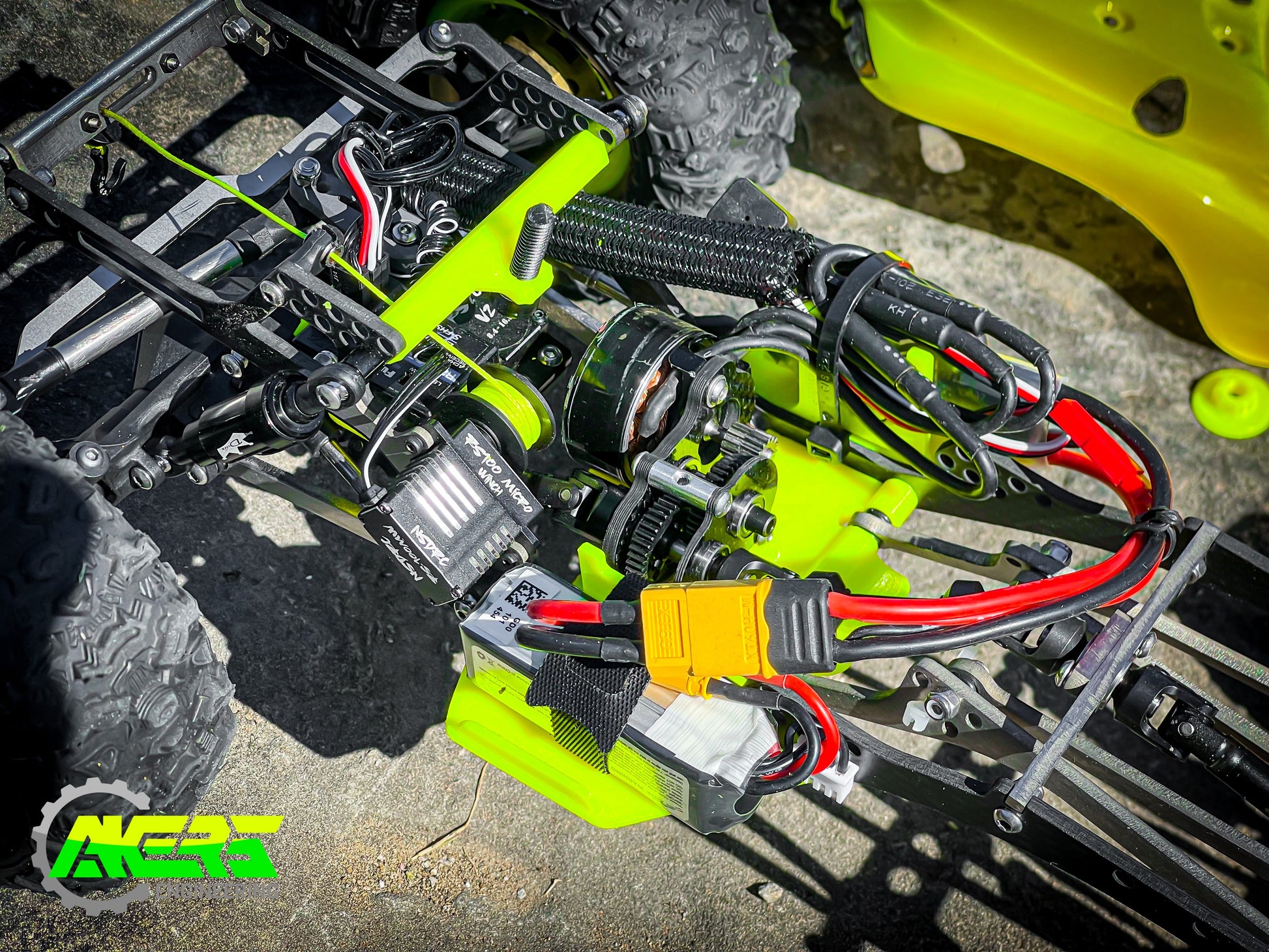

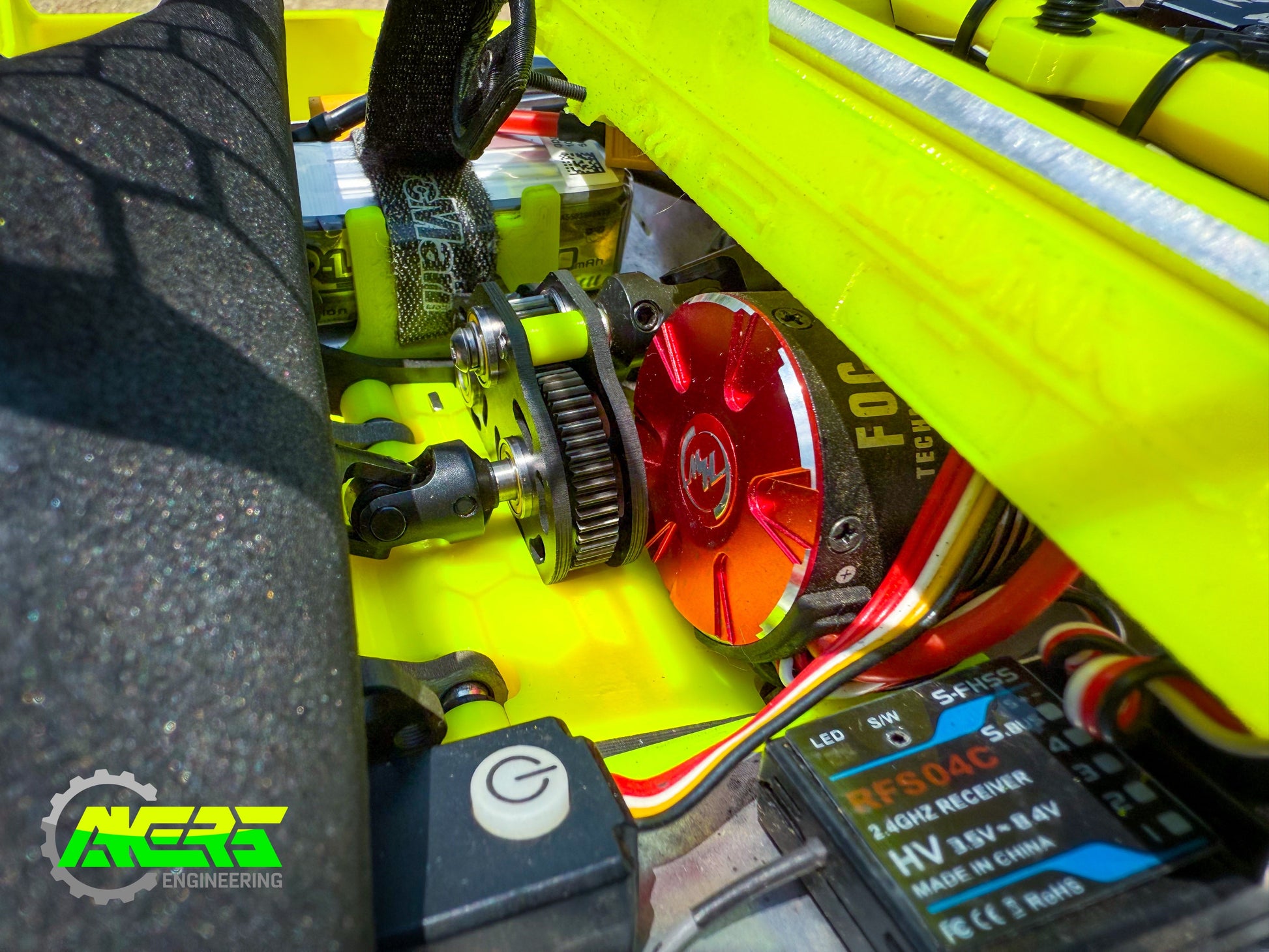

1. Team Garage Hack (TGH) E.B.R. Edition Forward Motor Mount (FMM)

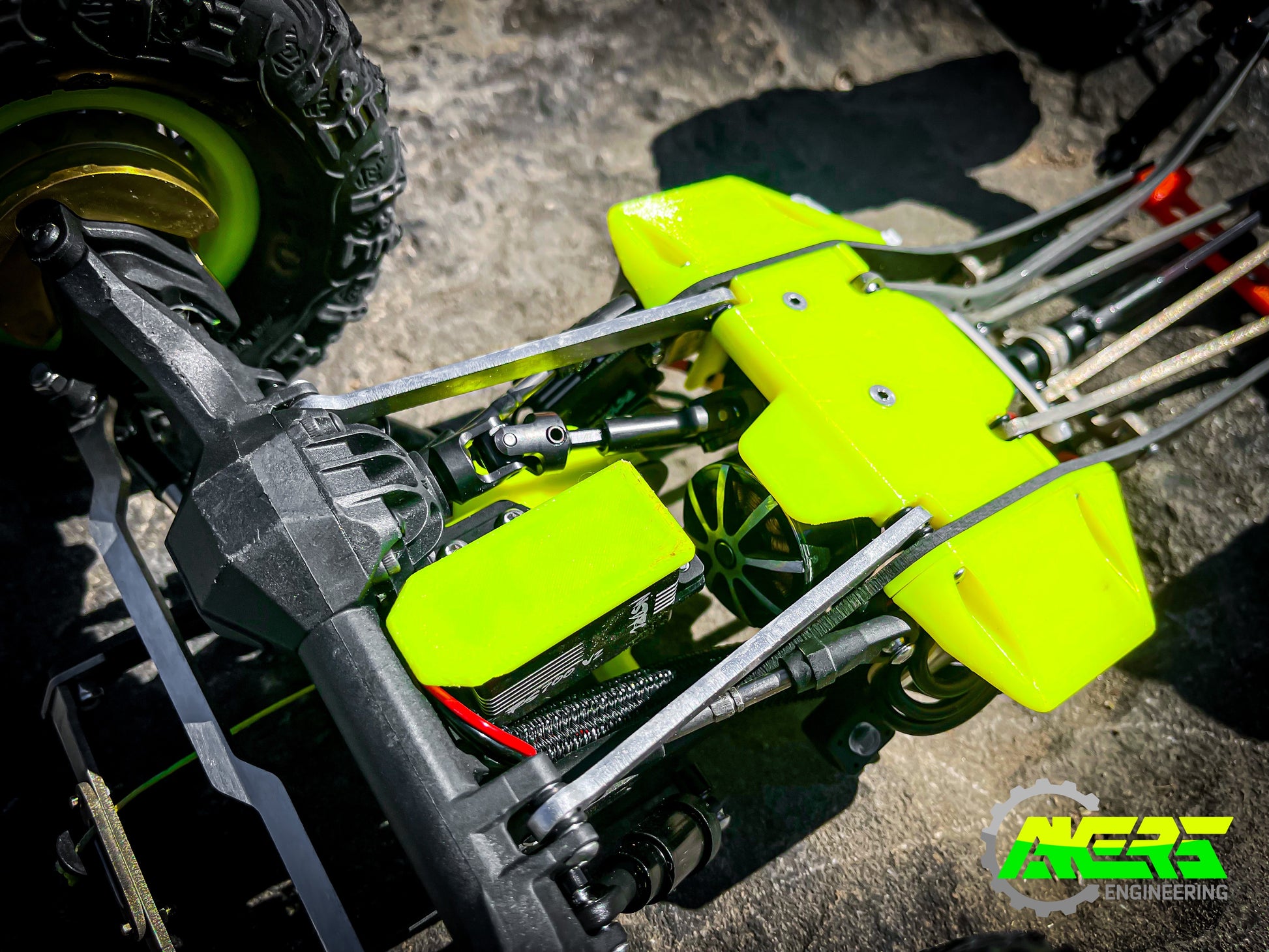

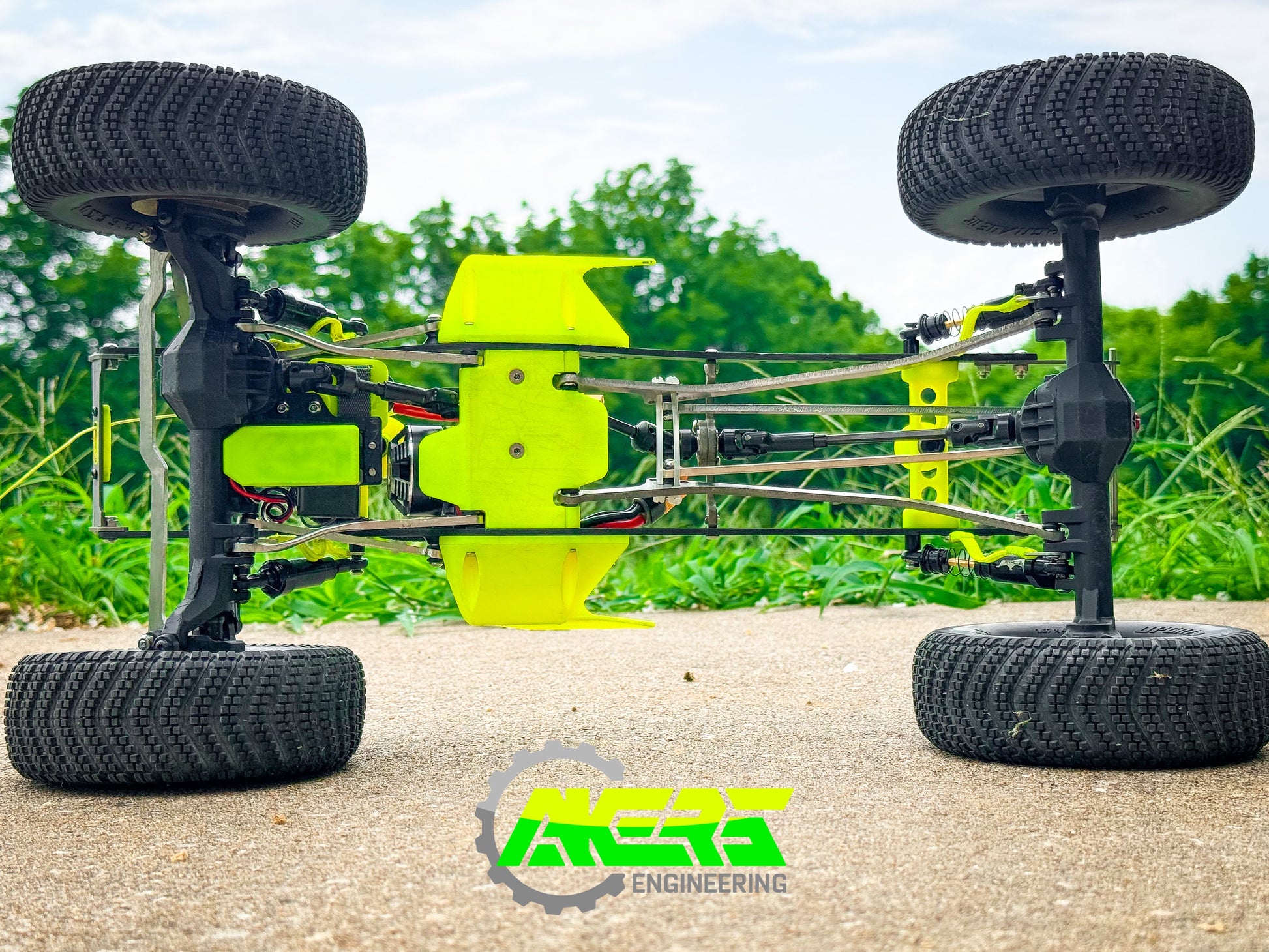

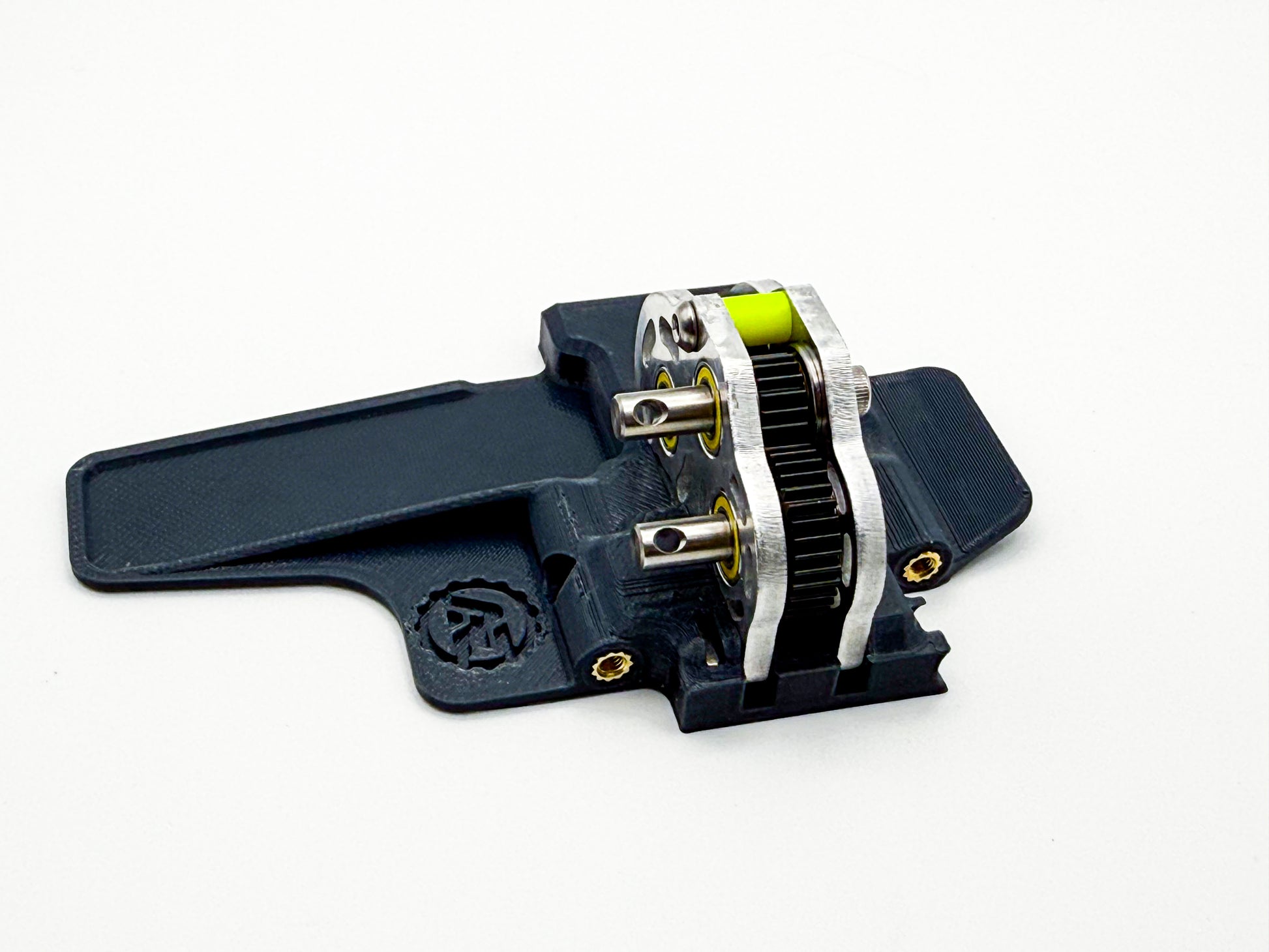

2. ALL NEW AKERS Engineering-designed ABDOMEN skid & transfer case utilizing TGH's proven 1018 case-hardened tool steel gears (30% OD) and makes for a completely smooth underbelly

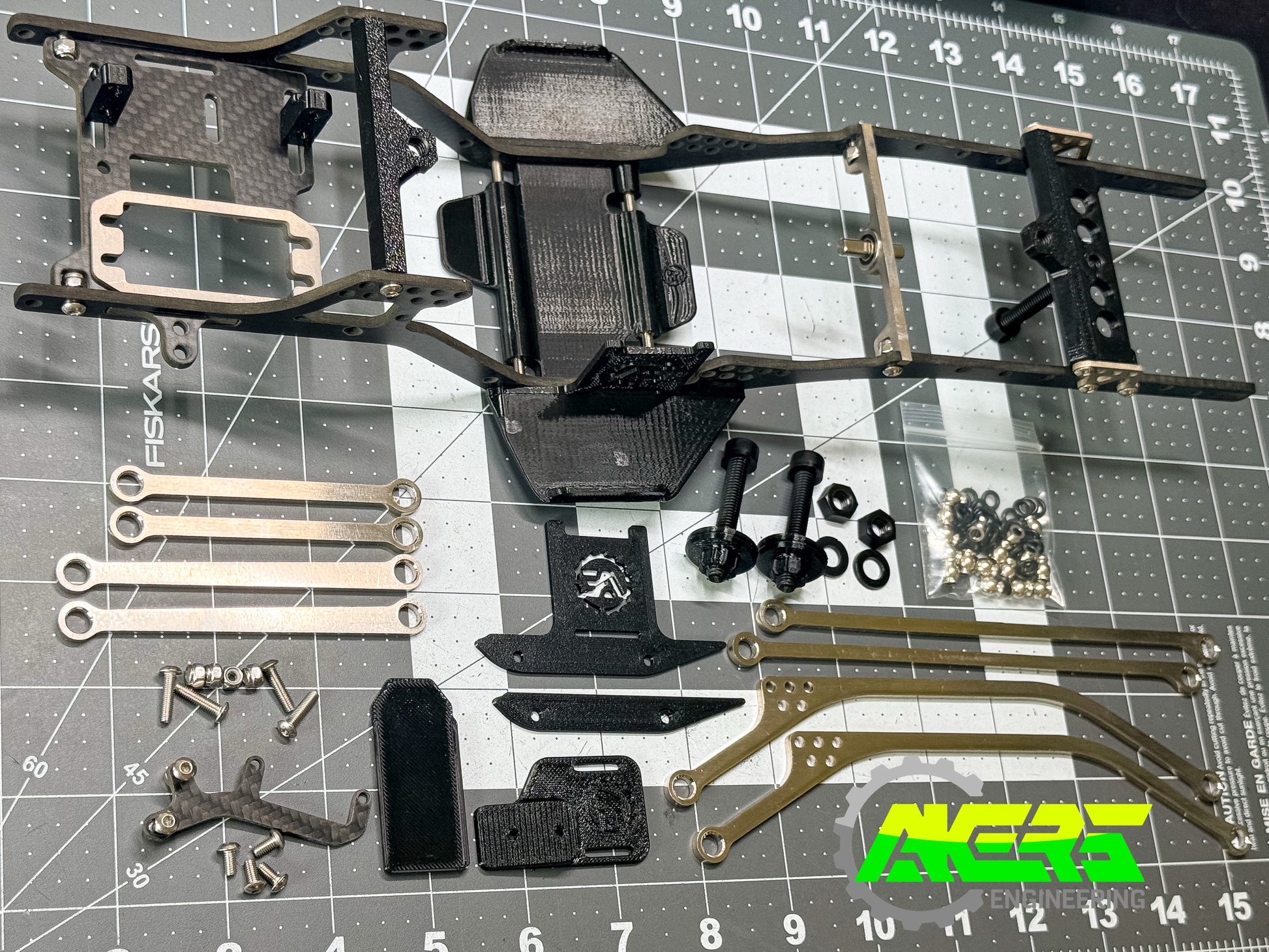

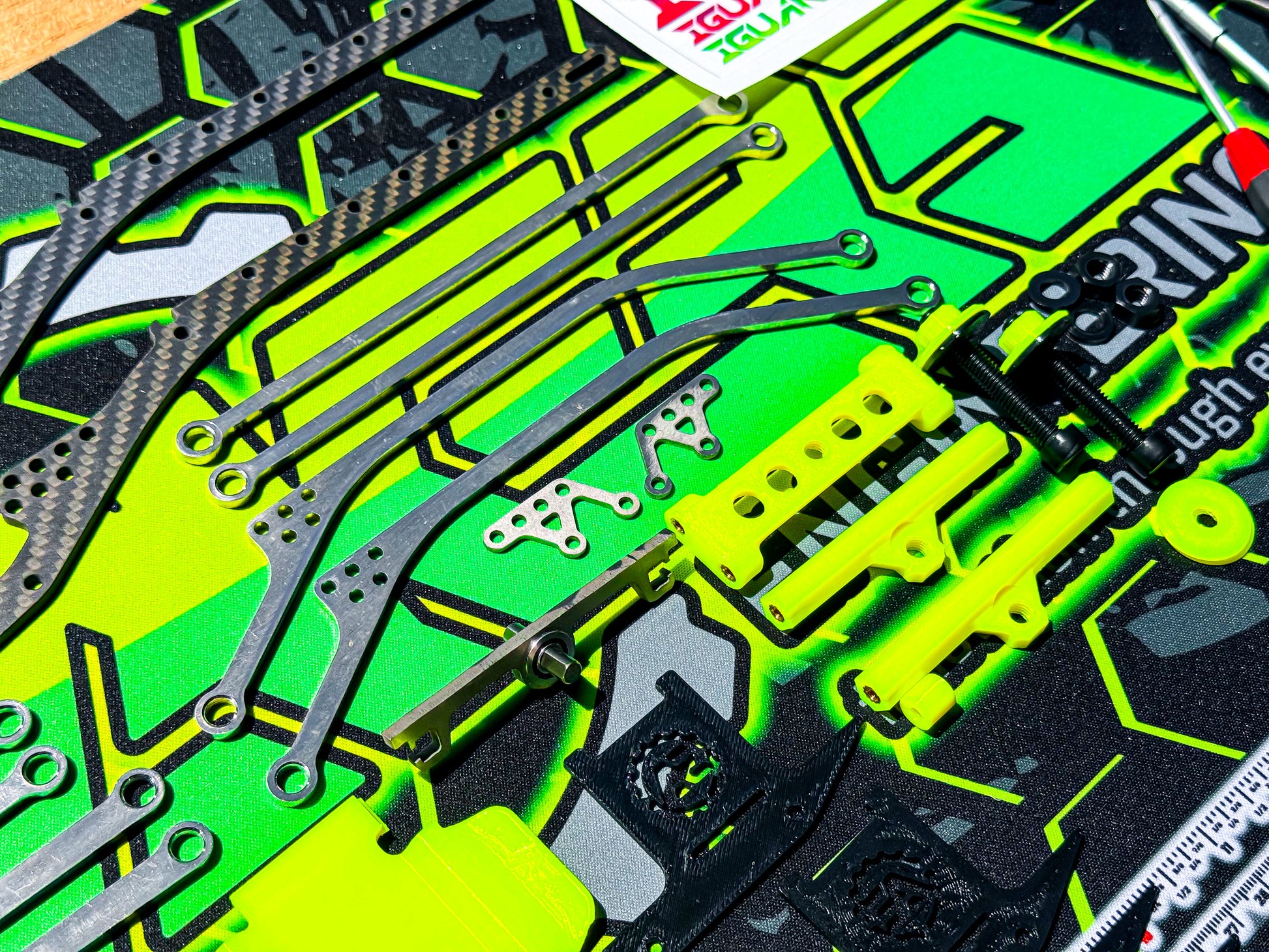

3. ALL NEW one-piece link set utilizing a combination of 316 stainless steel, 7075 aluminum and VP/Incision stainless pivot balls
4. F10-specific, one-piece, high-clearance tierod allows for a smooth 60+ degrees of steering angle and un-matched strength

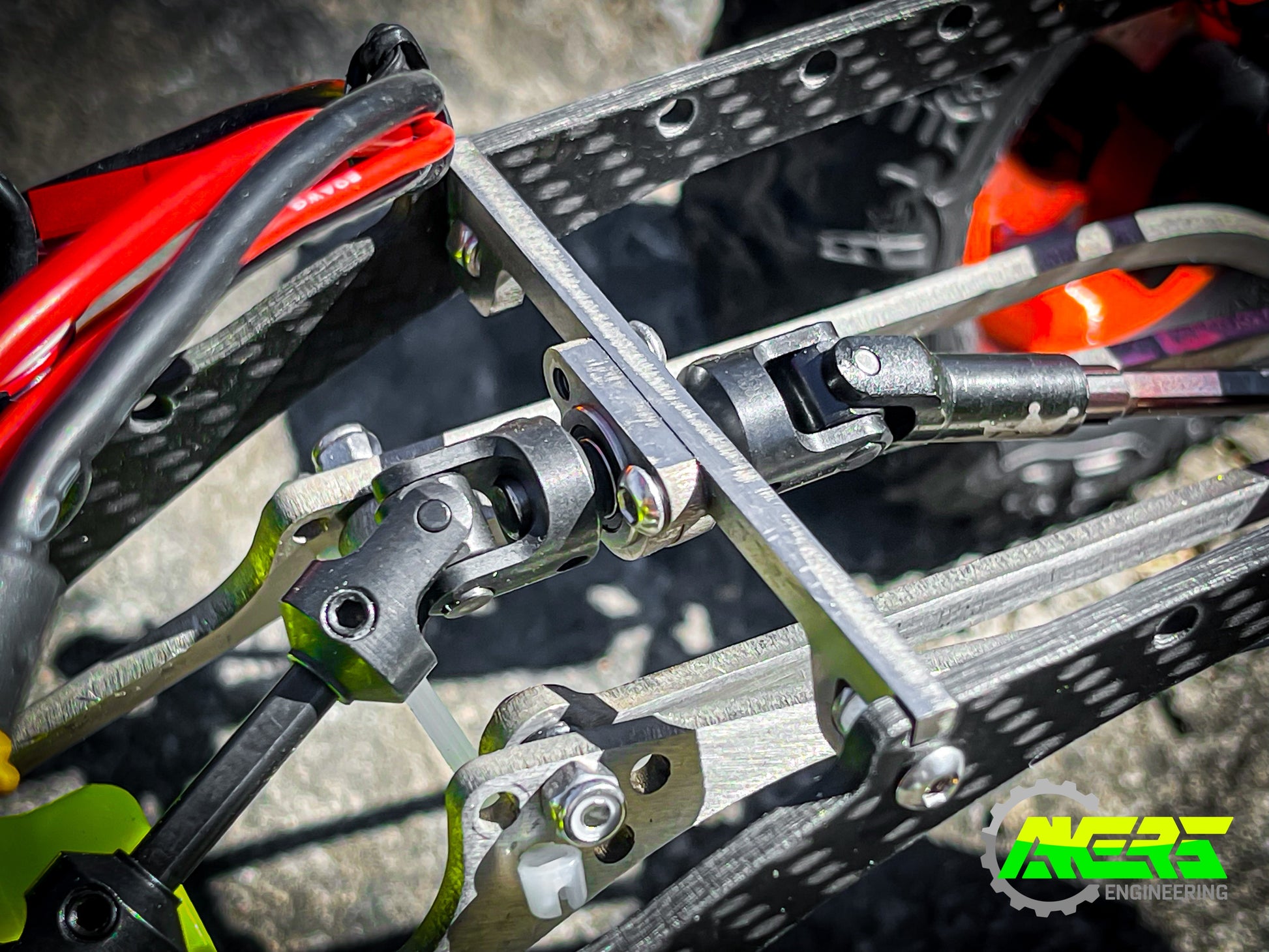

5. Rear carrier bearing support crossmember
6. Numerous configurations for mounting full-size and micro servo winches
7. Customizable rock sliders
8. Designed with the 2023 SORRCA rule set in mind

• Overall chassis length = 367mm [14.4"] (405mm [16"] with included bumpers)
• 10° angled skid with a 38mm eye-to-eye mounting pattern (Axial / Element)
• Frame Rail Width: inside = 67mm / outside = 73mm



Thank you for your interest in this ALL NEW 1/10 scale ultra high performance LCG chassis system. AKERS Engineering looks forward to using this platform as an upgradable piece of hardware which can be tuned for all different terrains and driving styles.

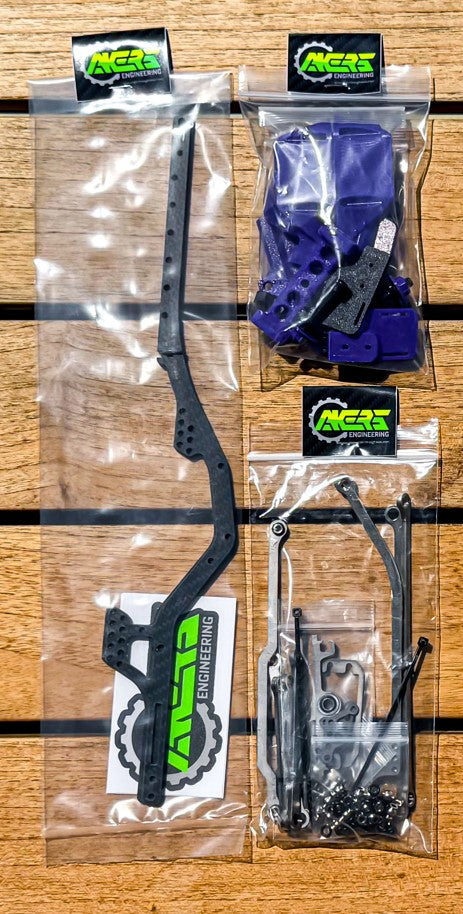

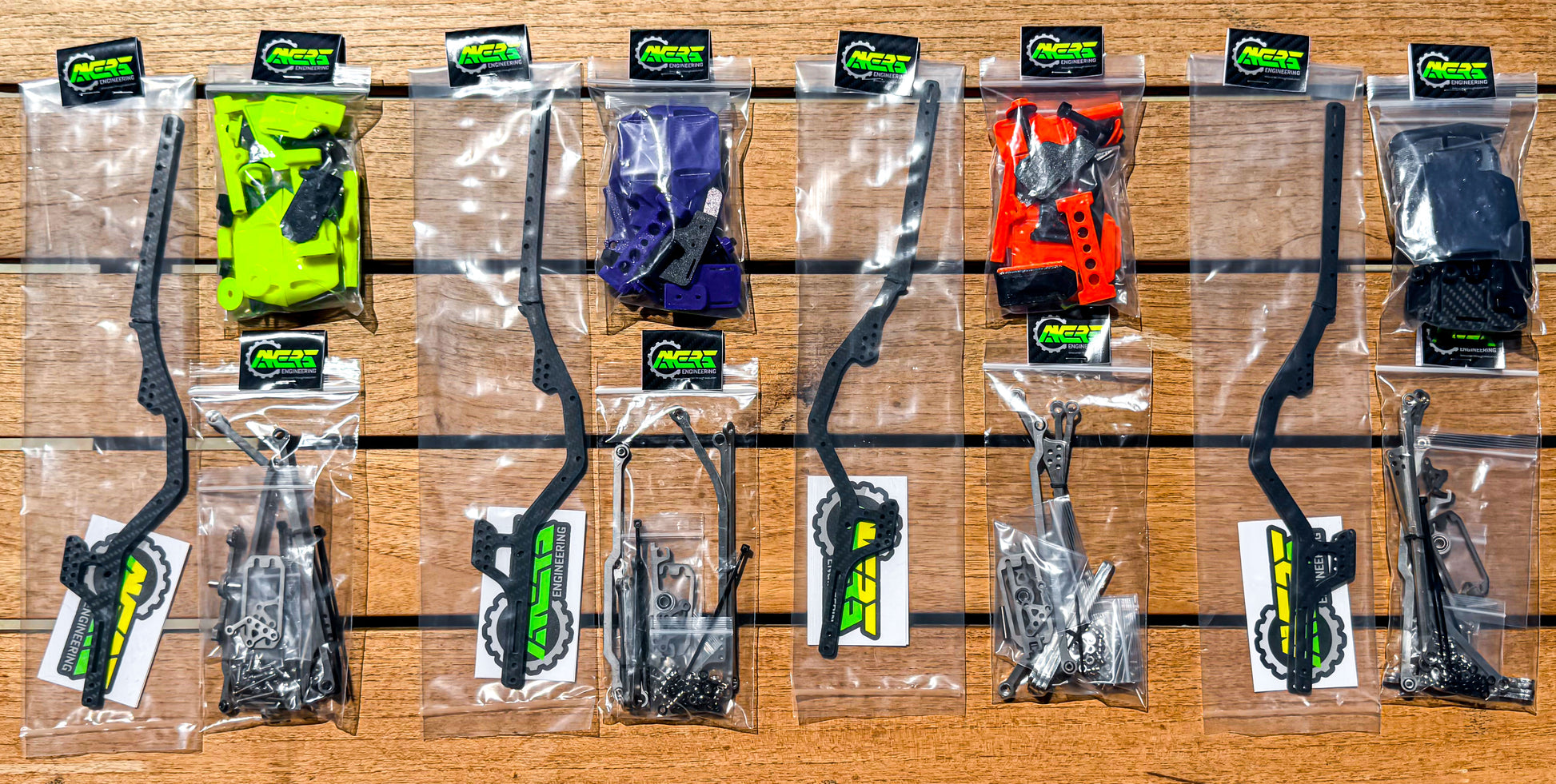

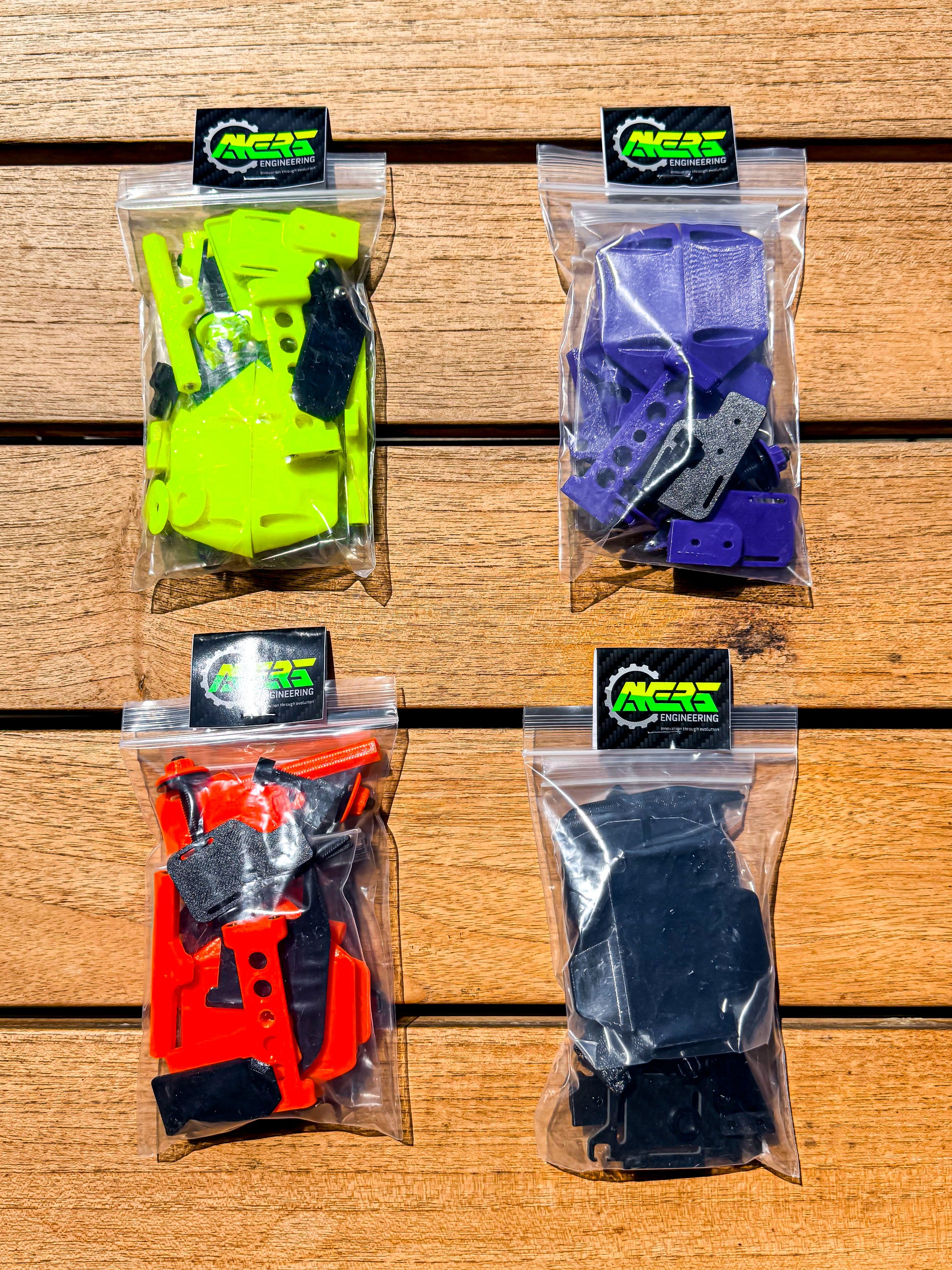

The IGUANA is currently offered in four various trim "levels" to accommodate for different build plans and the builder's current stock of varying parts.

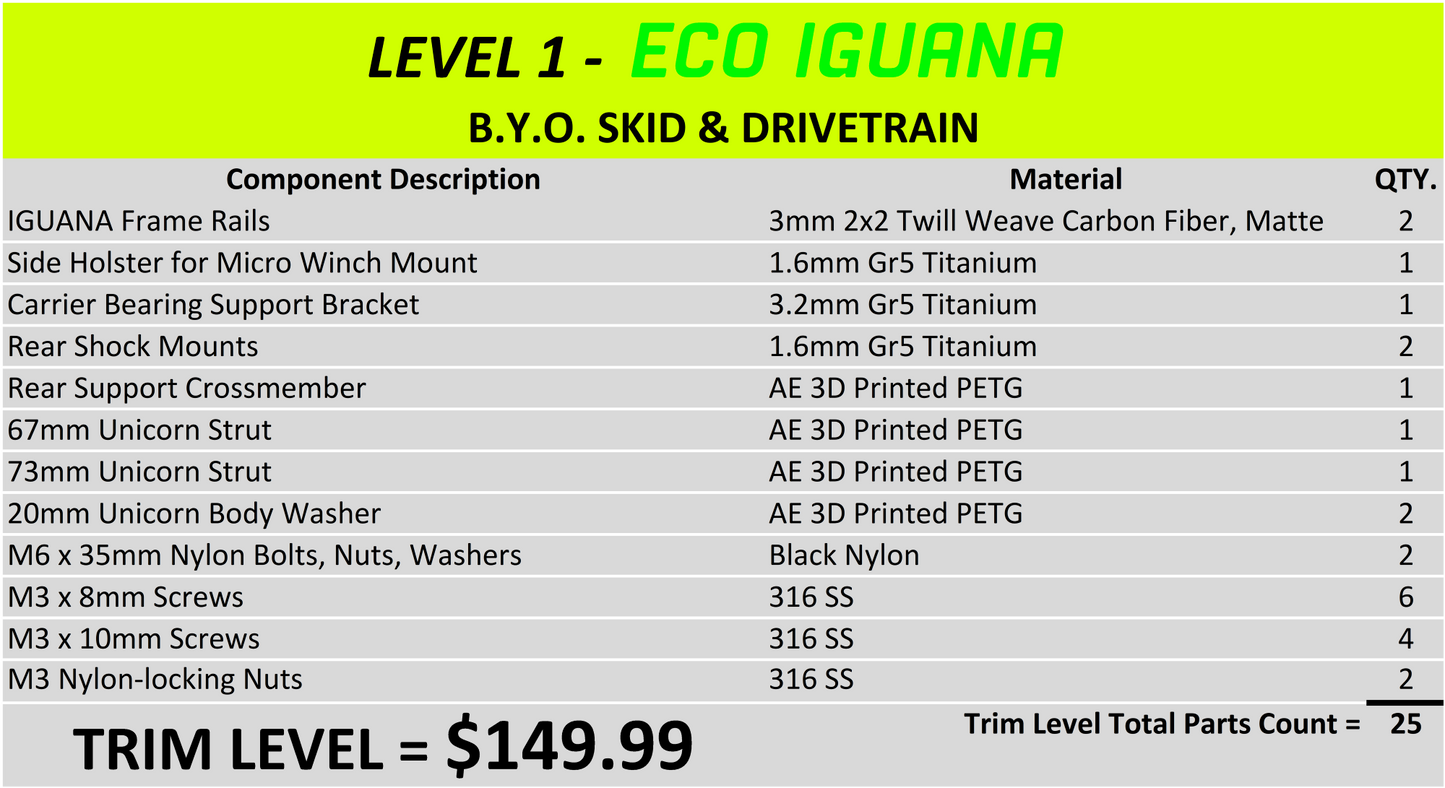

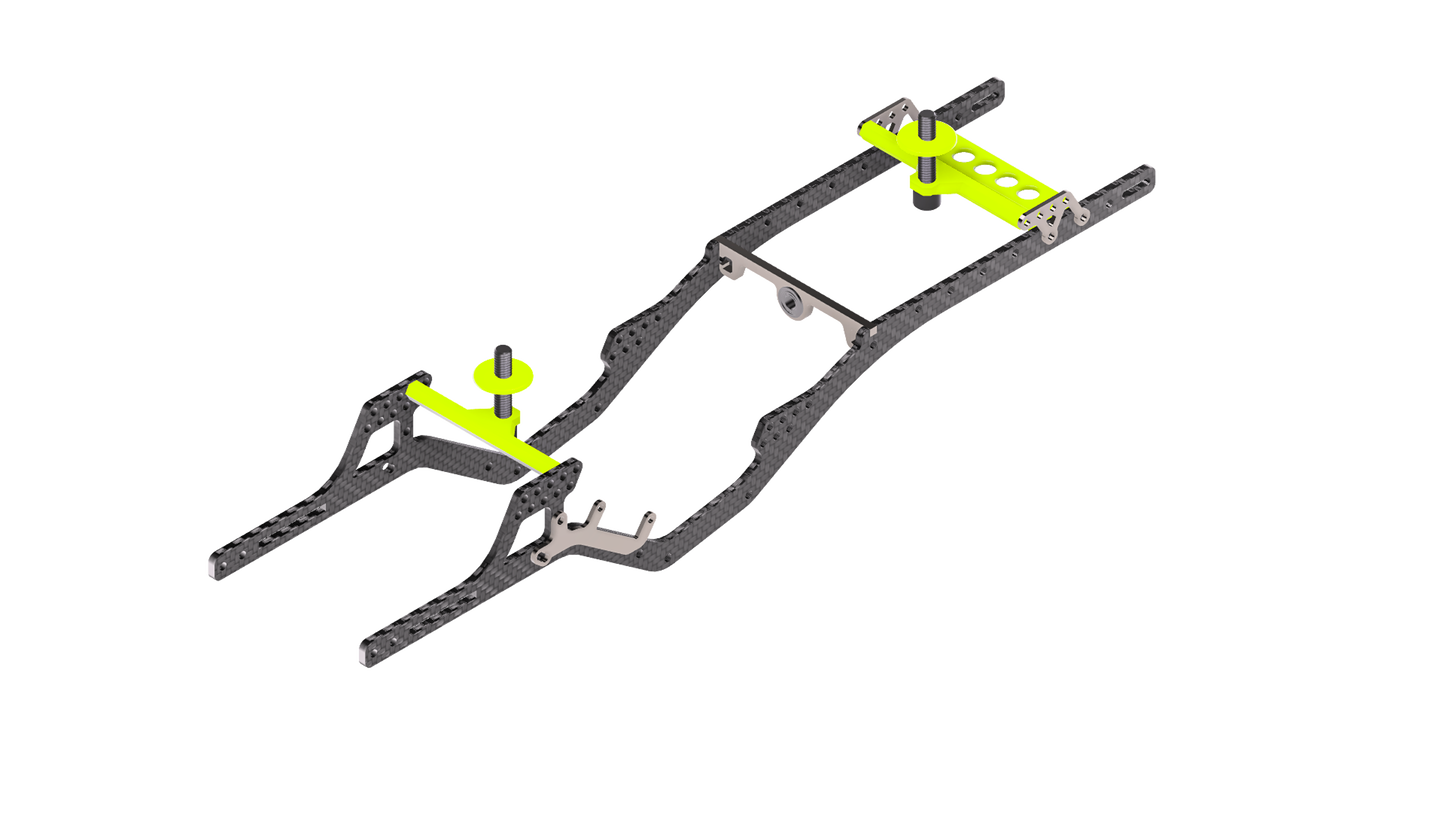

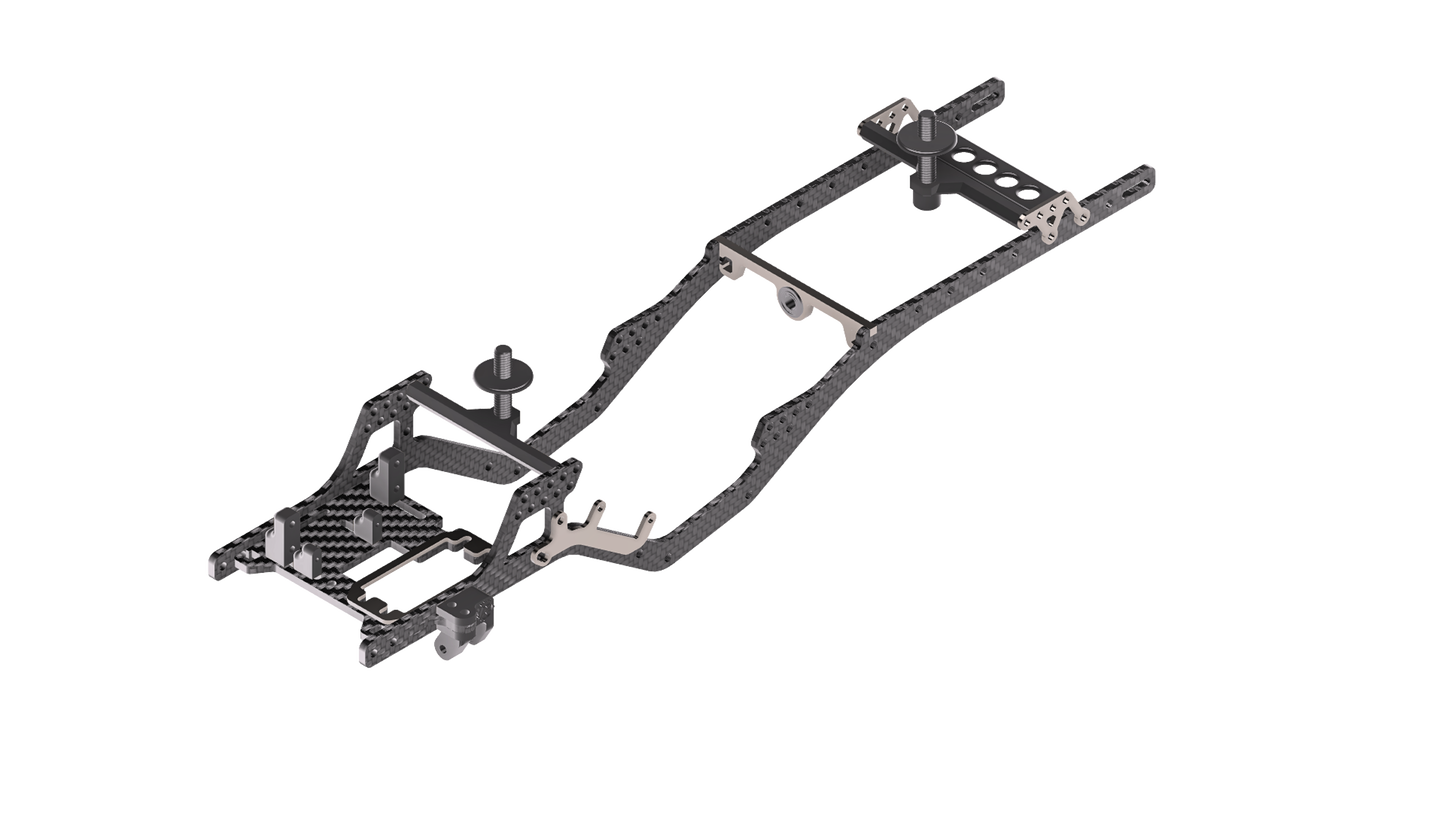

LEVEL 1 - ECO IGUANA

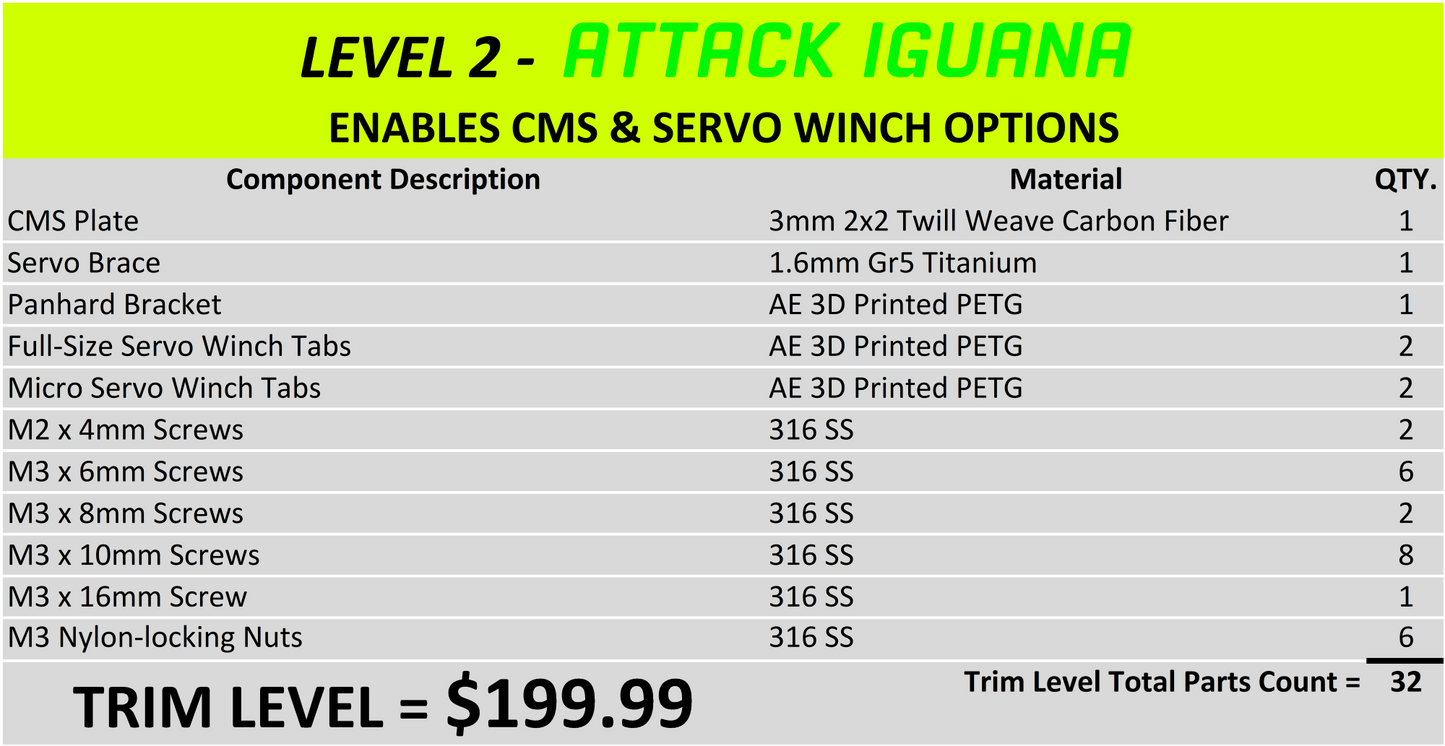

LEVEL 2 - ATTACK IGUANA

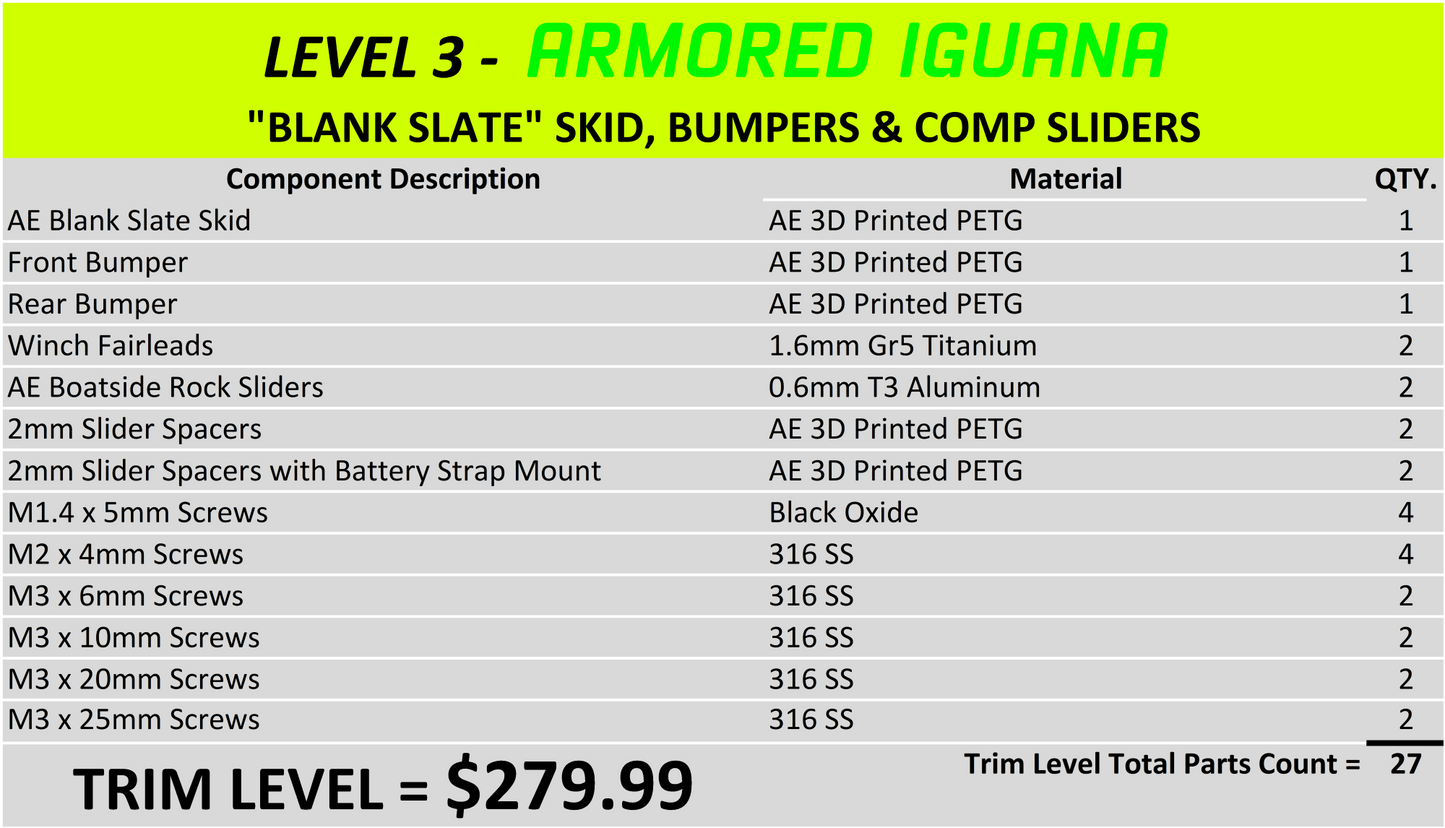

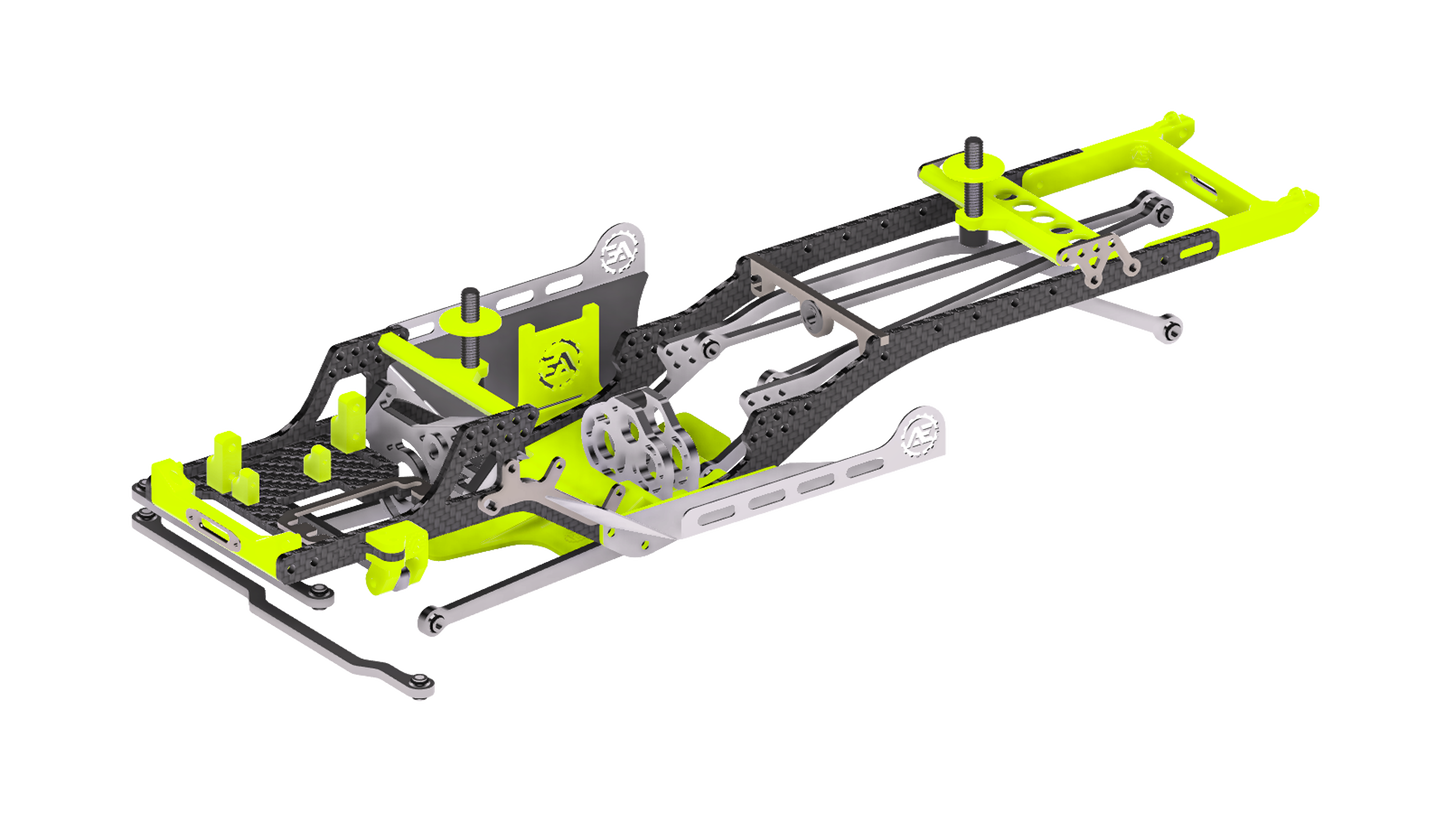

LEVEL 3 - ARMORED IGUANA

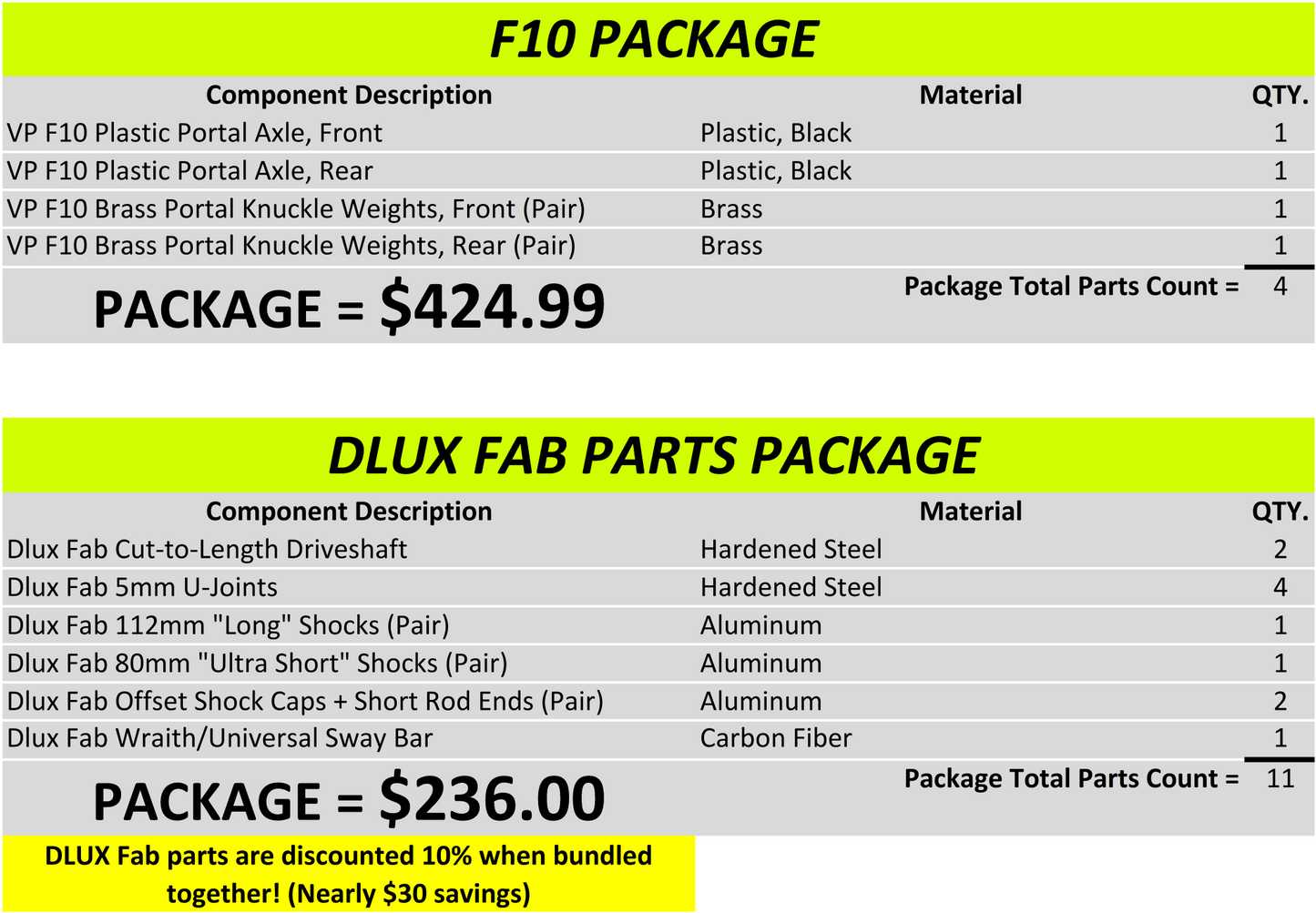

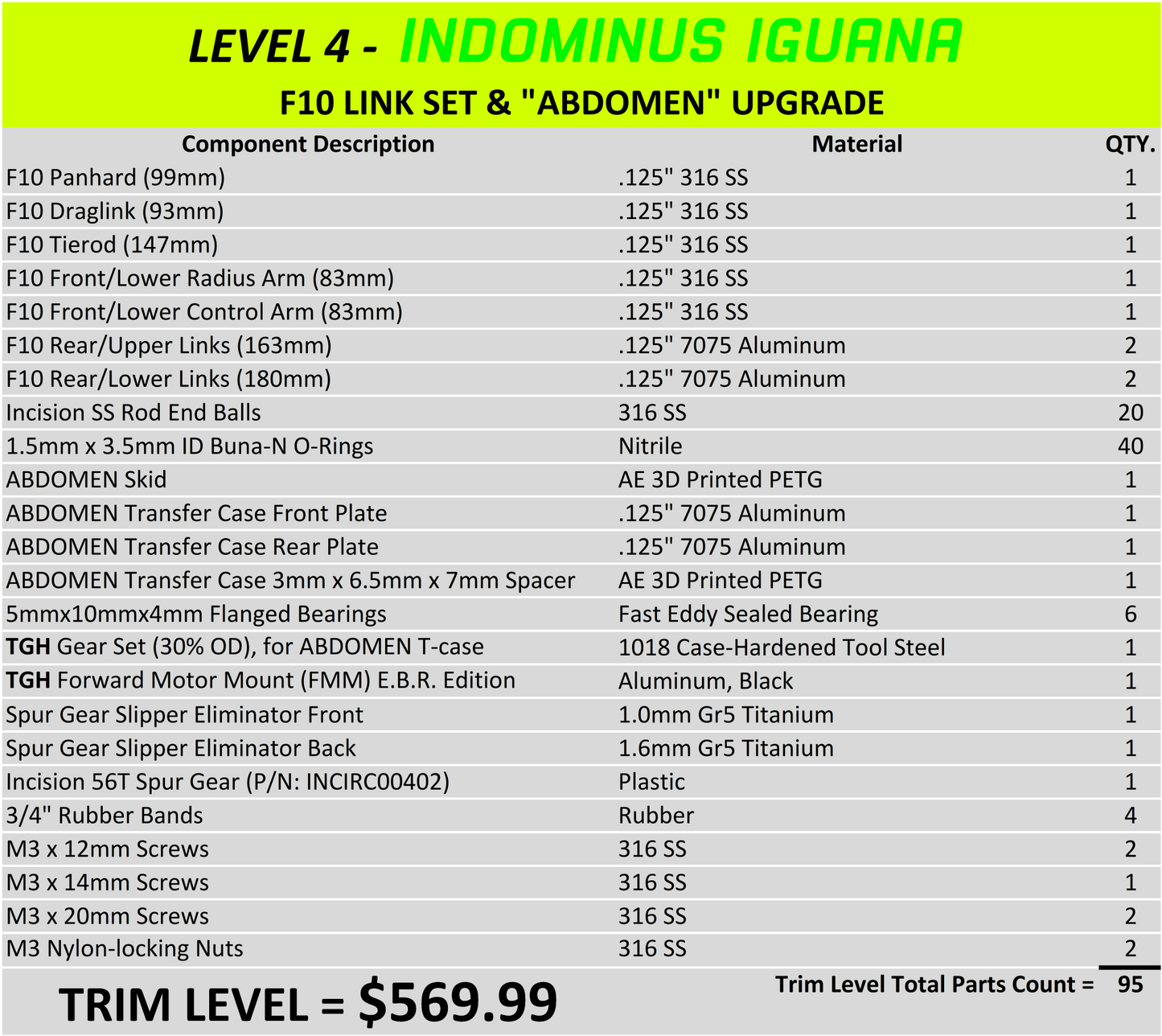

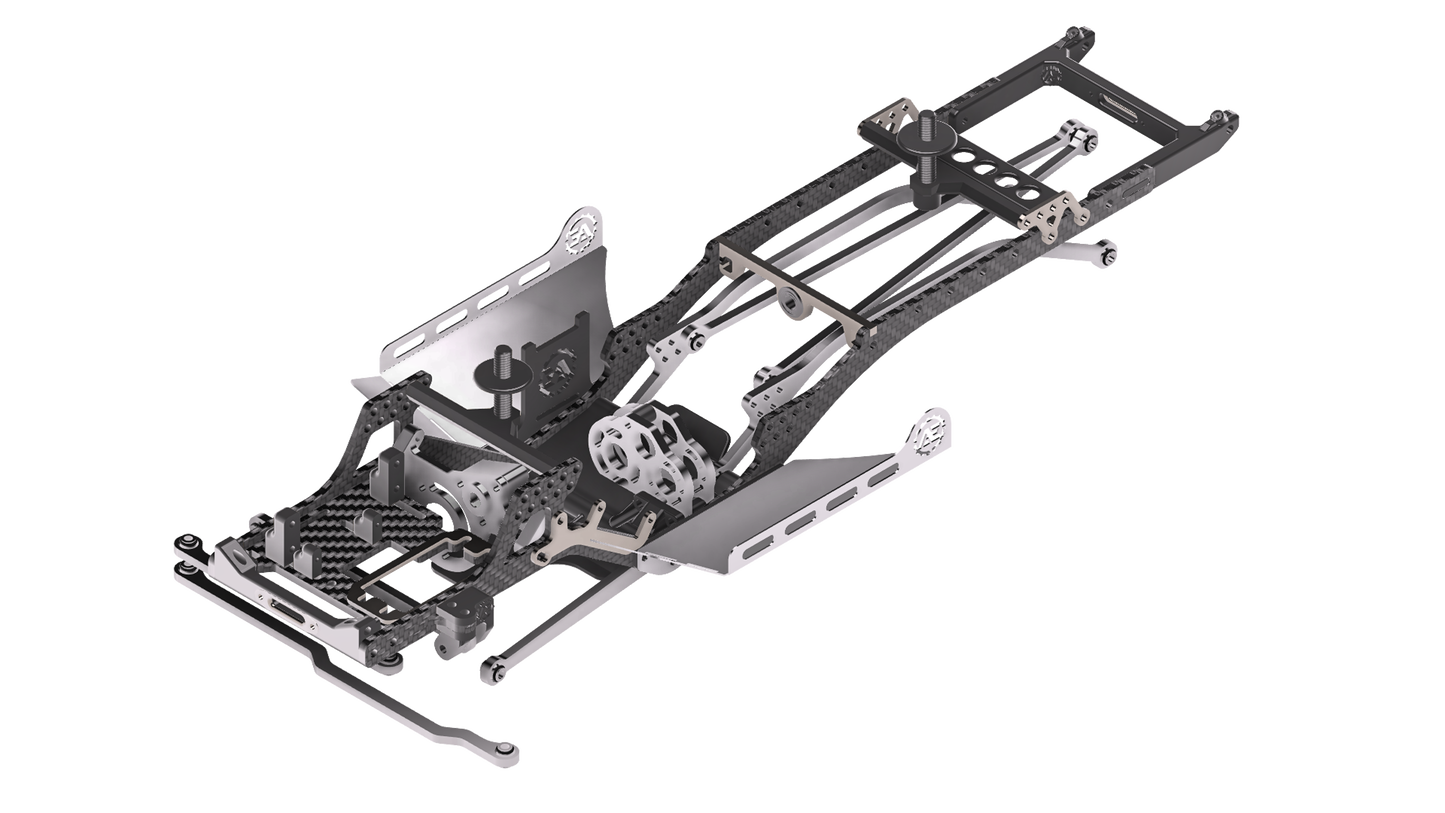

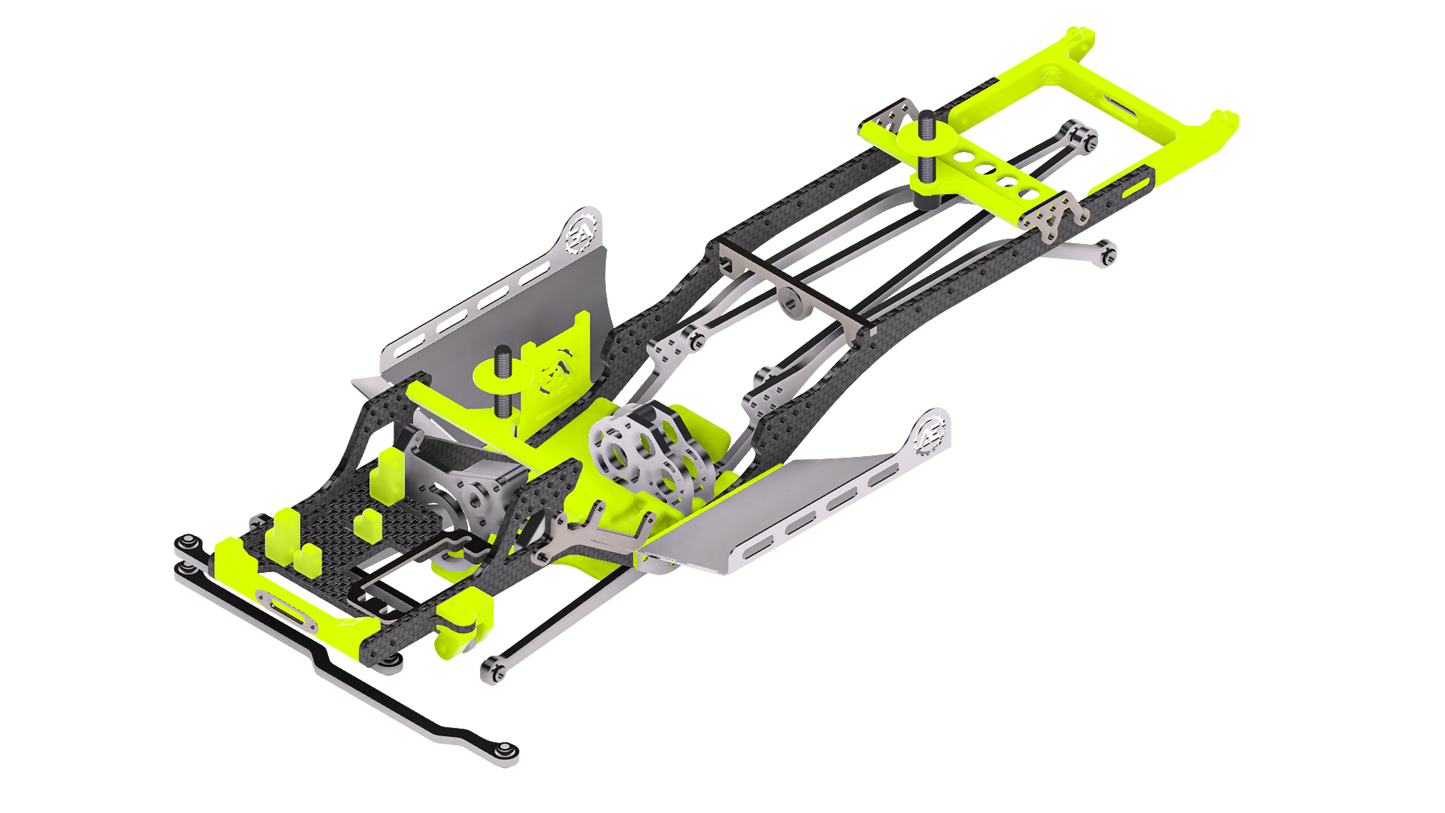

LEVEL 4 - INDOMINUS IGUANA [WITH DLUX PACKAGE]
