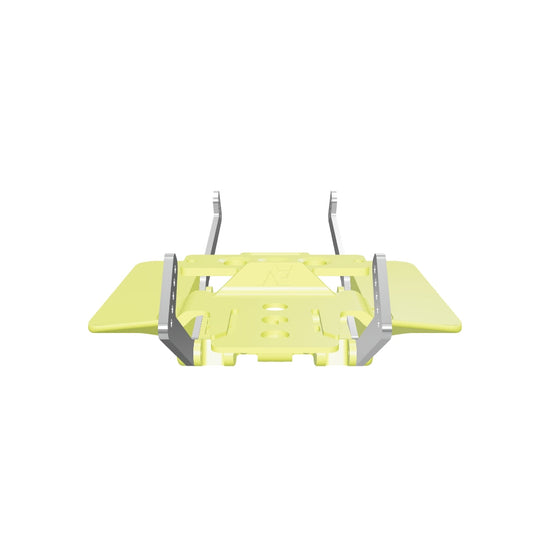

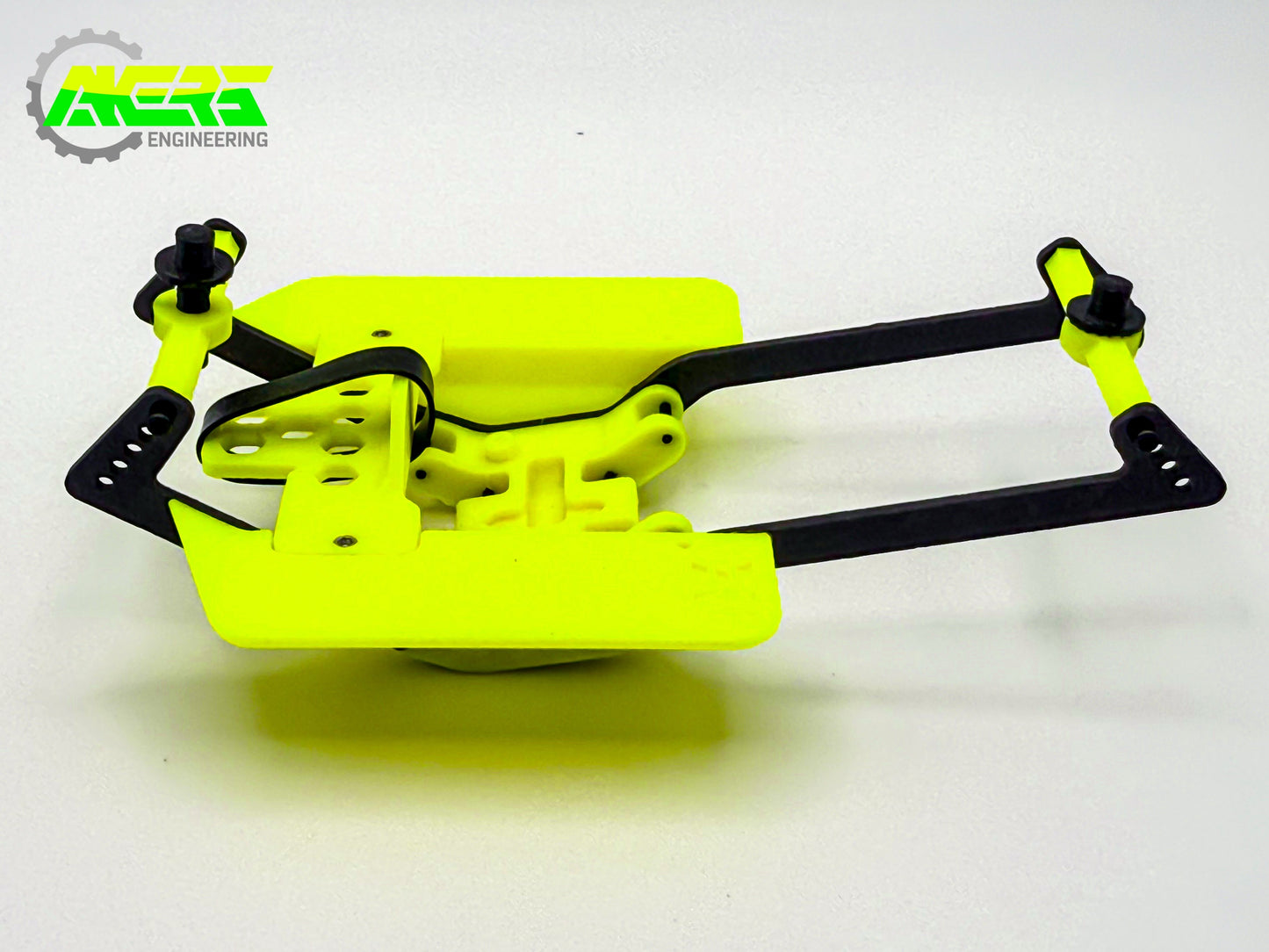

GECKO24 V2

INNOVATION THROUGH EVOLUTION

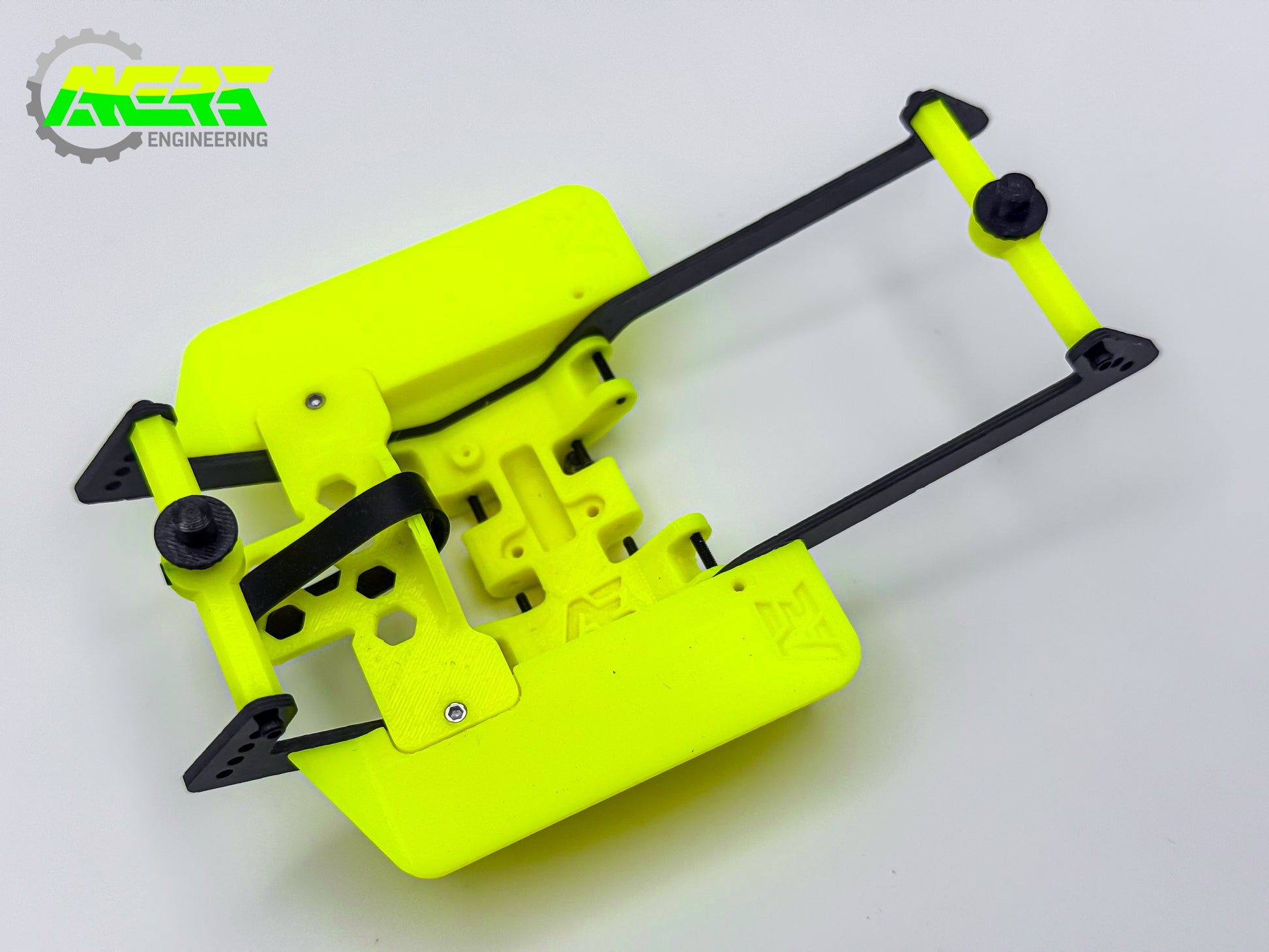

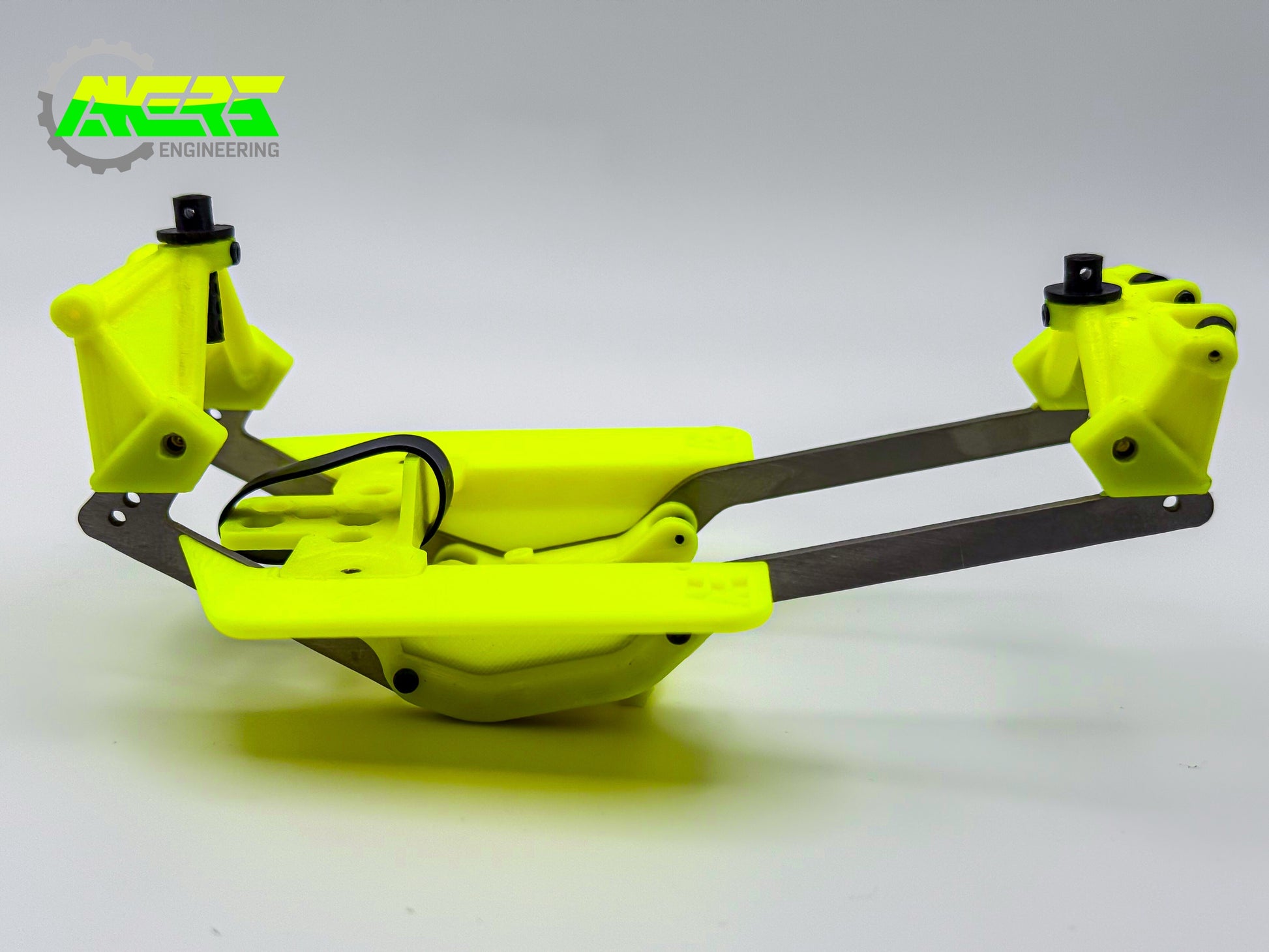

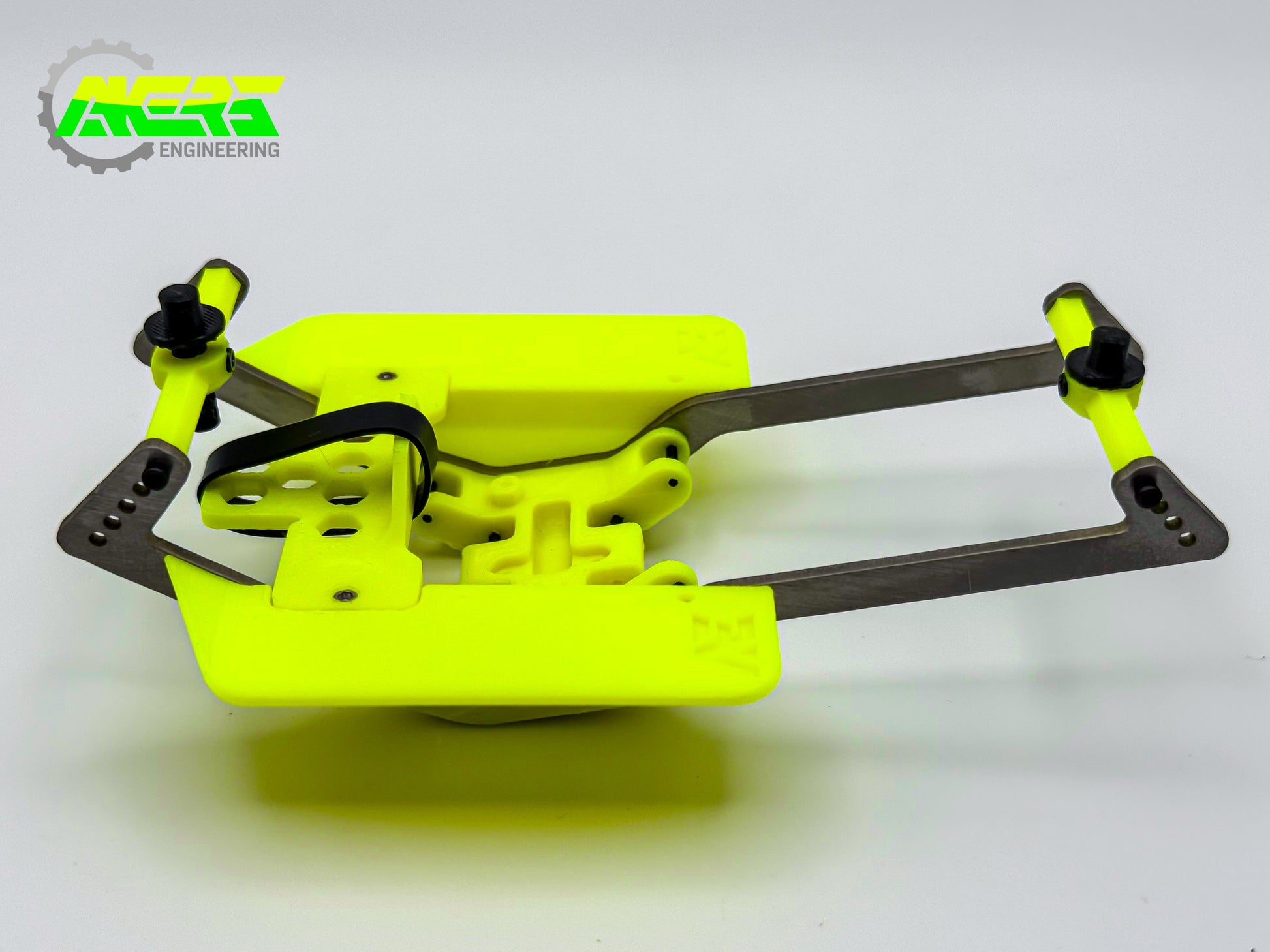

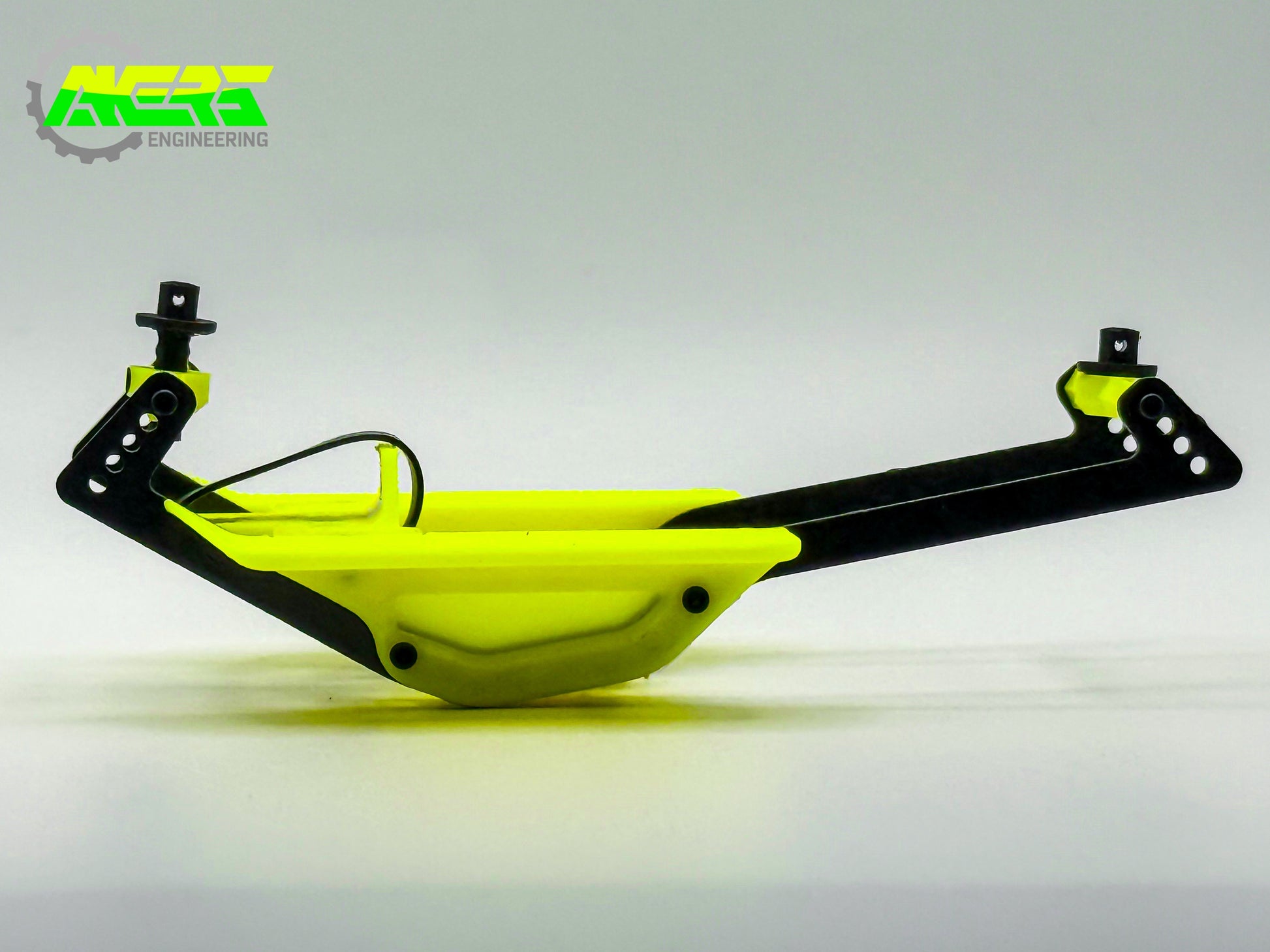

Now presenting the next step in the glorious evolution of the GECKO24 SCX24 LCG Chassis. Several improvements have been made in key areas to minimize overhangs and obstructions with other components while allowing for more customization. These refined chassis rails can be utilized with varying rear link lengths.

Competition-grade chassis aimed at maximizing key aspects of the SCX24. The front frame rails have been trimmed back even further to provide more servo clearance. The bottom-most area of the chassis has been drastically reduced to reduce hang-ups and improve breakover angle. The rails themselves have been optimized as well, smaller & stronger compared to the previous version.

Key Features:

• LOA = 113mm (Stock is approx. 171mm)

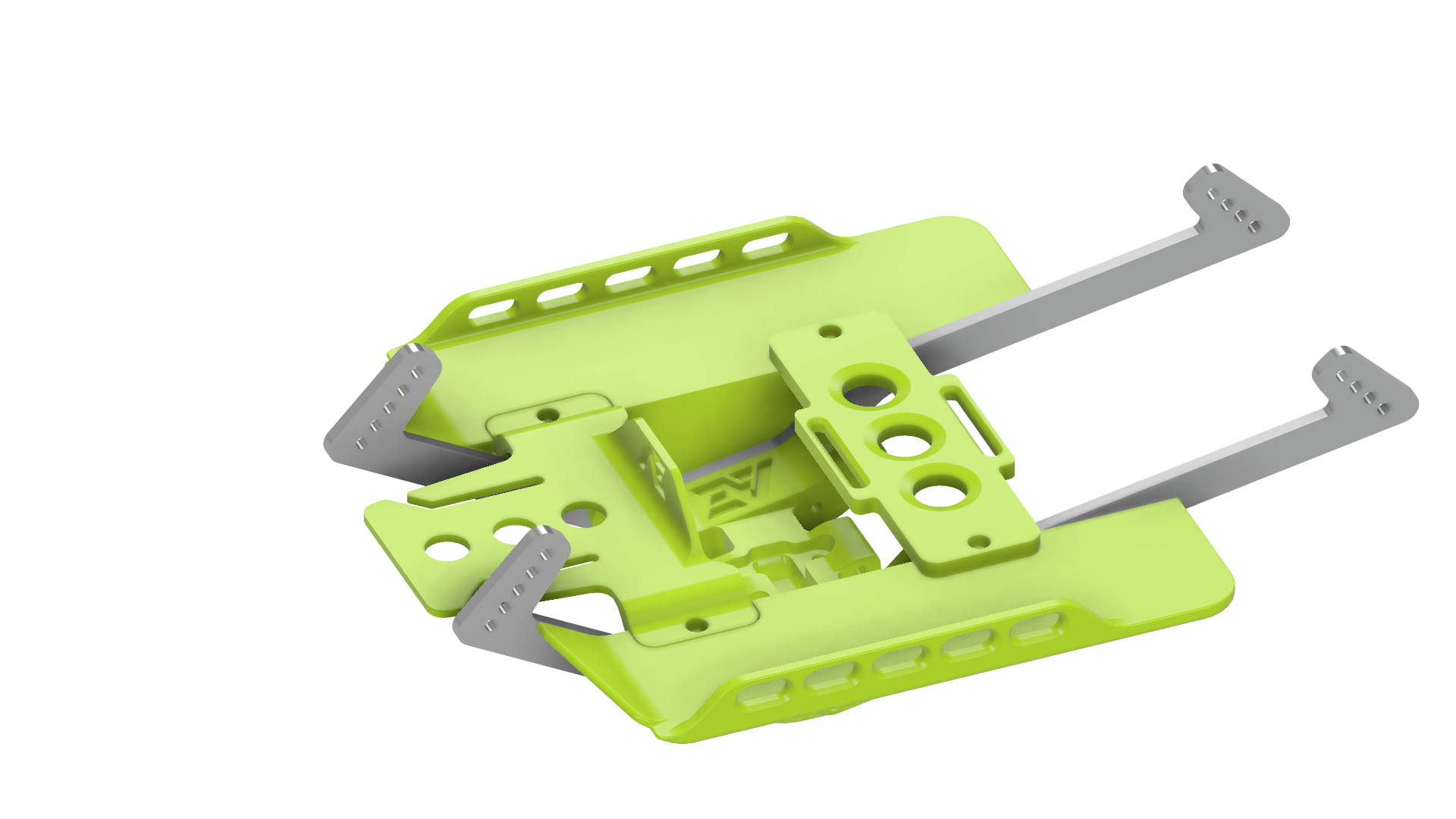

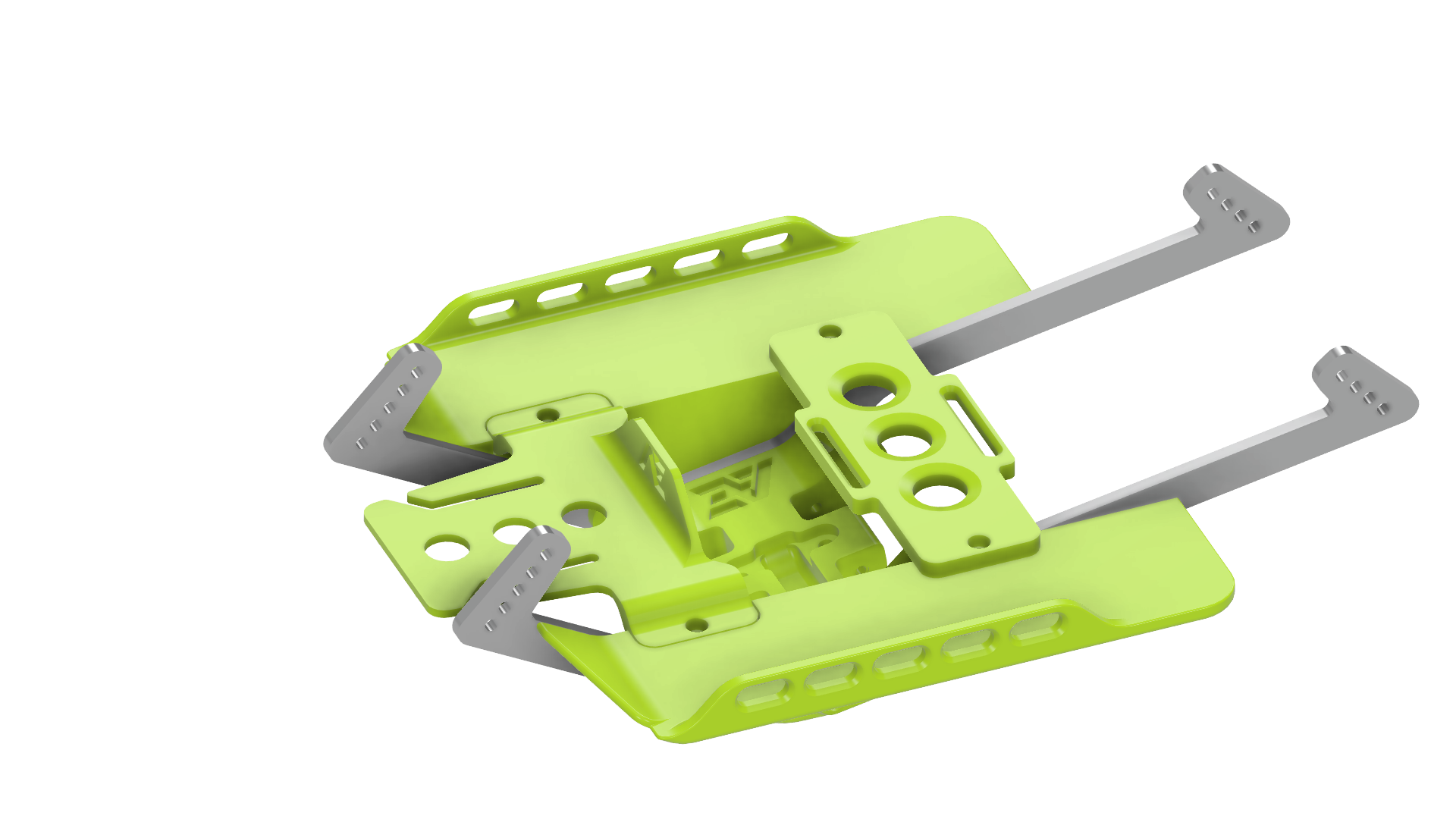

• Exclusive "ABDOMEN" Skid Plate
• better forward weight bias (skid approx. 8mm further forward than stock)
• 10° angled skid

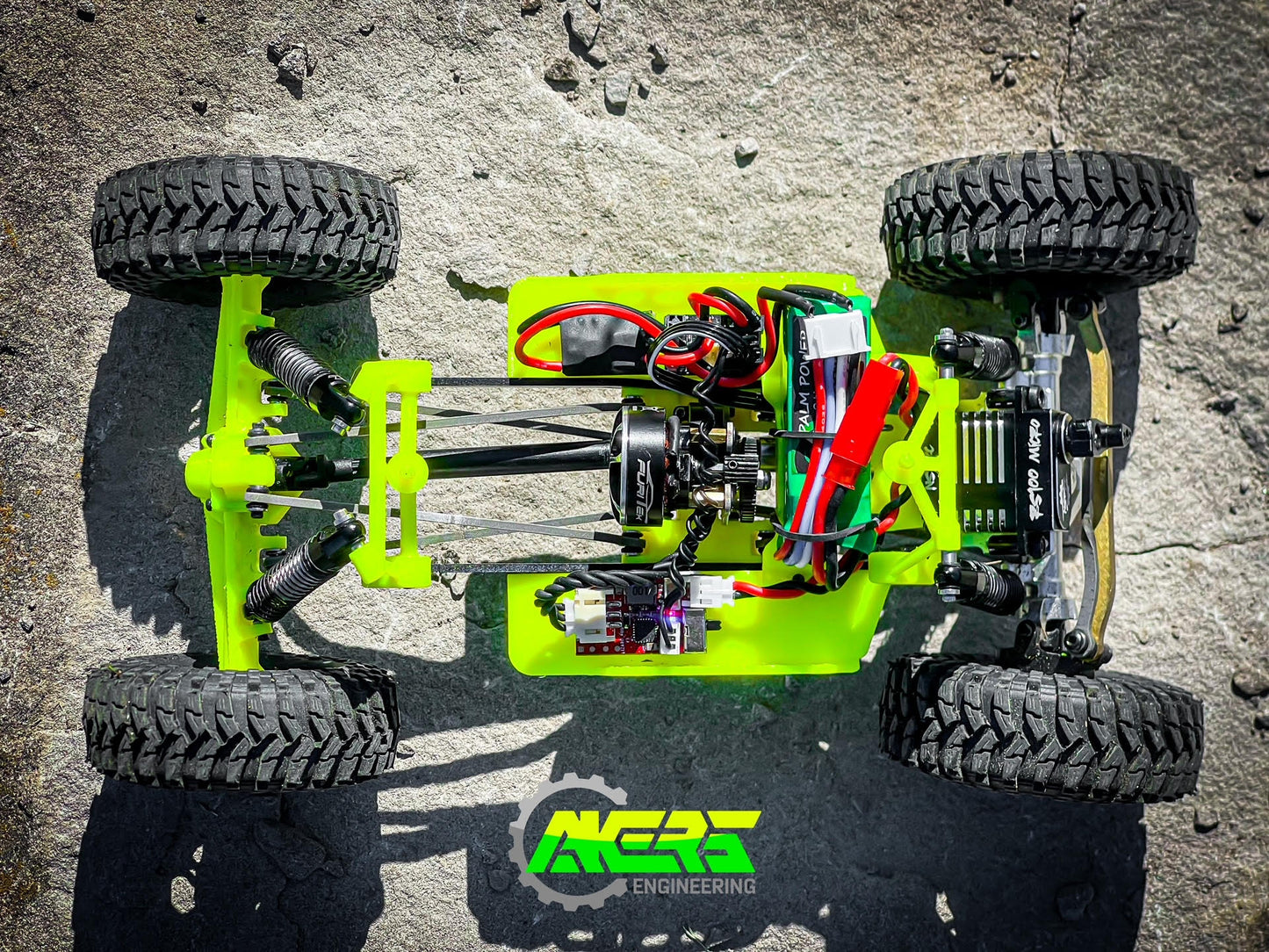

• Meticulously designed electronics trays for the lowest CoG and best clearance
• Adjustable shock tuning positions

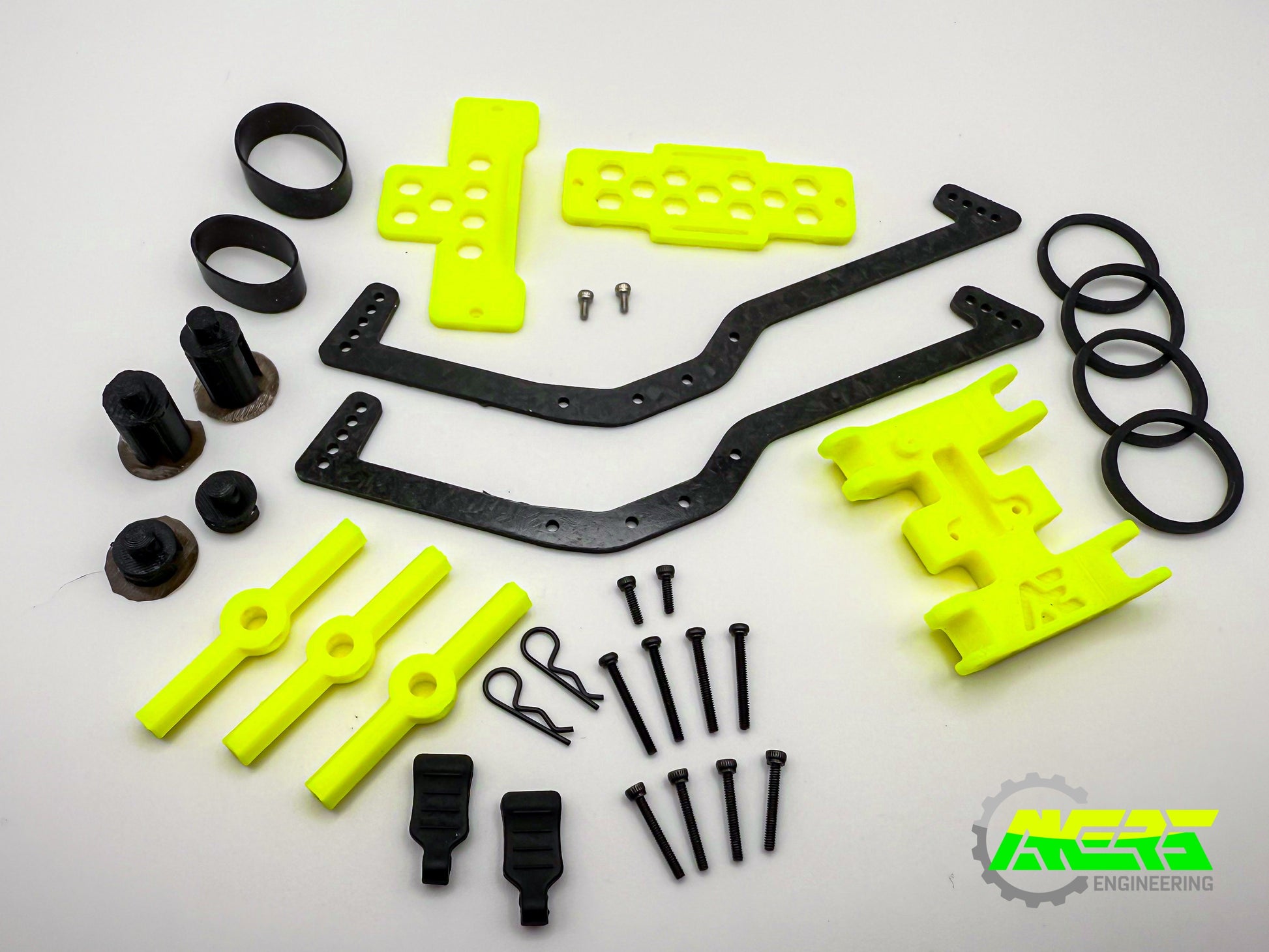

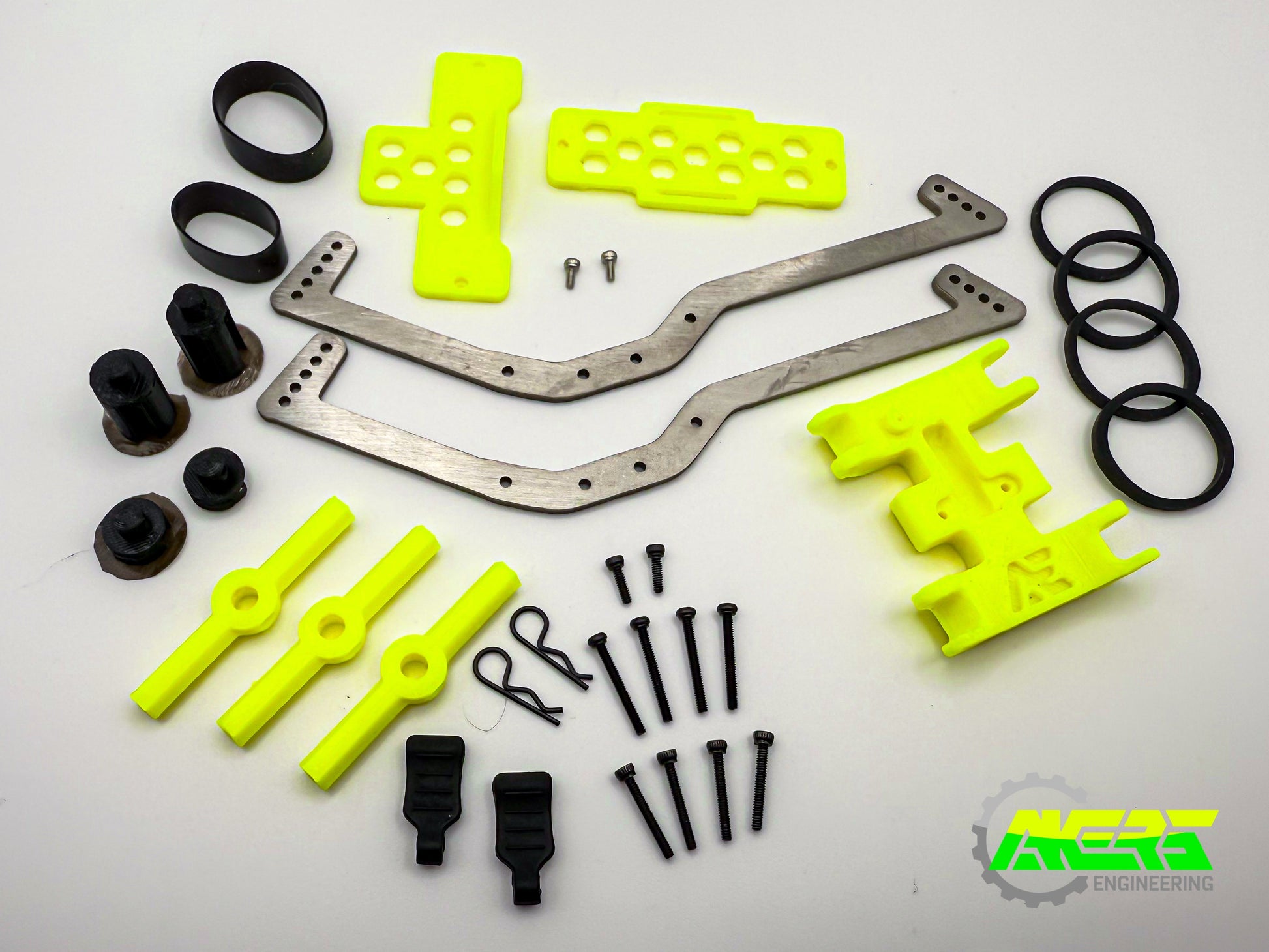

Includes:

• Qty. 2, frame rails
• Qty. 2, Crossmembers (1 large / 1 small)

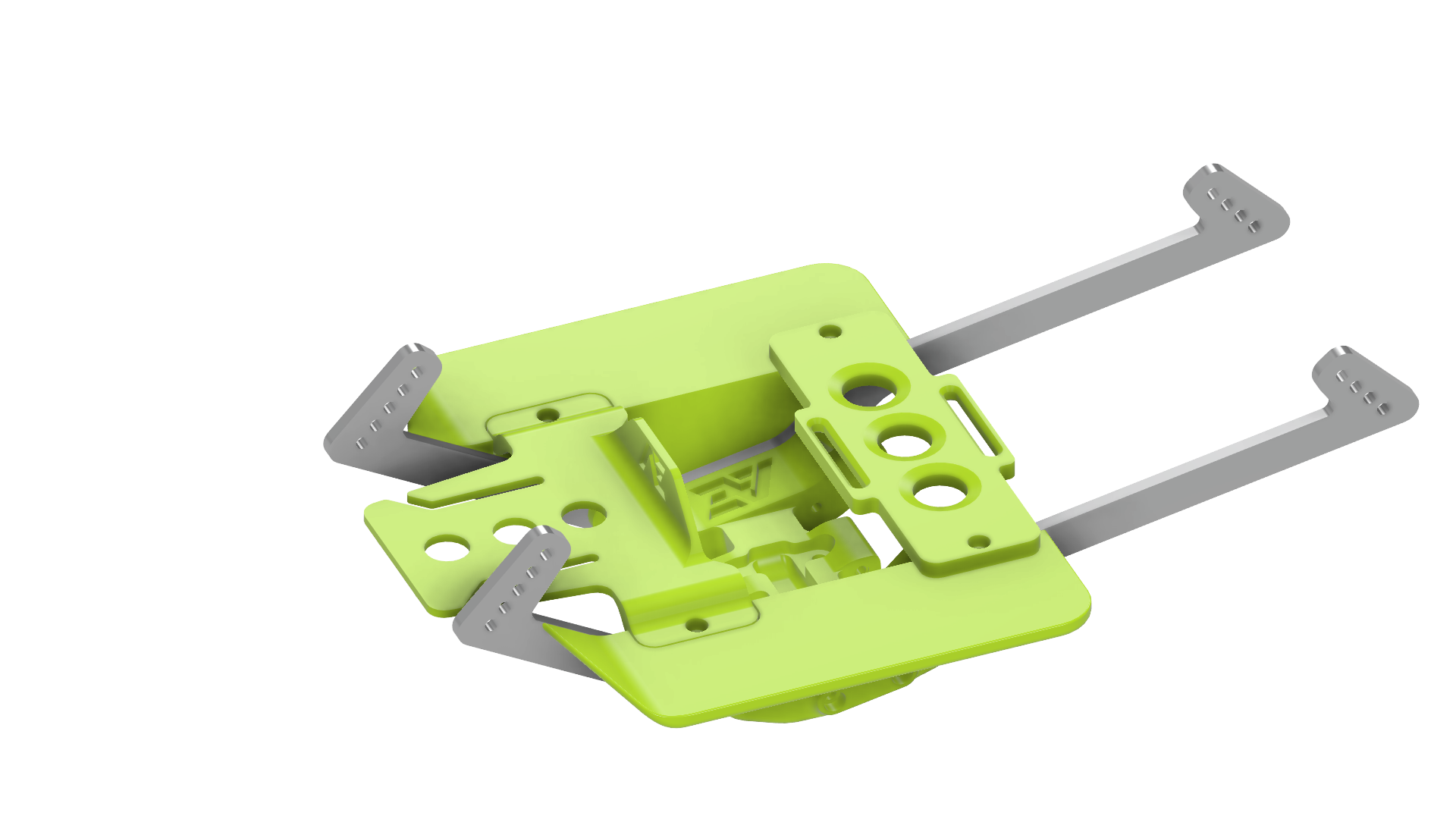

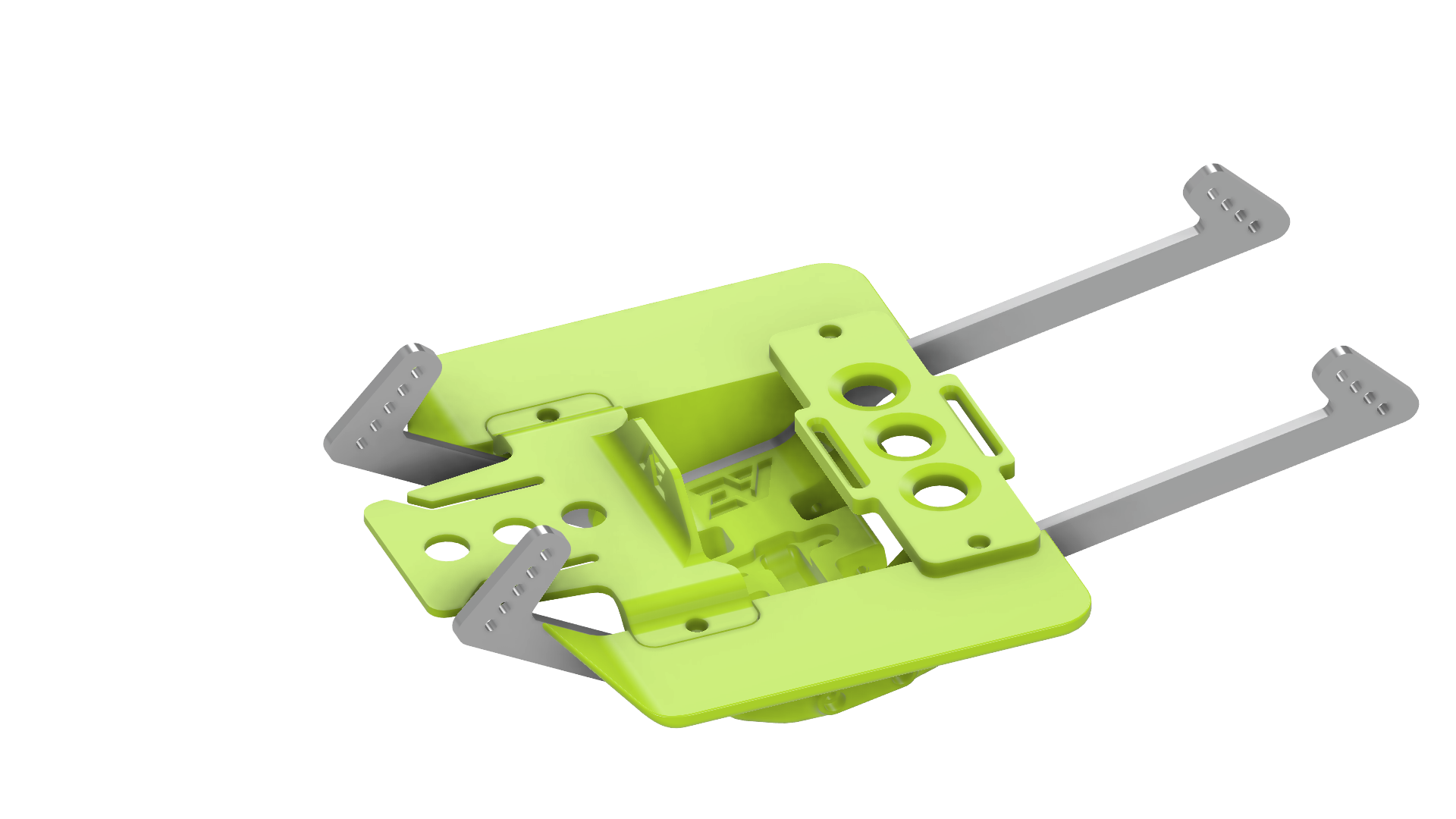

• Qty. 1, Choice of GECKO24-specific ABDOMEN Skid Plate

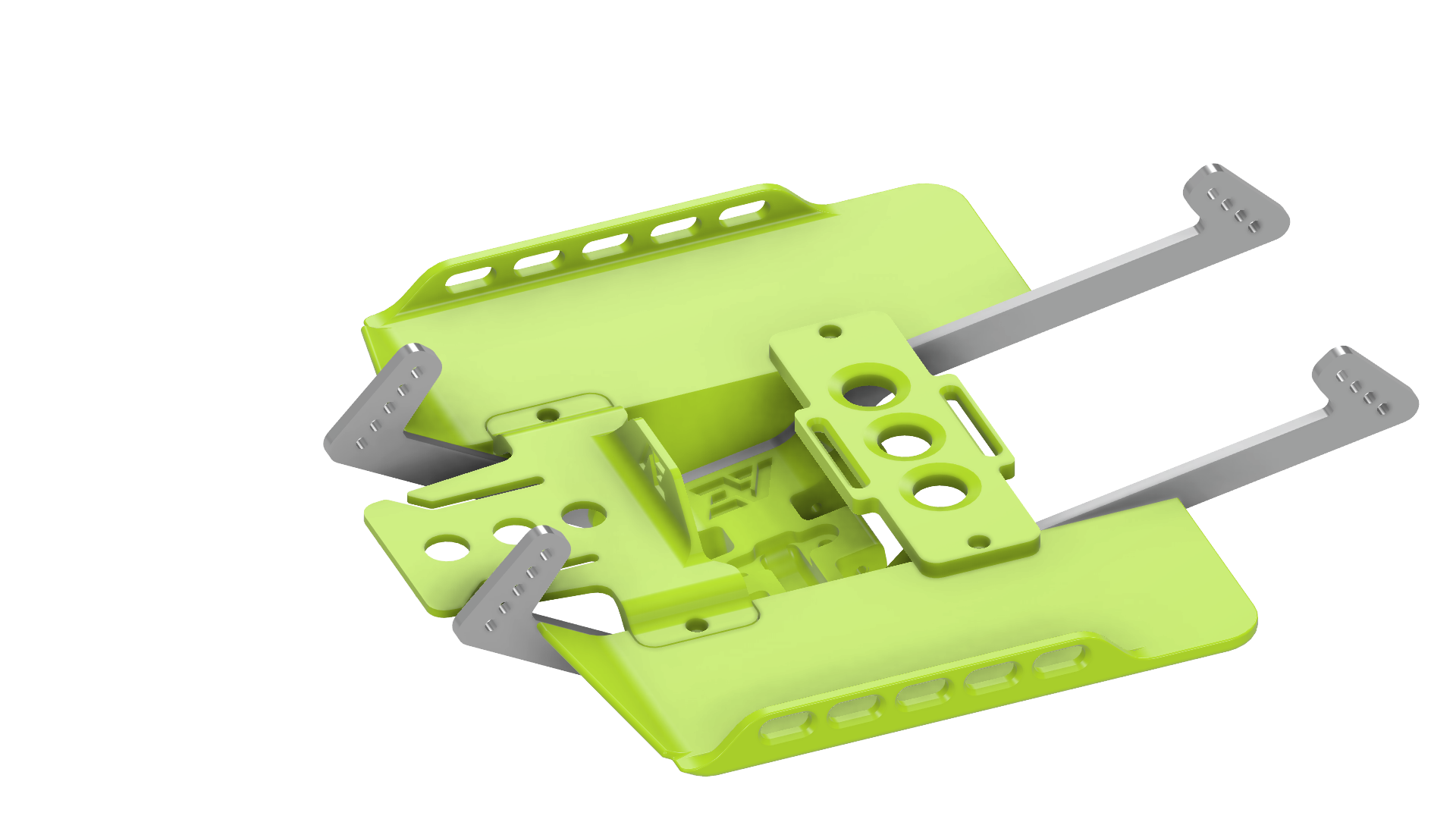

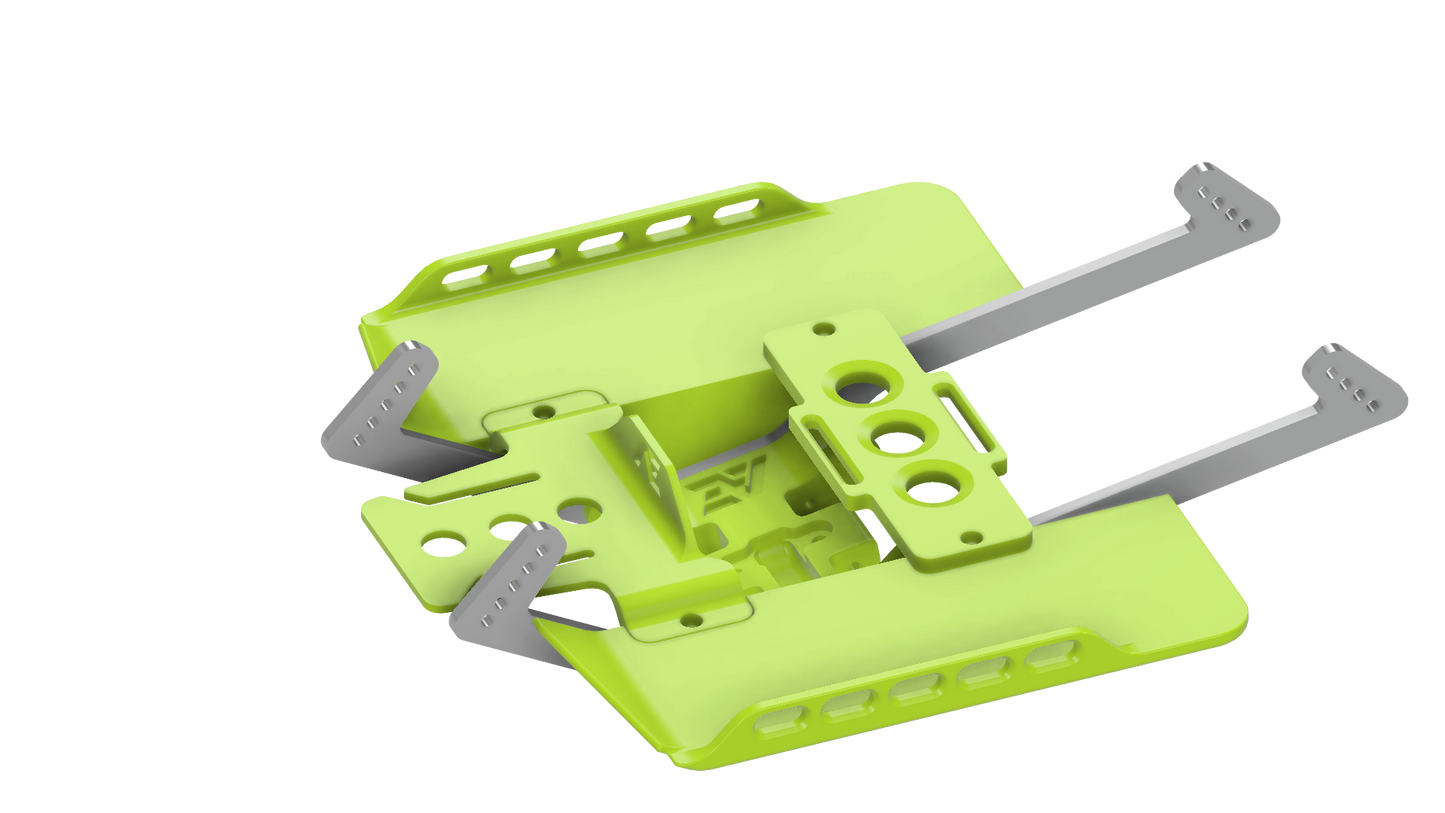

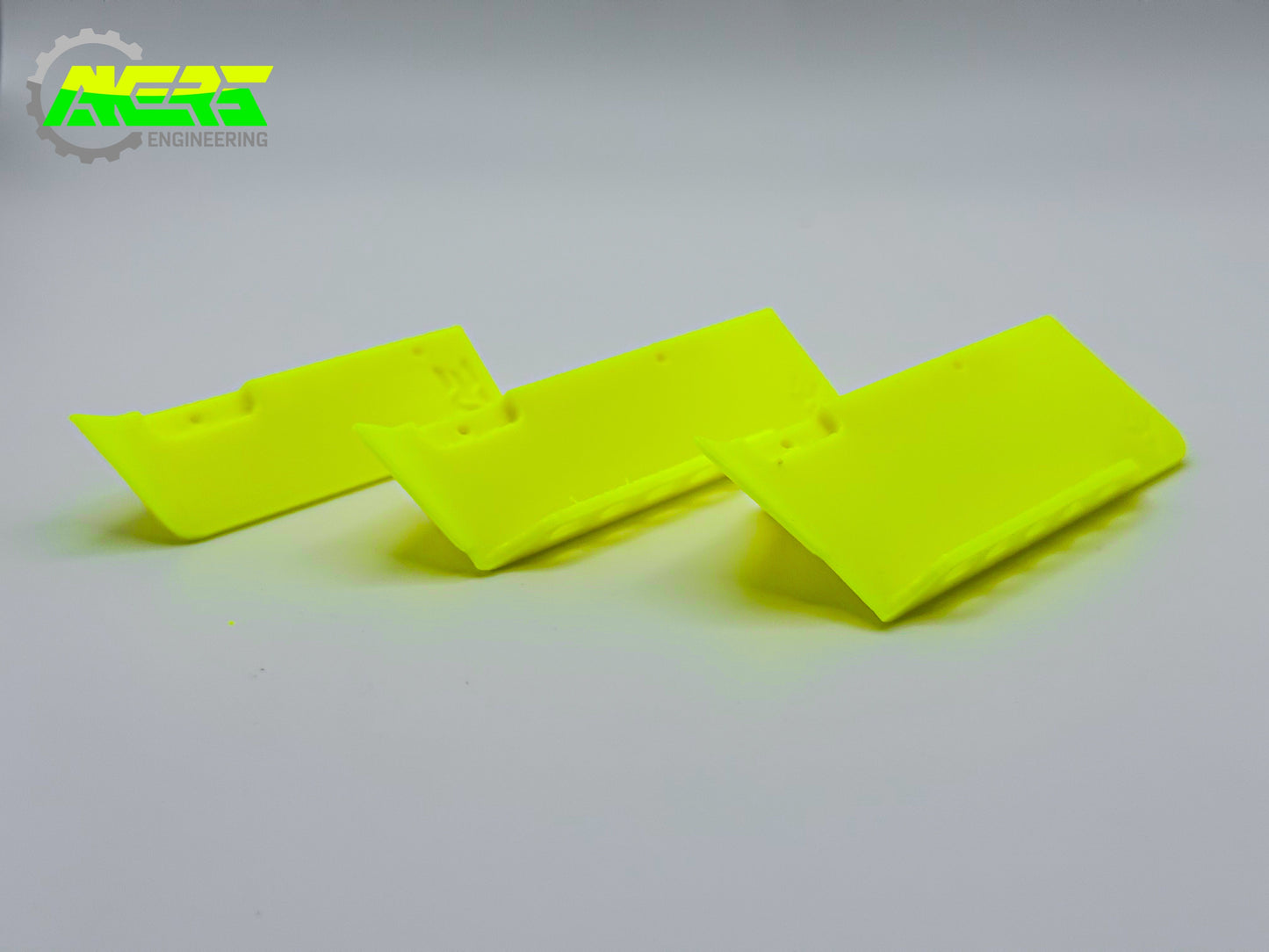

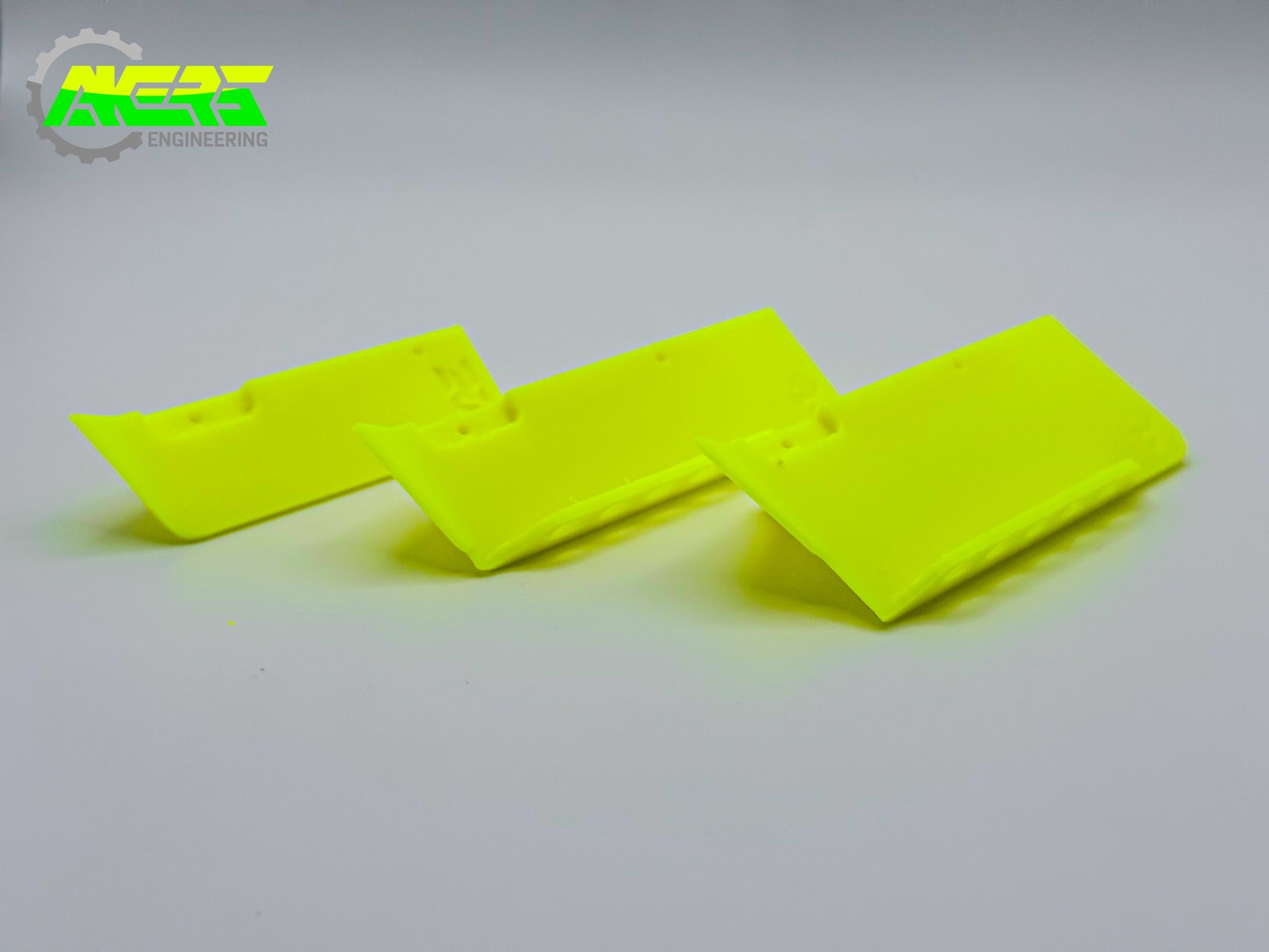

• Qty. 2, Choice of Rock Sliders (Nano, 75mm Wide, 88mm Wide)
• Qty. 8, M1.4 x 10mm Socket Head Screws
• Qty. 4, M1.4 x 8mm Socket Head Screws
• Qty. 2, M1.4 x 5mm Socket Head Screws
• Qty. 3, 35mm Hexagonal Strut

• Qty. 4, 1/2" black rubber bands
• Qty. 4, 3/4" black rubber bands
• Qty. 2, Micro Body Clips (with Shock Towers)

*All 3D printed parts are designed and manufactured by AE and utilize PETG filament. Some trimming of support material may be required by the recipient. I recommend a sharp hobby knife and/or quality micro side-cutters.

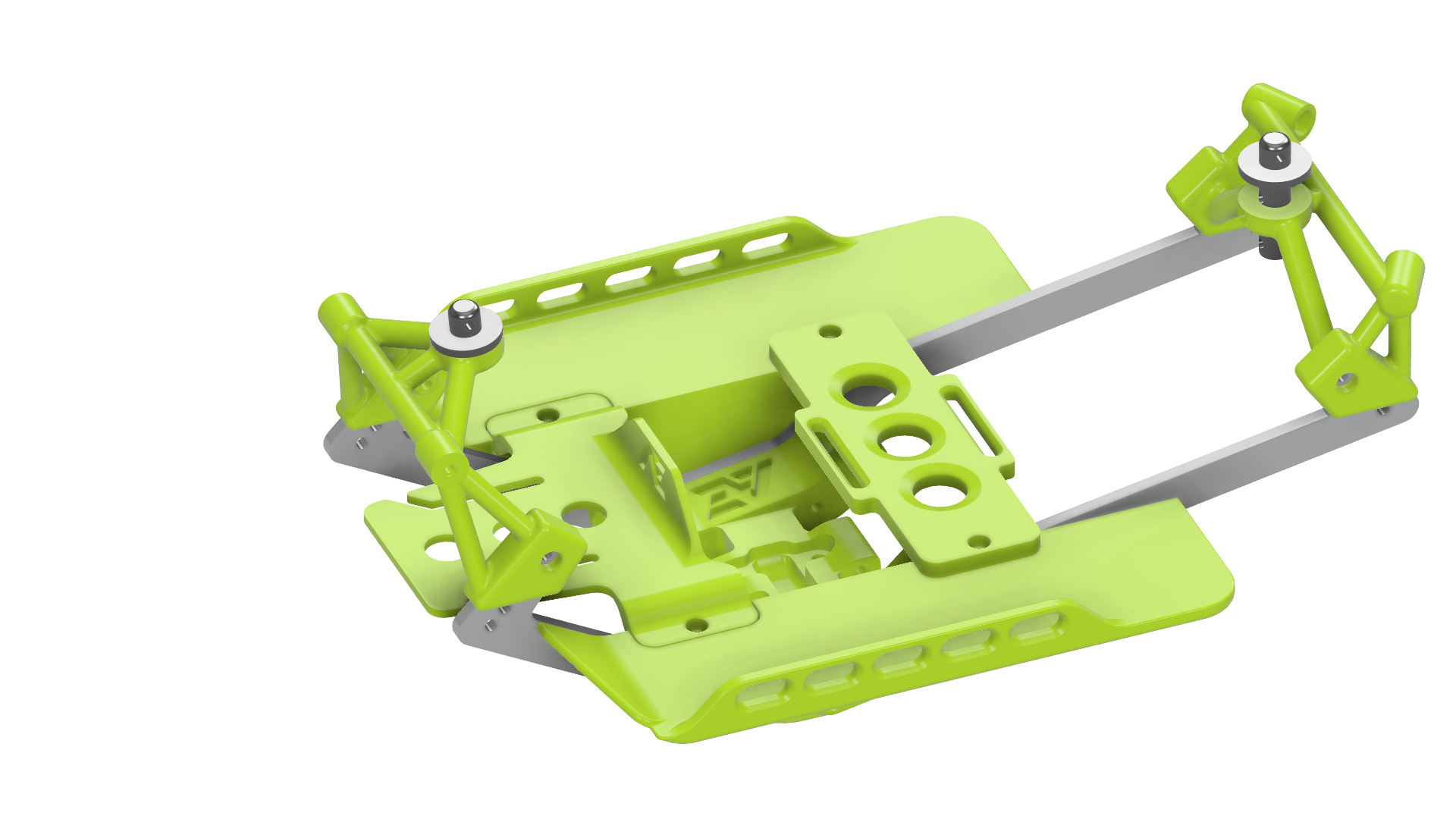

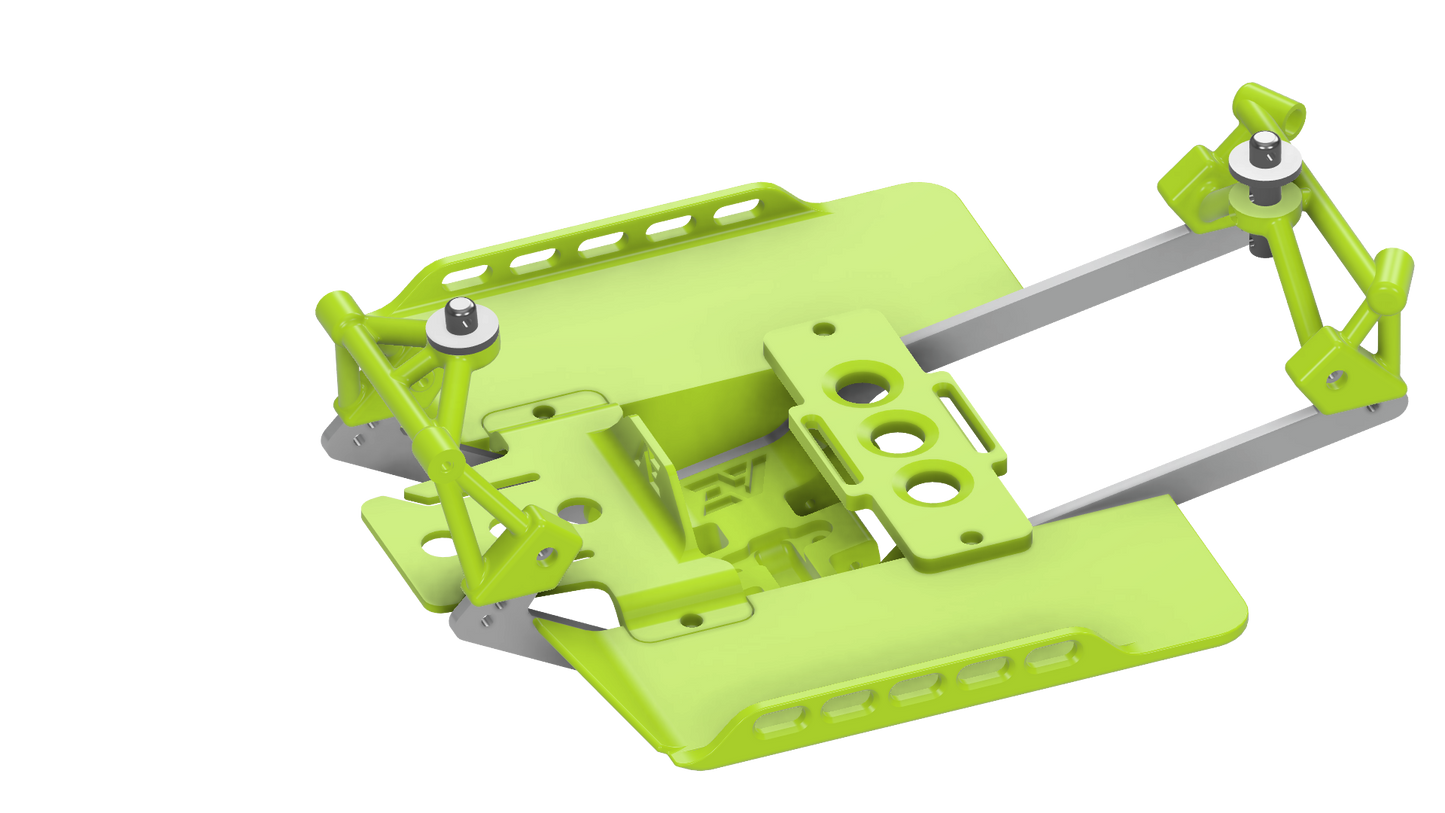

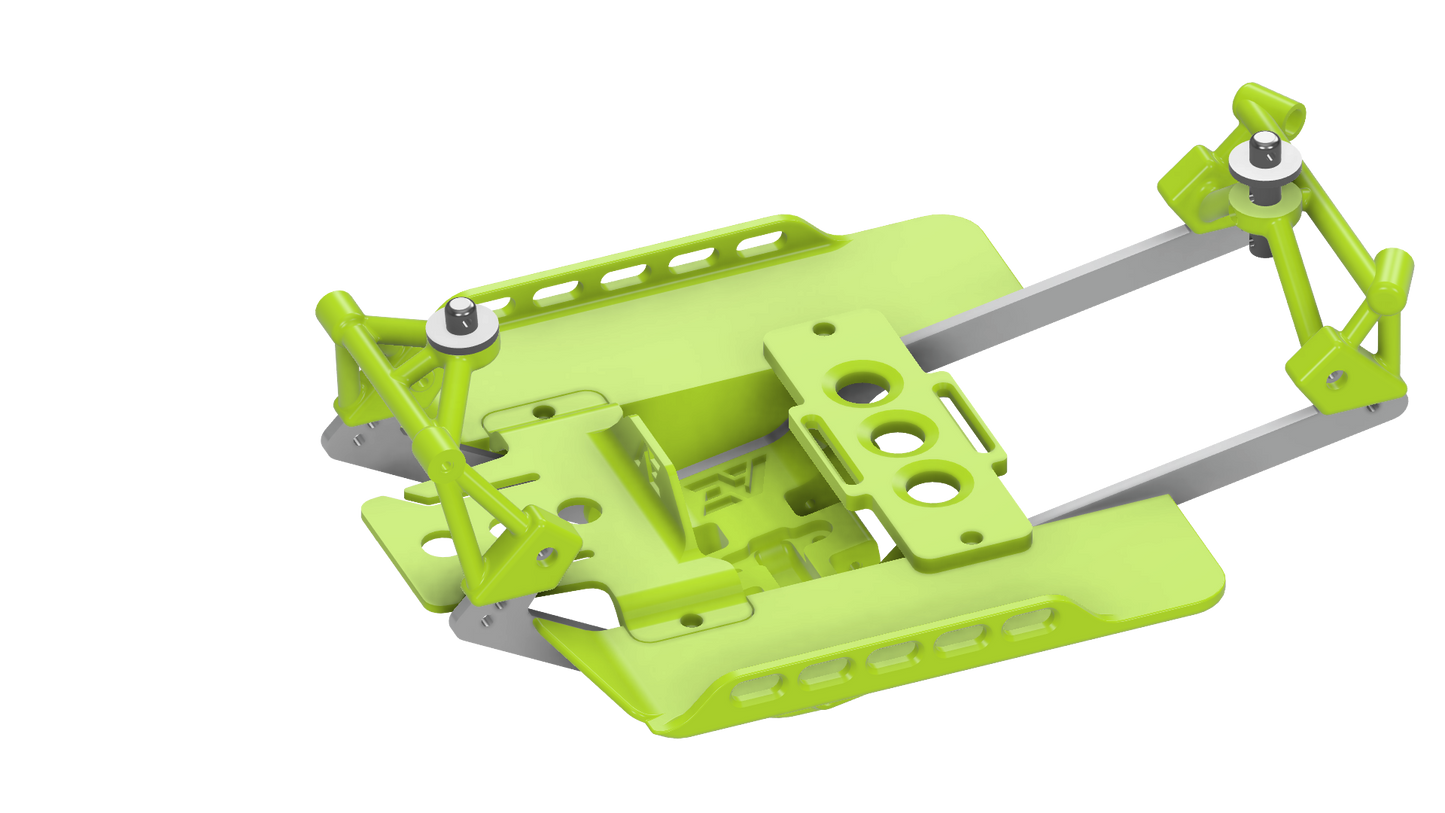

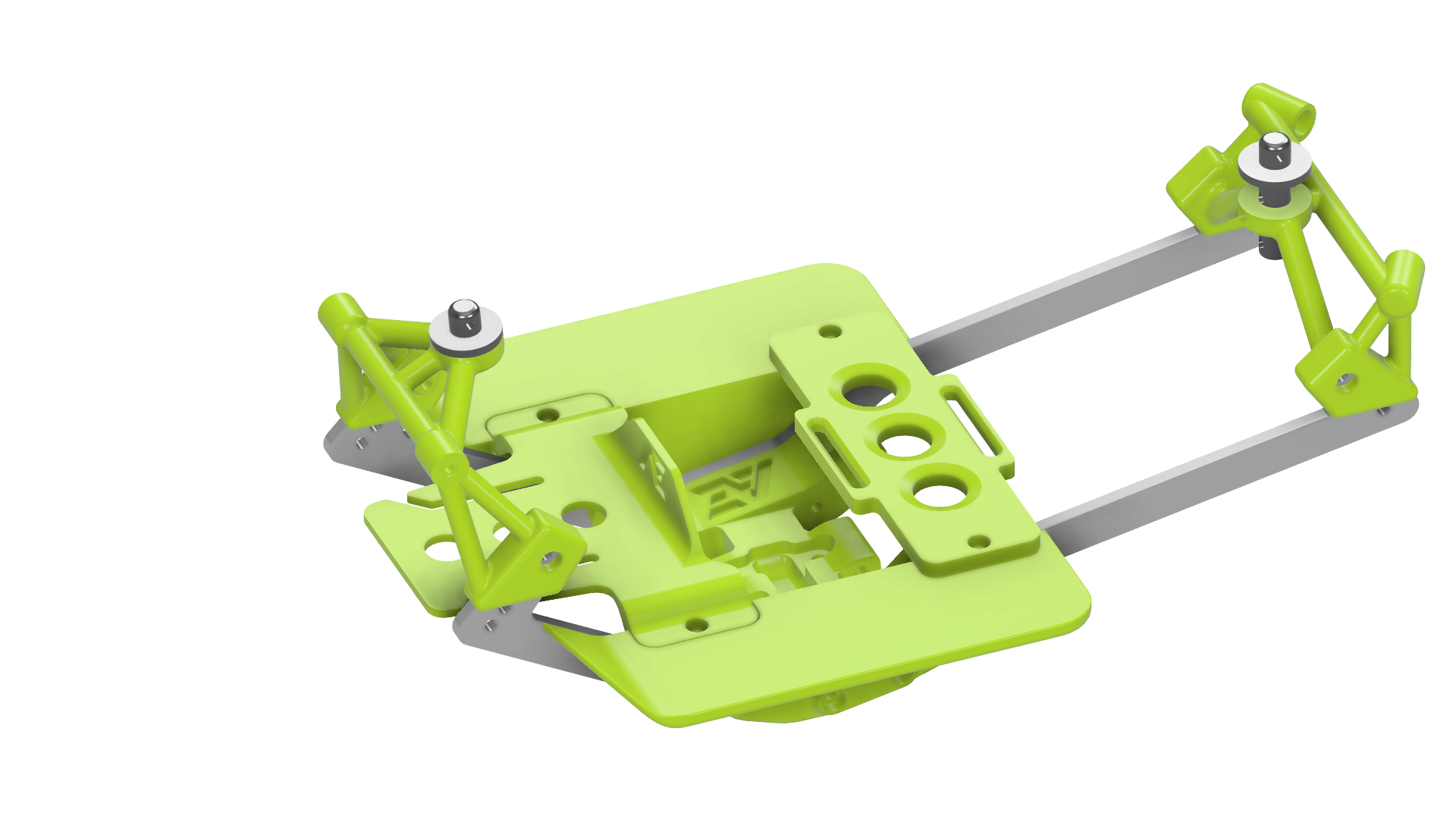

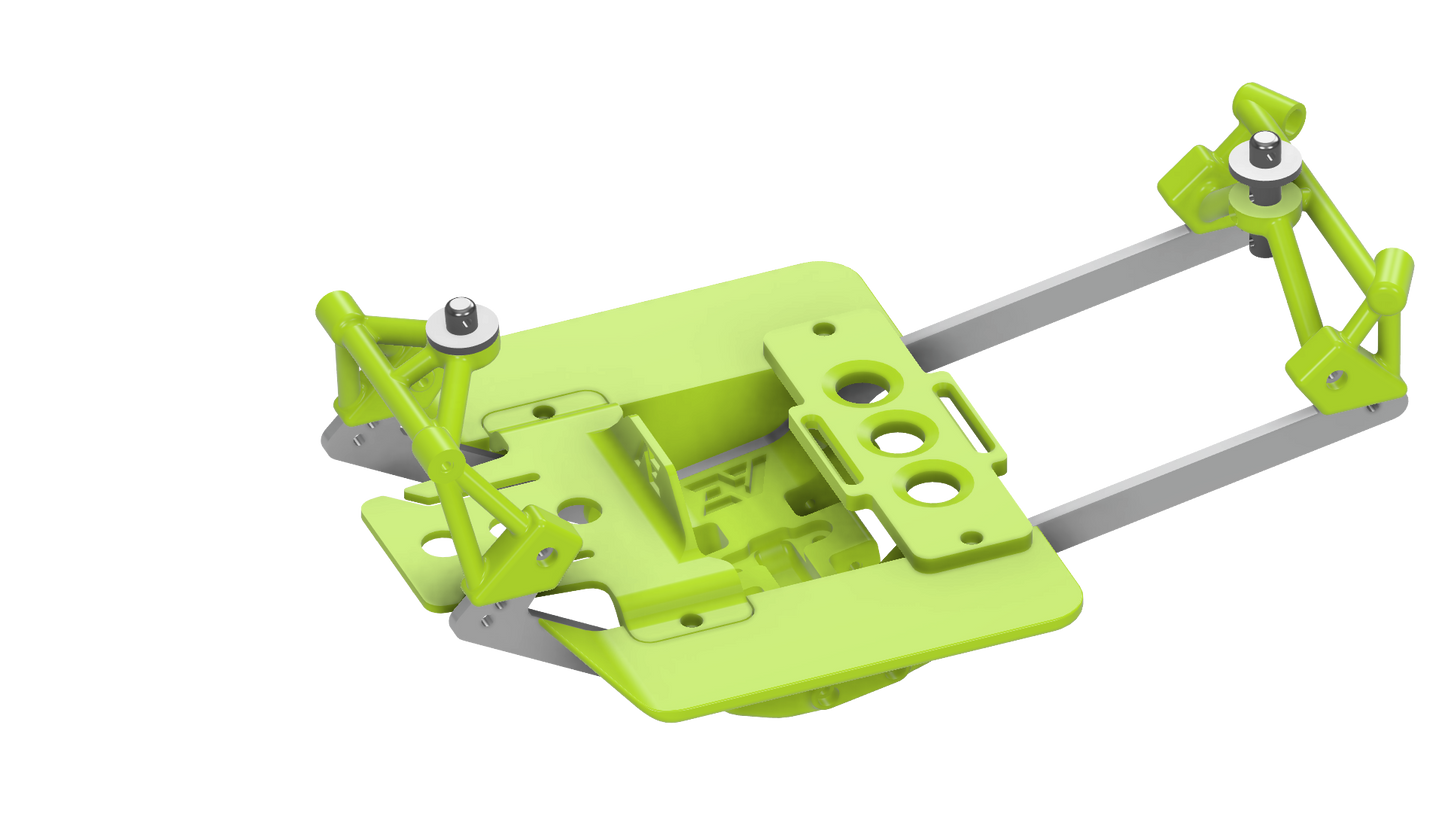

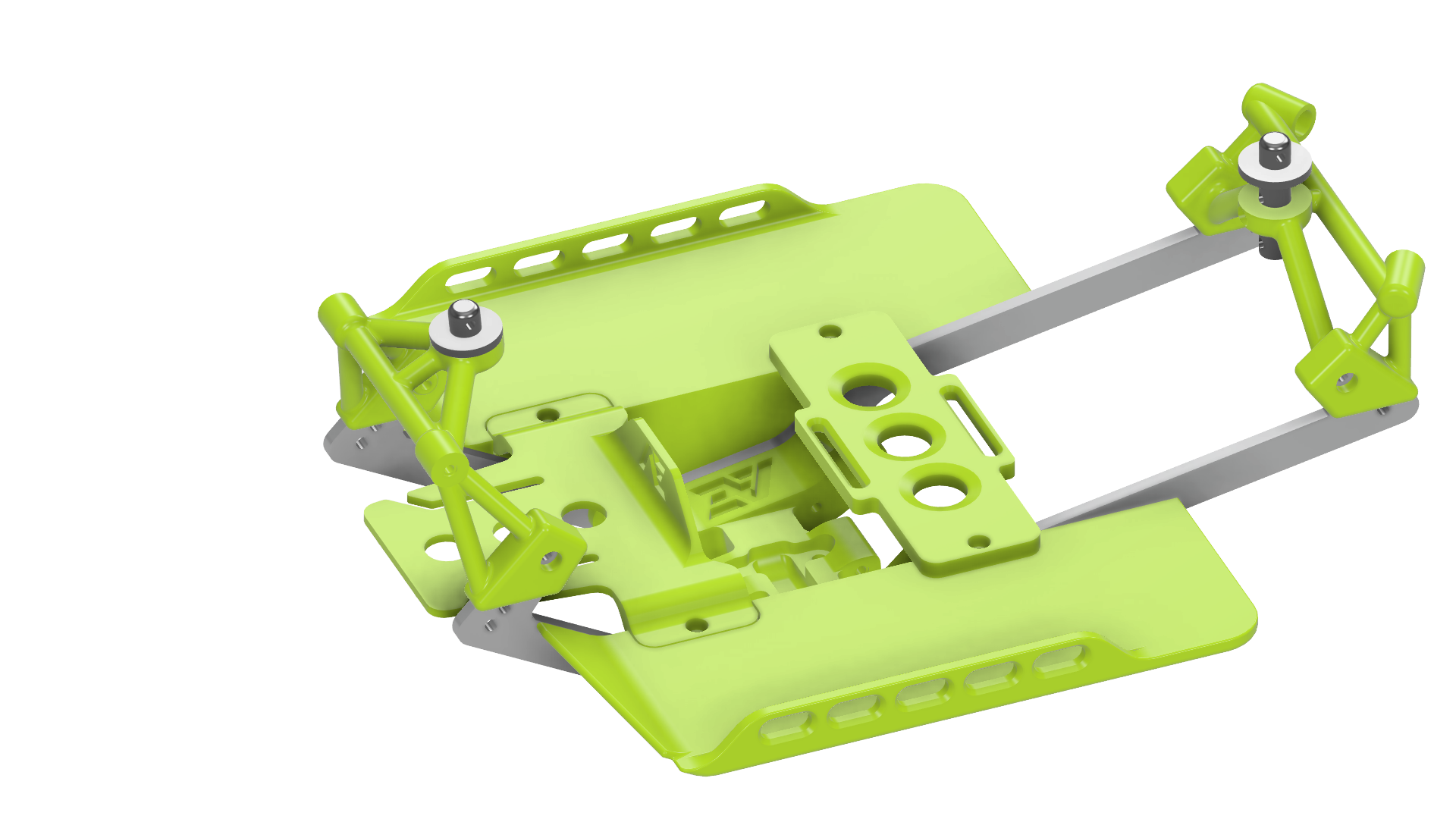

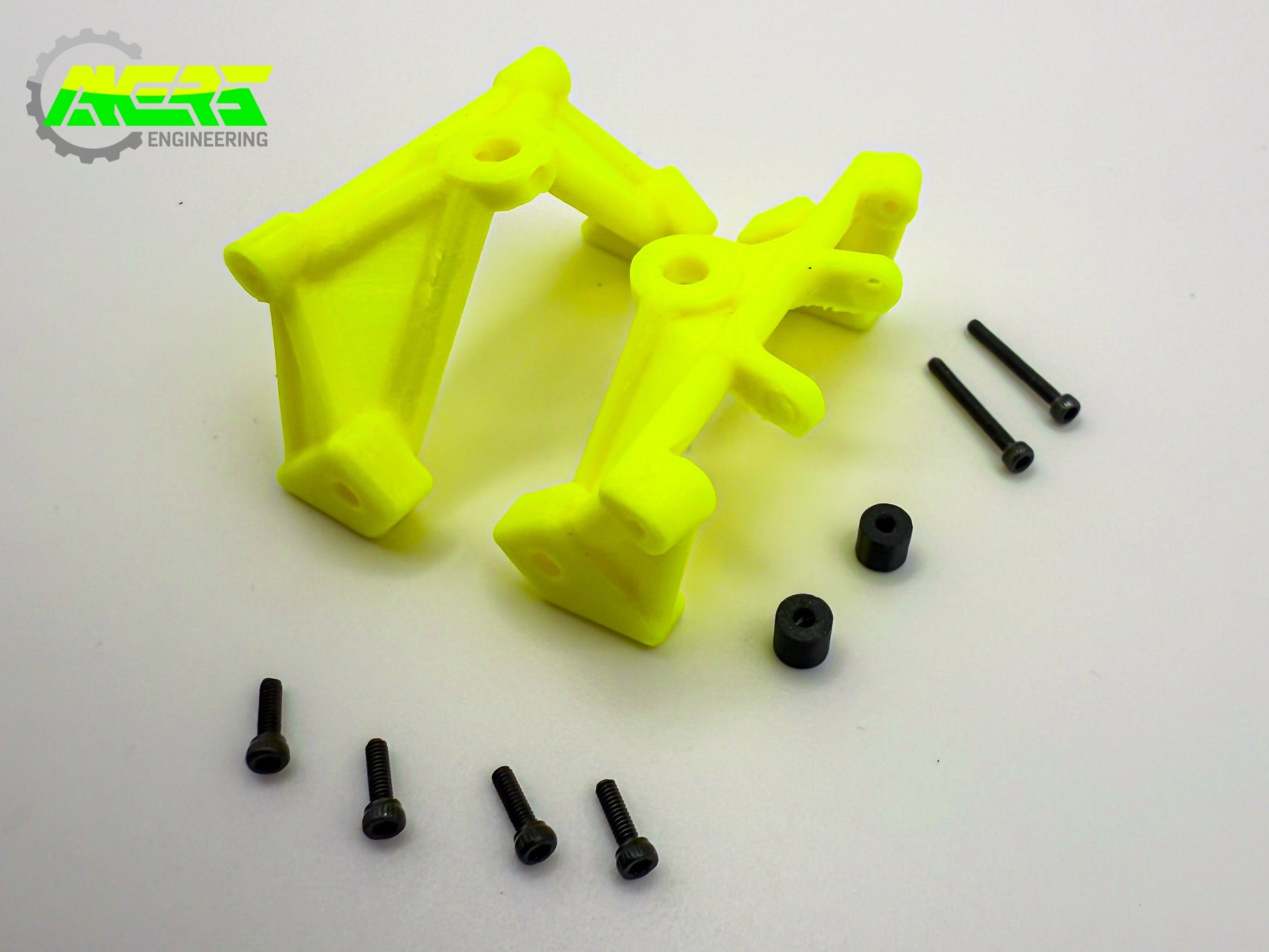

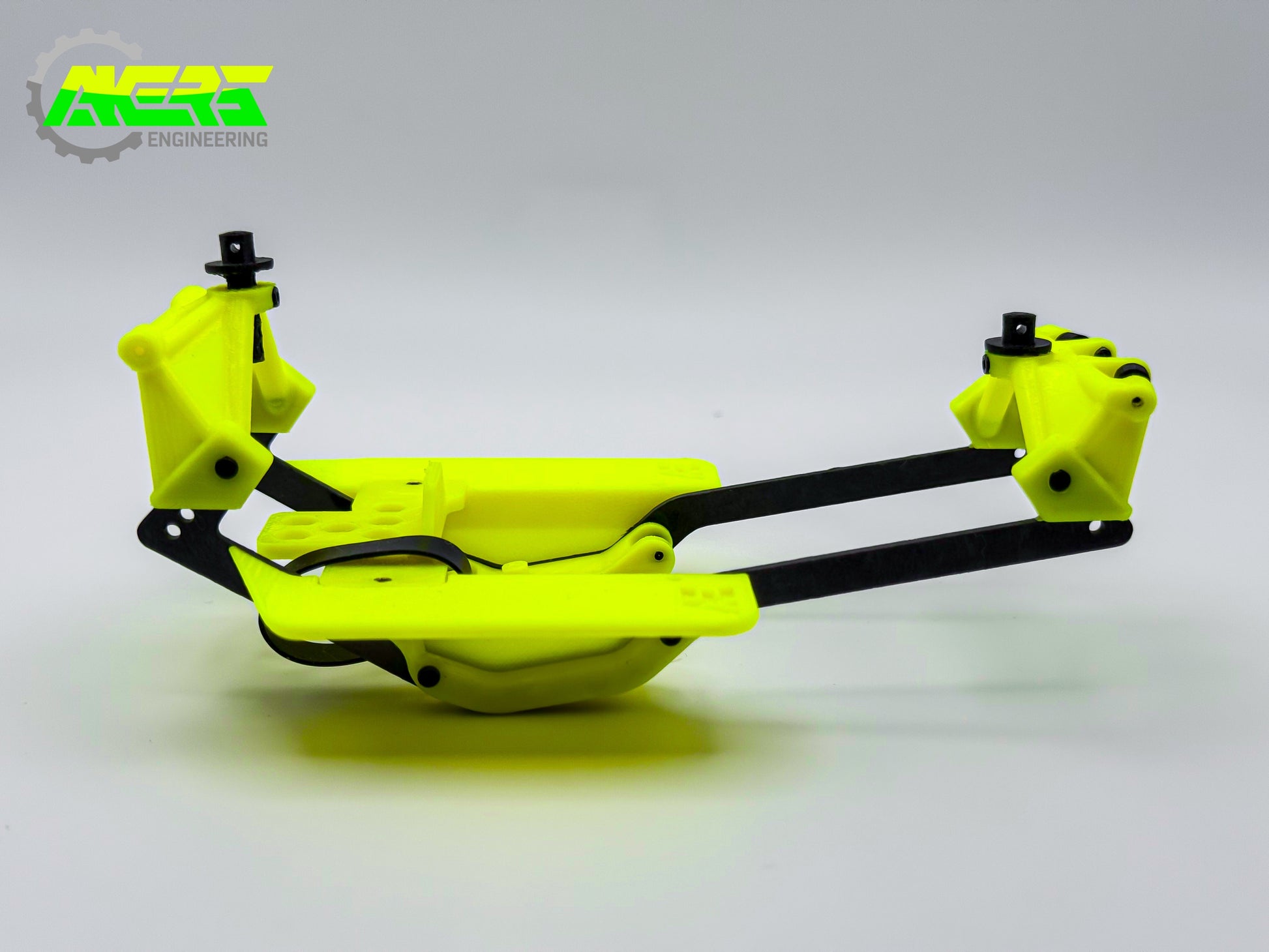

*Shock Tower Note: Shock towers are designed to be used with Meus +4mm Isokinetic front axle and AE Rock Attack Rear Axle with Proline 50mm Big Bore oil-filled Shocks. AE links are recommended with U.ROCK front length and Gladiator rear link lengths. Although they likely work with additional configurations, no other configuration has been tested by AE as of this time. If unsure, the shock towers can always be purchased separately. Body mounts currently designed to only work with 1/24 LEXAN bodies. Alternate body mounting options using existing shock towers will be available at a later time. The tiny black "shock spacers" are used to (fill) the rear shock tower cylinders if the Proline stainless rod ends with extensions are not used.

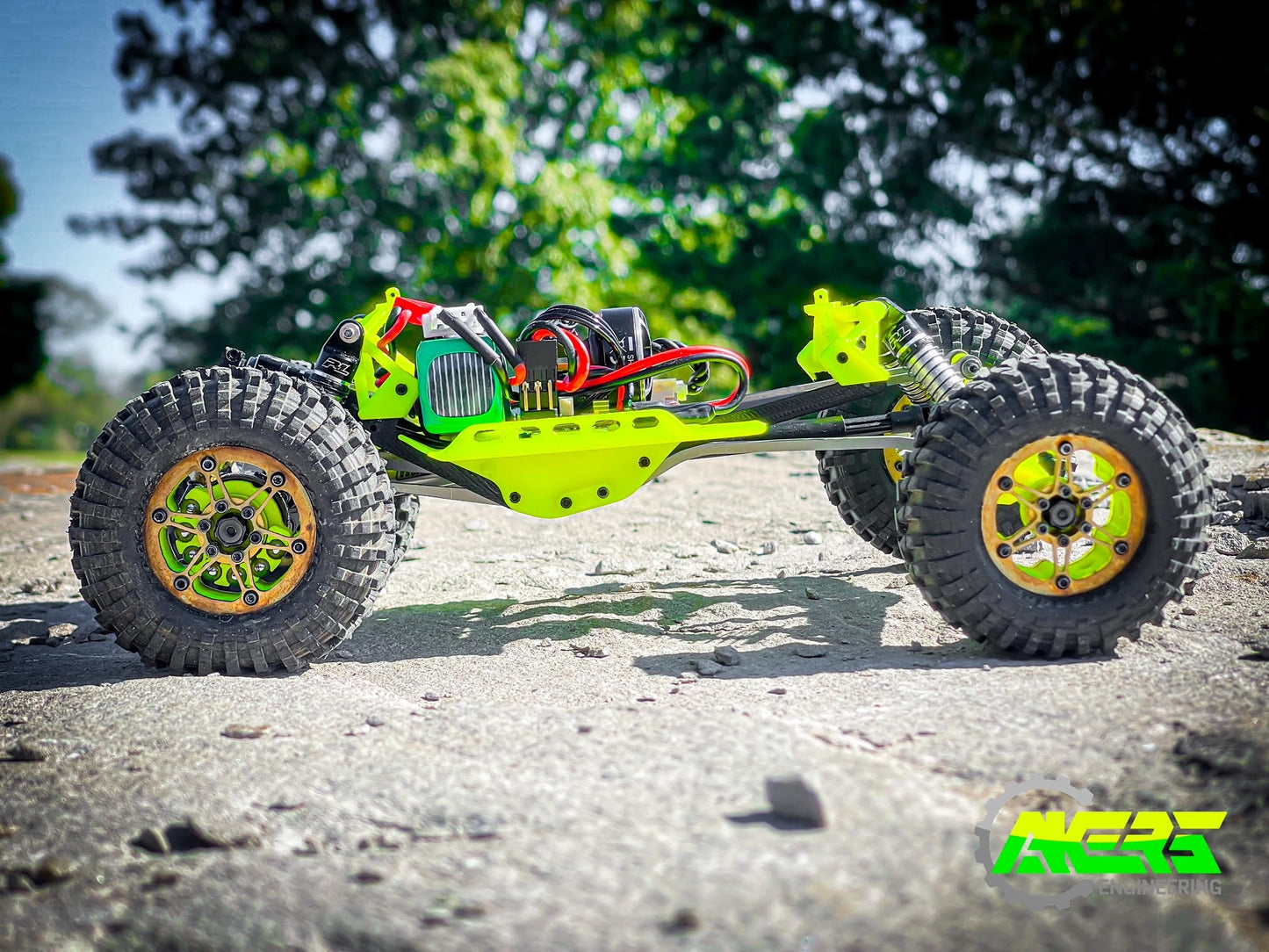

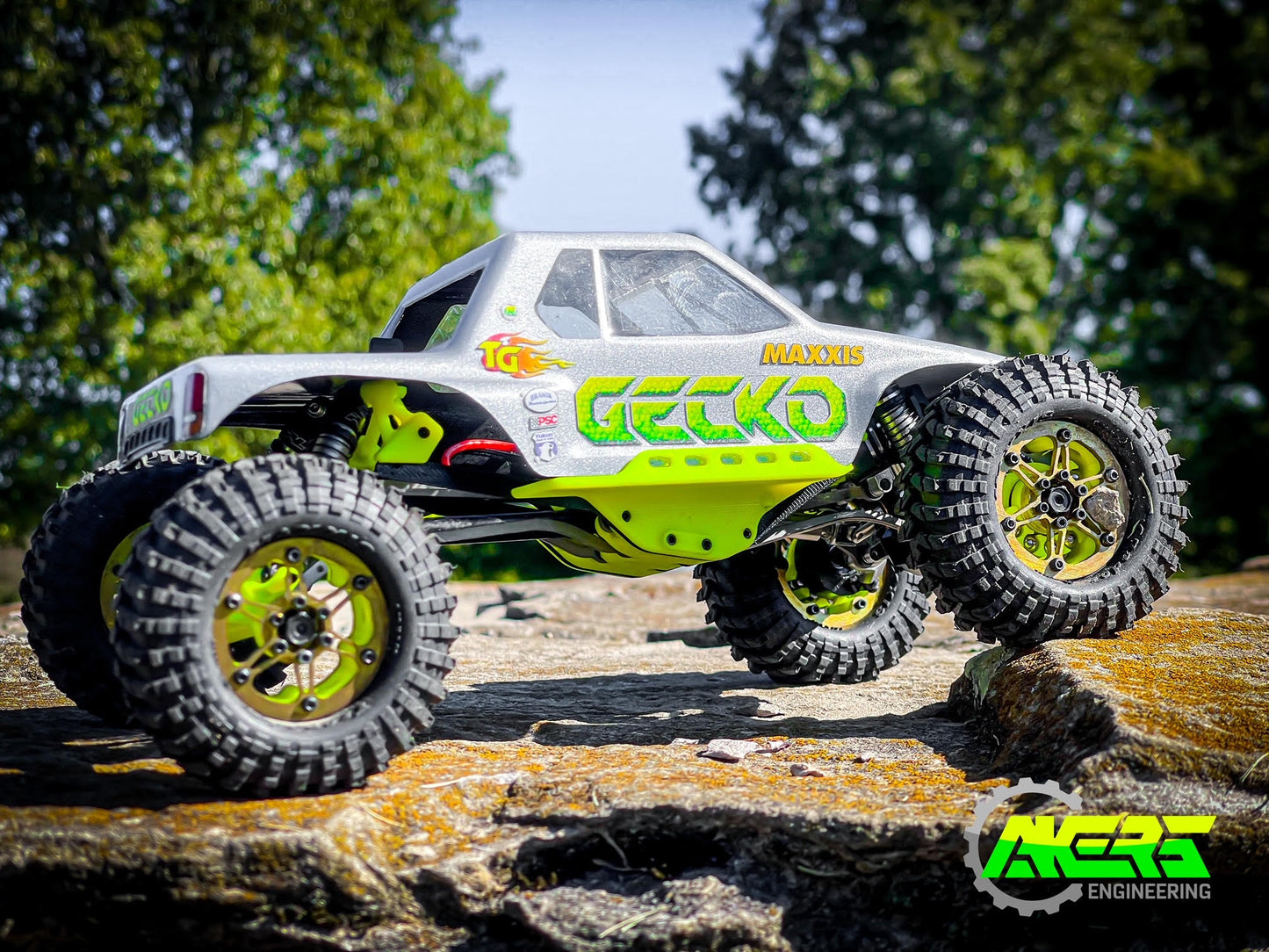

*Some depictions shown with optional equipment
