GECKO24 V1

This is the newest AKERS Engineering LCG chassis brought to the market. It has been engineered from the rocks up to give you as much performance as possible in an incredibly sleek, minimalistic footprint.

Competition-grade chassis aimed at maximizing key aspects of the SCX24. The front frame rails have been trimmed back to provide more clearance for over-sized micro servos. The rails themselves have also been shortened while maintaining enough overall length for most bodies to be mounted with ease.

Key Features:

• LOA = 160mm (Stock is approx. 171mm)
• better forward weight bias (skid approx 8mm further forward than stock)
• 10° angled skid (more up-travel before upper links contact larger 050 motors)
• raised center area will just barely allow batteries, electronics to clear driveshaft
• adjustable shock tuning positions (lay the frame on the axle, or be a monster truck...)
• numerous configurations with included crossmembers
• no additional battery mount needed- use 4 screws and couple of the the included rubber bands to get creative
• great strength to weight ratio

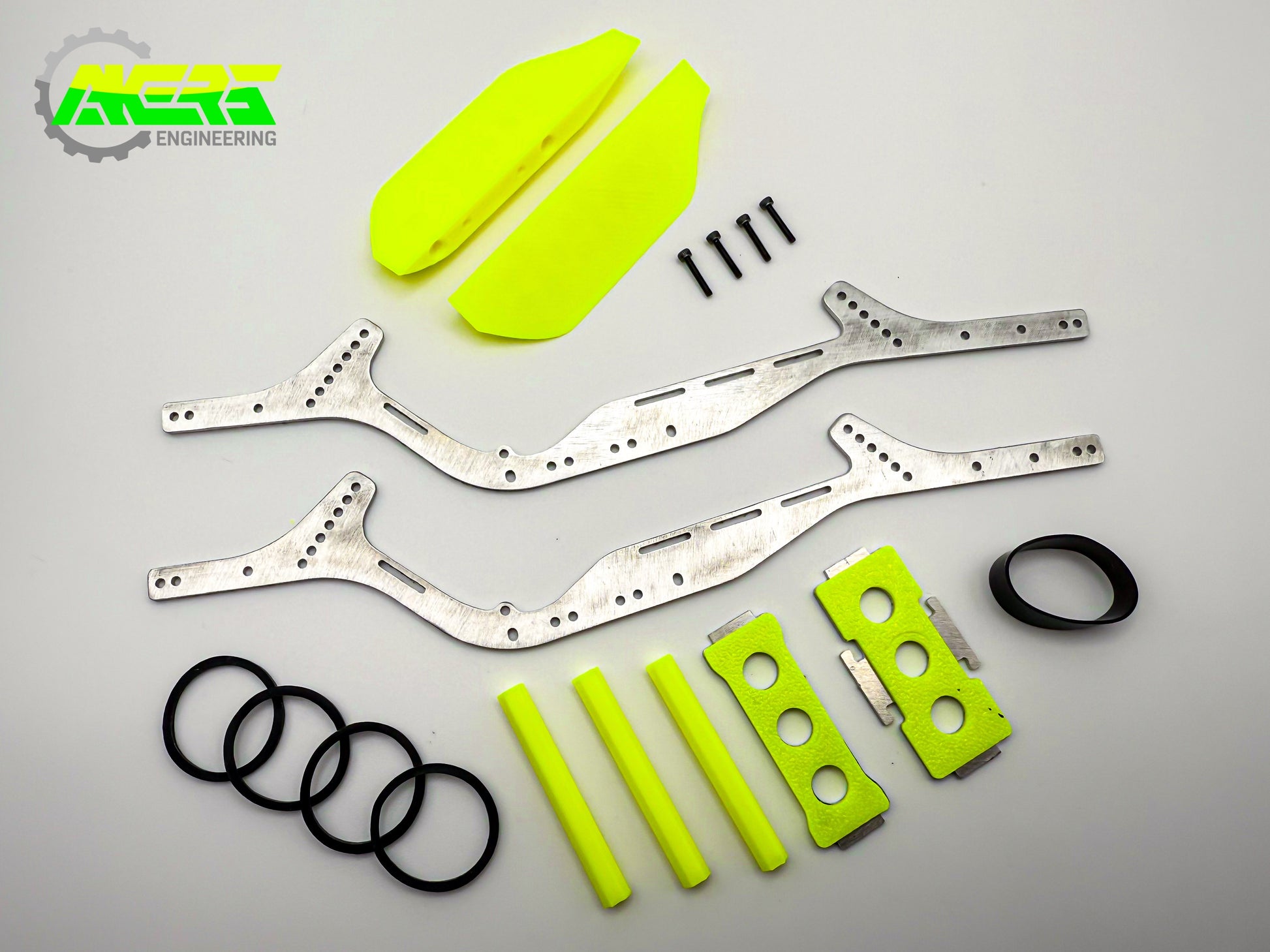

Includes:

• Qty. 2, frame rails
• Qty. 2, crossmembers and risers (for battery & electronics)
• Qty. 2, GECKO24 Sliders
• Qty. 3, 35mm struts
• Qty. 4, 3/4" black rubber bands (Used for electronics mounting)
• Qty. 1, Silicone band for securing electronics
• Qty. 4, M1.4 x 8mm screws (for sliders)

Crossmember risers should be adhered to the crossmembers to allow components to sit completely flush, AE recommends Shoe Goo II, available HERE.
