GECKO LCG Chassis Kit

Design your own 1/10 scale GECKO Chassis System! Choose a combination of the options below to complement your driving style, terrain or build preference.

• overall length: 406mm (16.0 in)
• inner width: 70mm (accepts skids up to 80mm wide)
• outer width: 76mm
• assembled mass:
• 5° angled skid
• material:  CNC machined from 3mm T300 high-gloss, plain-weave carbon fiber

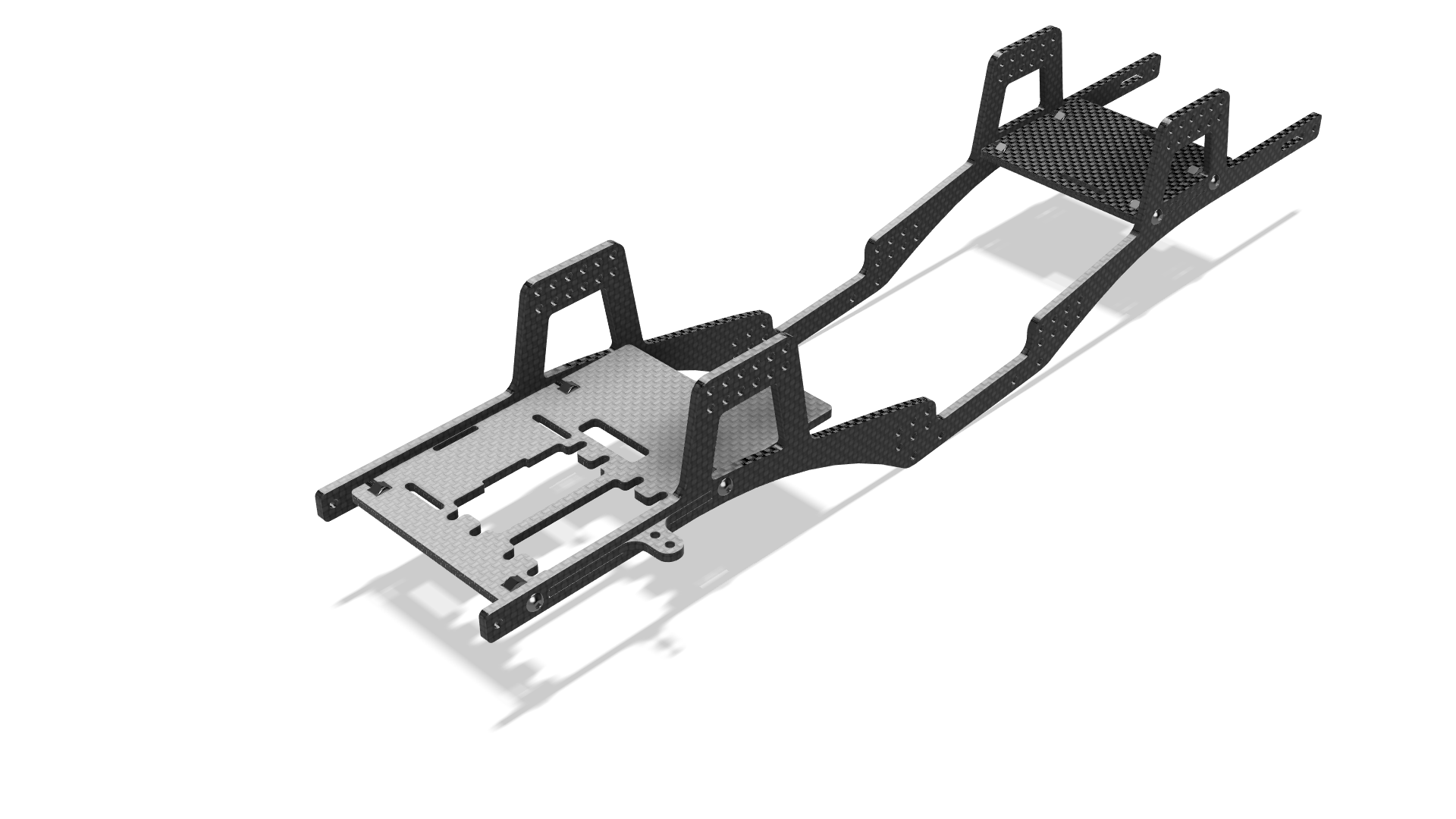

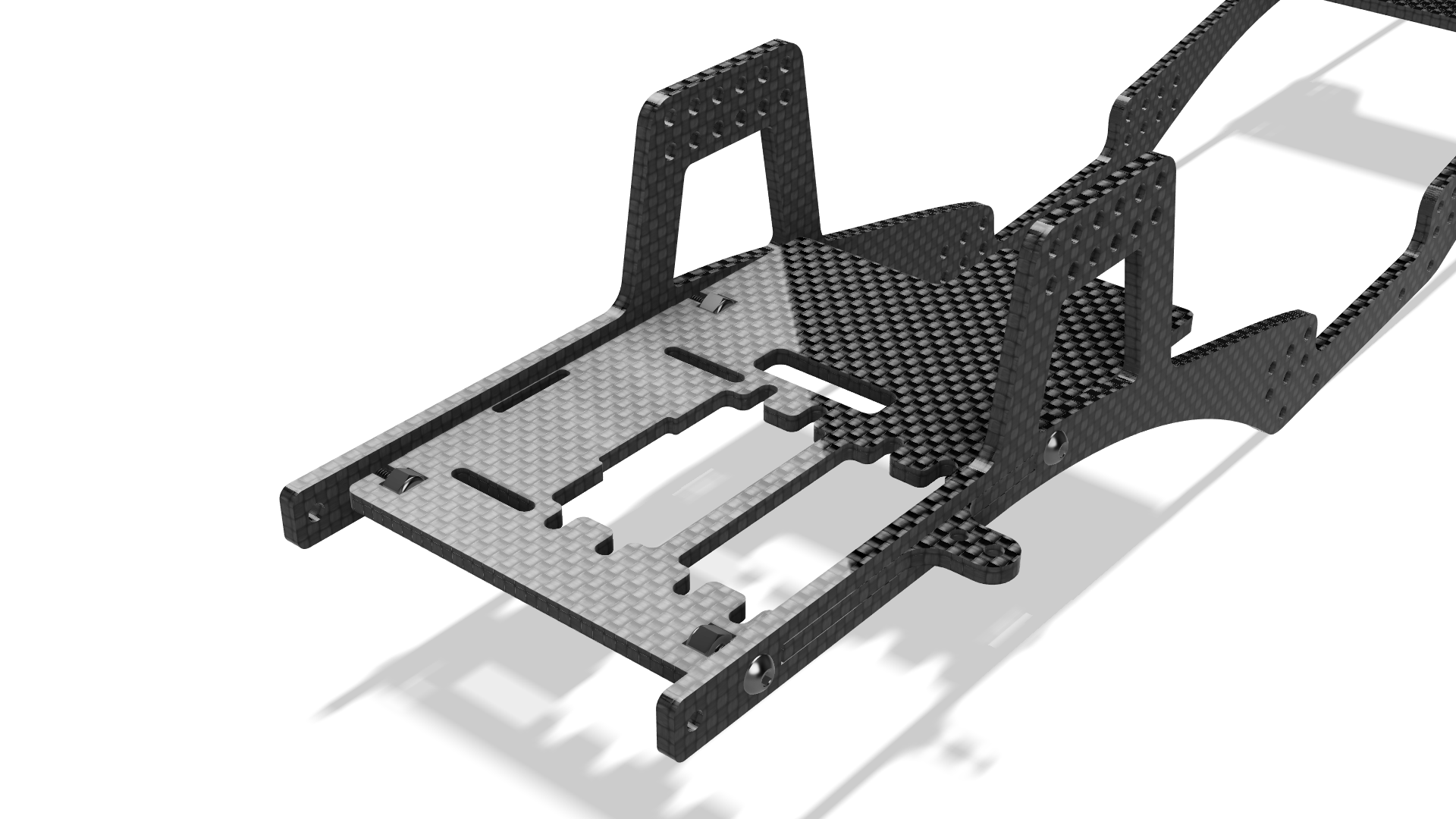

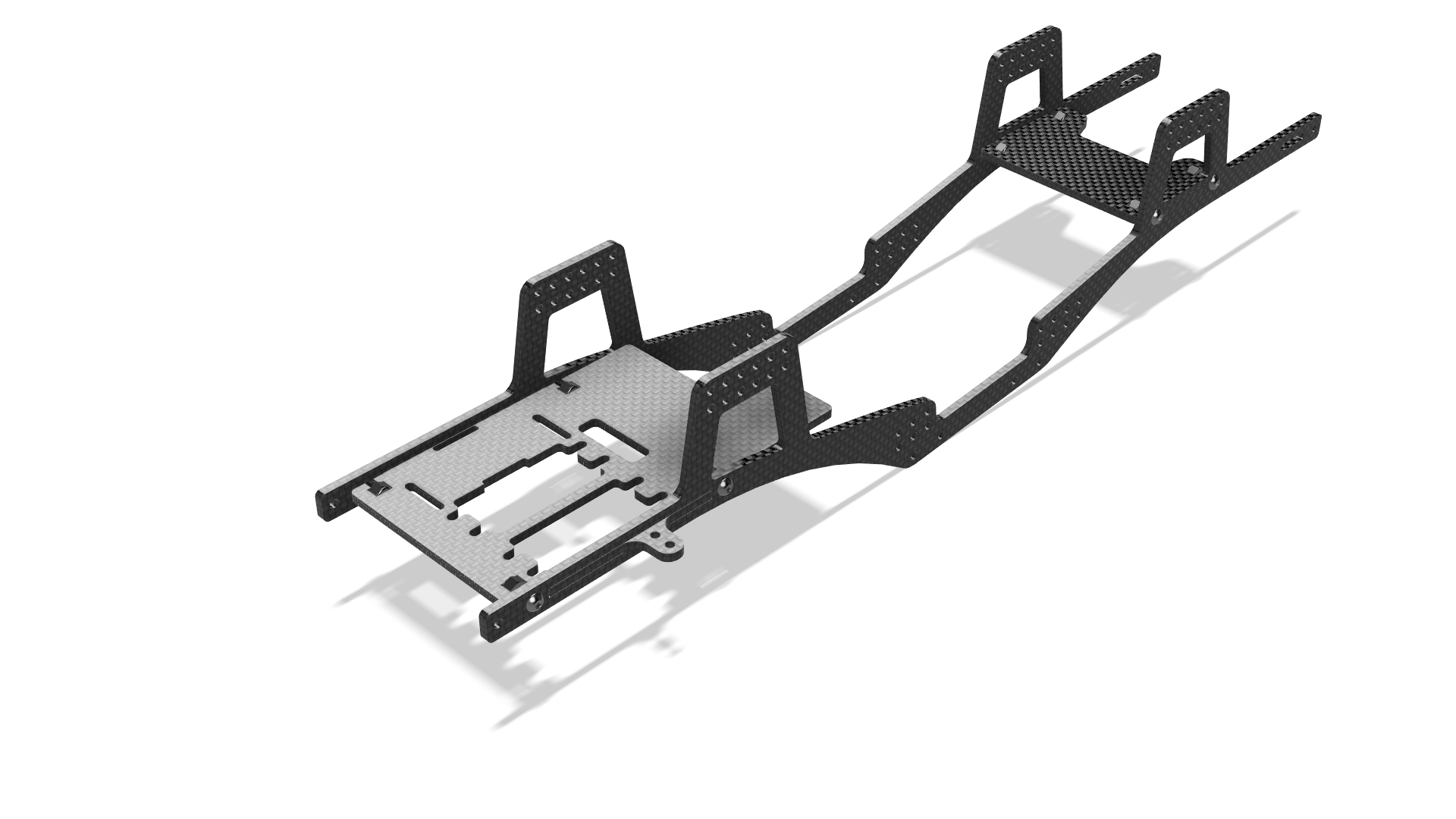

When configured with a Chassis-Mounted Servo (CMS) front crossmember all necessary components fit on the chassis system including:

• steering servo
• servo winch (internal or external spool)
• receiver
• ESC
• BEC (if applicable)
• winch controller
• 3S 450 mAh - 2200 mAh batteries
• a panhard mount is integrated into the CMS crossmember and no additional 3D-printed parts are necessary to be RTR.

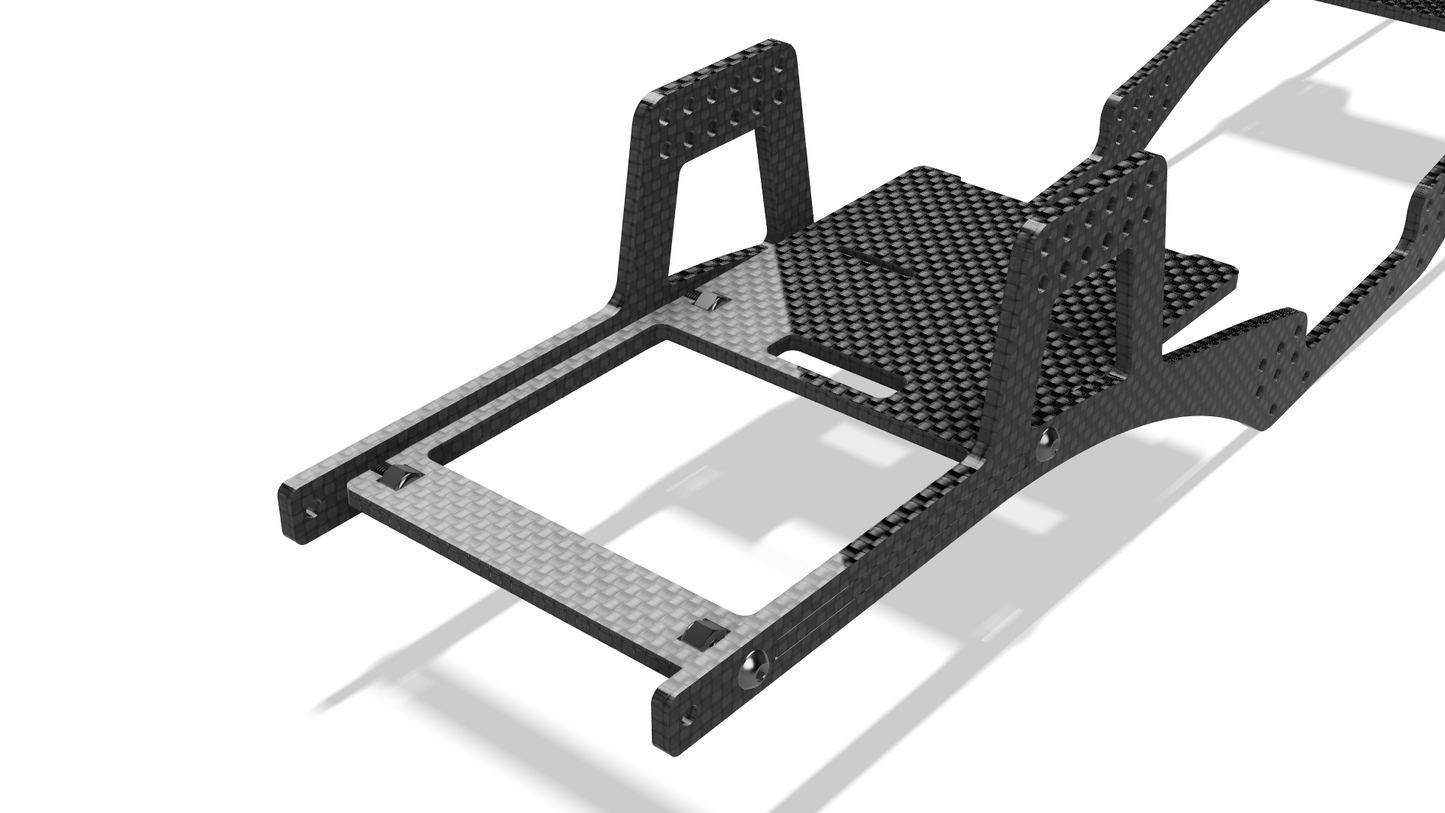

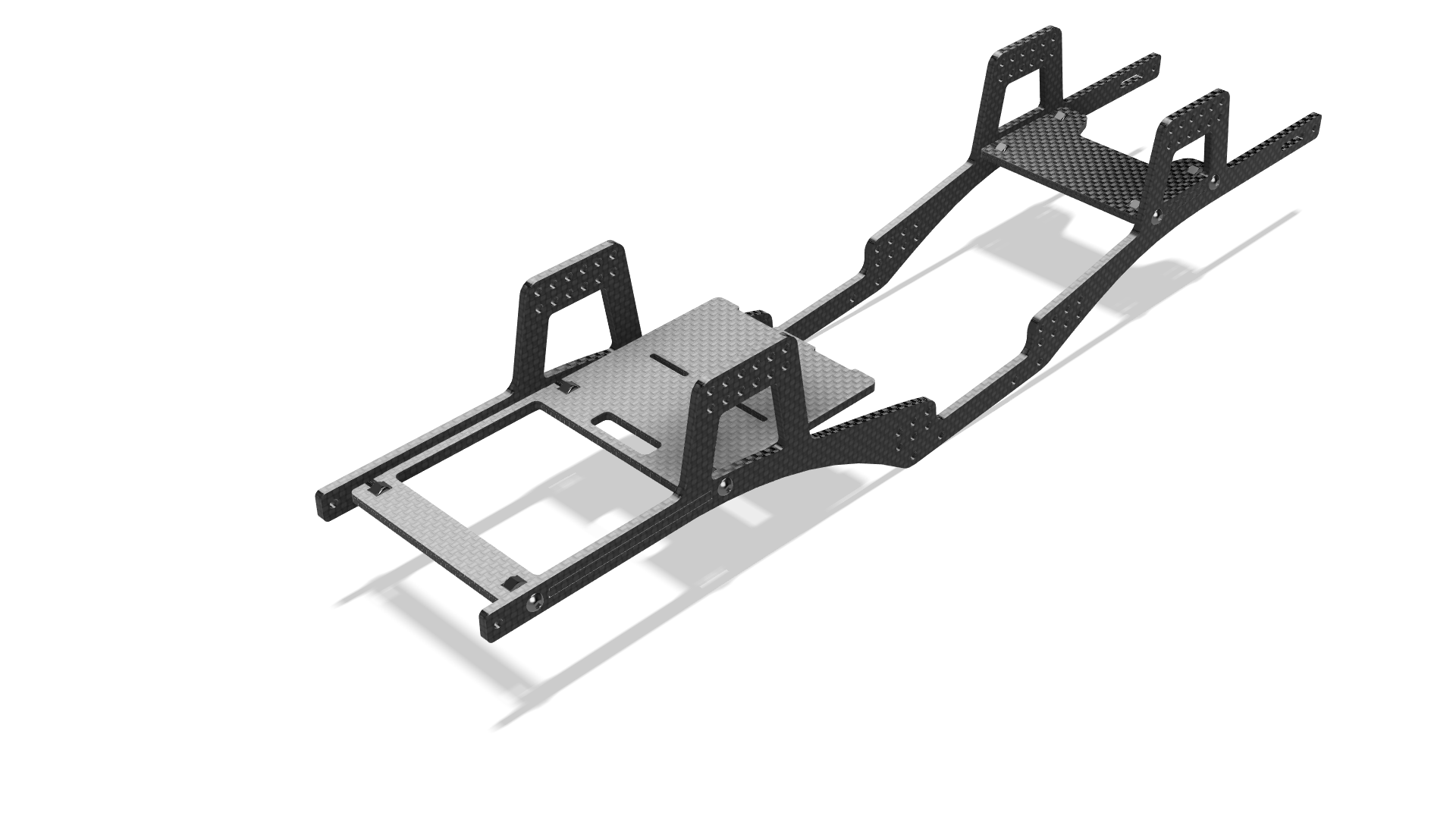

When configured with an Axle-Mounted Servo (AMS) front crossmember all necessary components can also fit onto the chassis system including:

• receiver
• ESC
• BEC (if applicable)
• servo winch (internal or external spool)
• winch controller
• 3s 2200 mAh - 5200 mAh batteries

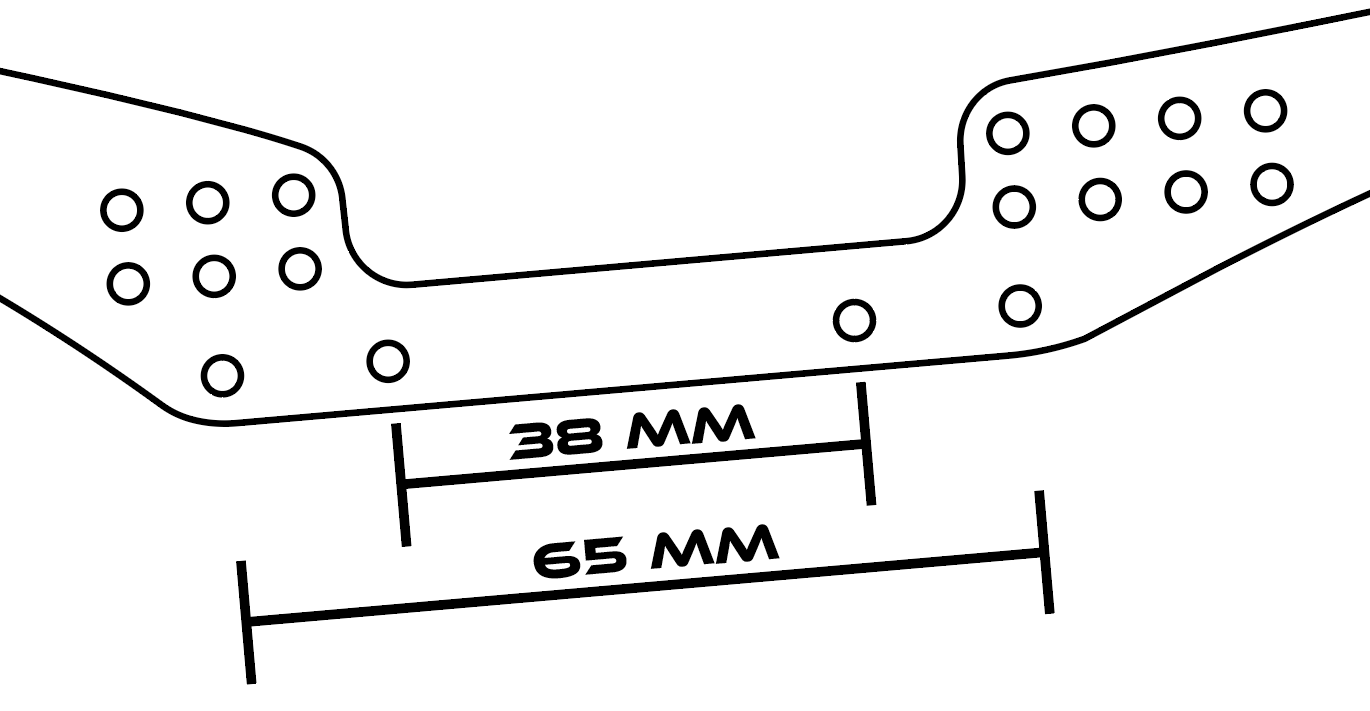

This chassis was specifically designed to work with the Axial Racing SCX-10II skid (see measurements in the pictures), but don't let that you stop you! It is possible to run any combination of drivetrain / skid with a little modification (drilling additional holes in the chassis to fit your build or Dremeling away close contact points). This chassis was intended to be a blank slate of sorts from the beginning and is a great starting point for any performance-driven build!

Included with LCG chassis kit:

• two frame rails
• your choice of front and rear crossmembers
• assembly hardware (see below)
• GECKO sticker sheet
• AE scale banner
• mini day gecko trail buddy

Included Assembly Hardware (Team KNK):
