Ultra High-clearance Links (REAR)

These rear links have been re-designed from the ground up to give you the most performance possible. Upgrading your stock links is one of the best upgrades you can do to get your SCX24 up and over more obstacles. With the release of these link sets, now you can upgrade your upgrades.

AE-designed suspension links aim to raise the standard in scale off-road performance via these improvement opportunities:

• laser-cut from Grade 5 Titanium
• higher-than-high clearance
• increased rigidity
• optimized caster (longer upper links)
• raises lower link mounting locations
• options to adjust wheelbase length
• rear-upper links have a proprietary design to allow for easy electronics mounting
• front-lower links are completely smooth leading into the skid
• smaller profile and narrower rod ends = more flex and less bind

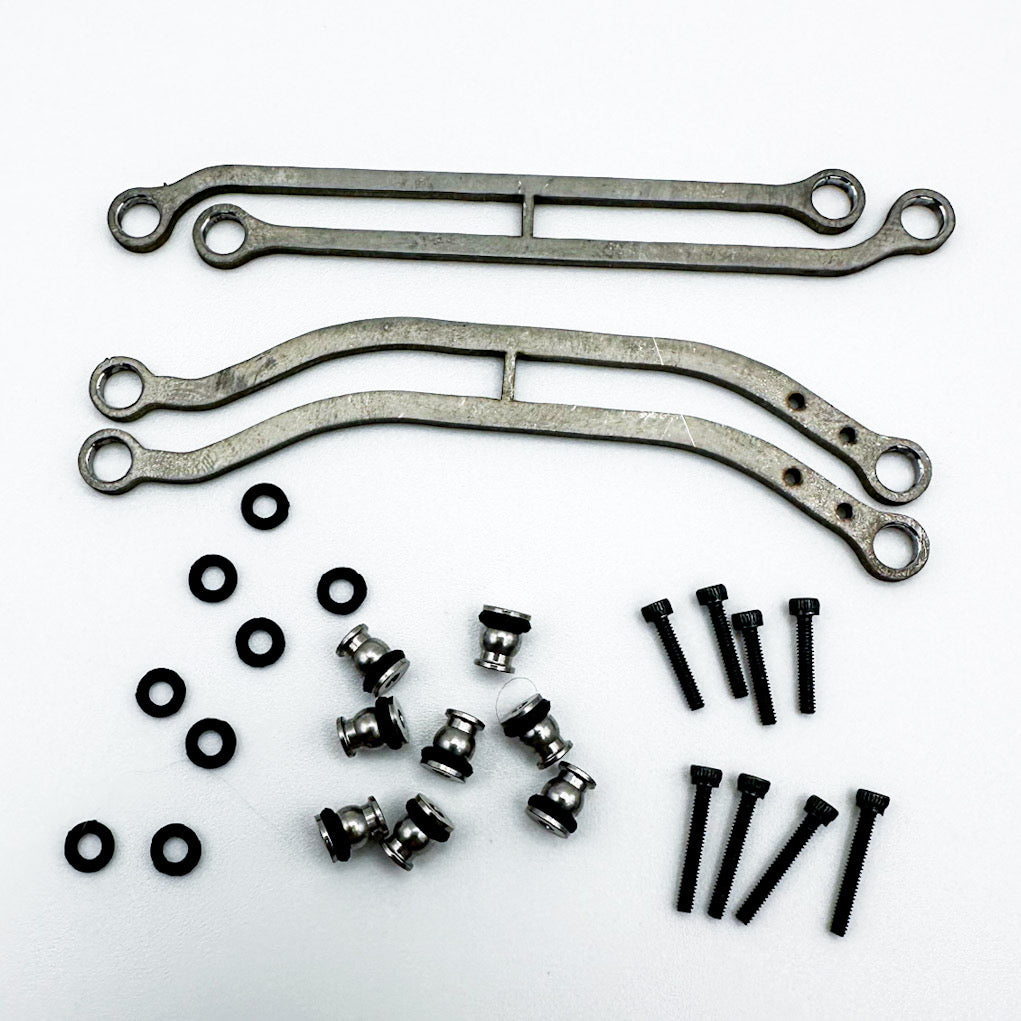

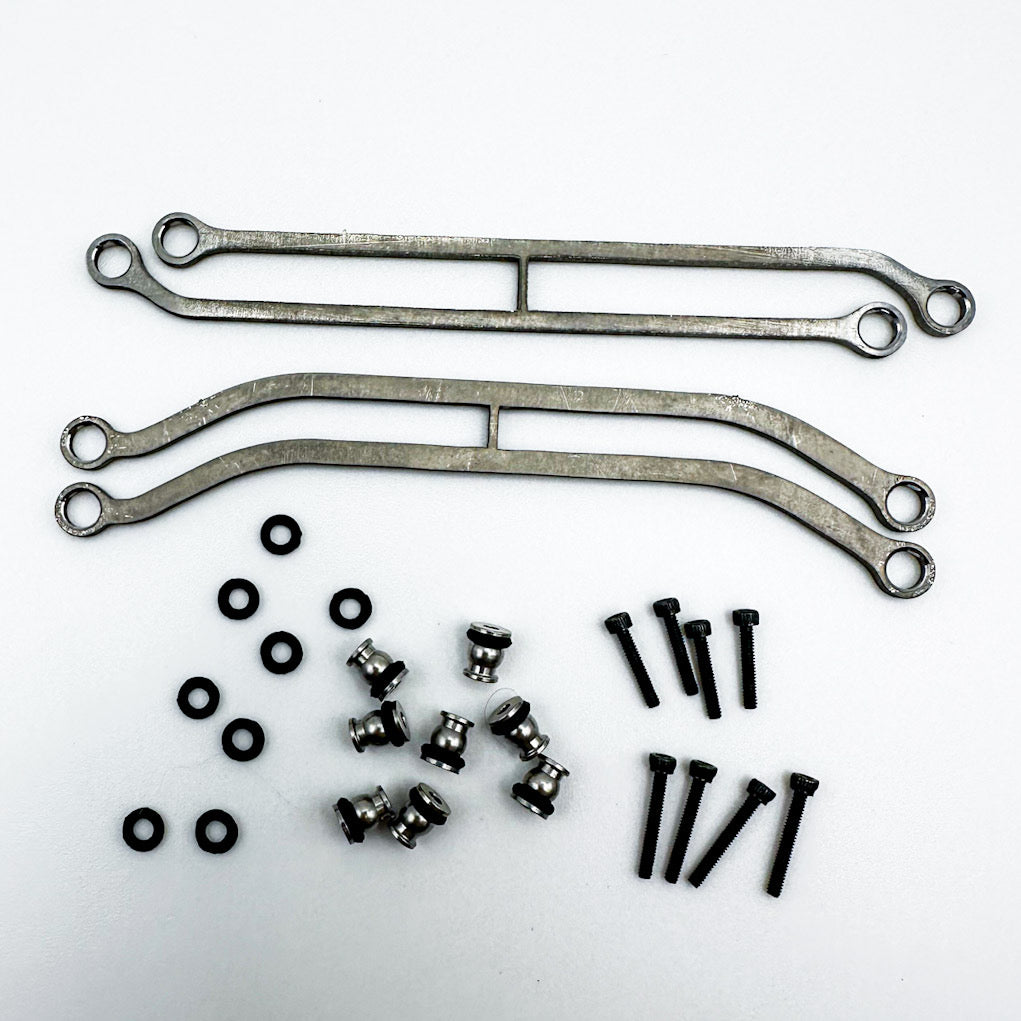

• paired with official Treal Hobby hardware (stainless balls, hardware, o-rings included)

Material:

• 1.6mm (0.063") Laser-cut grade 5 titanium

Note: This is a rear set of links ONLY. To upgrade one vehicle, a set of front links will need to be purchased separately.

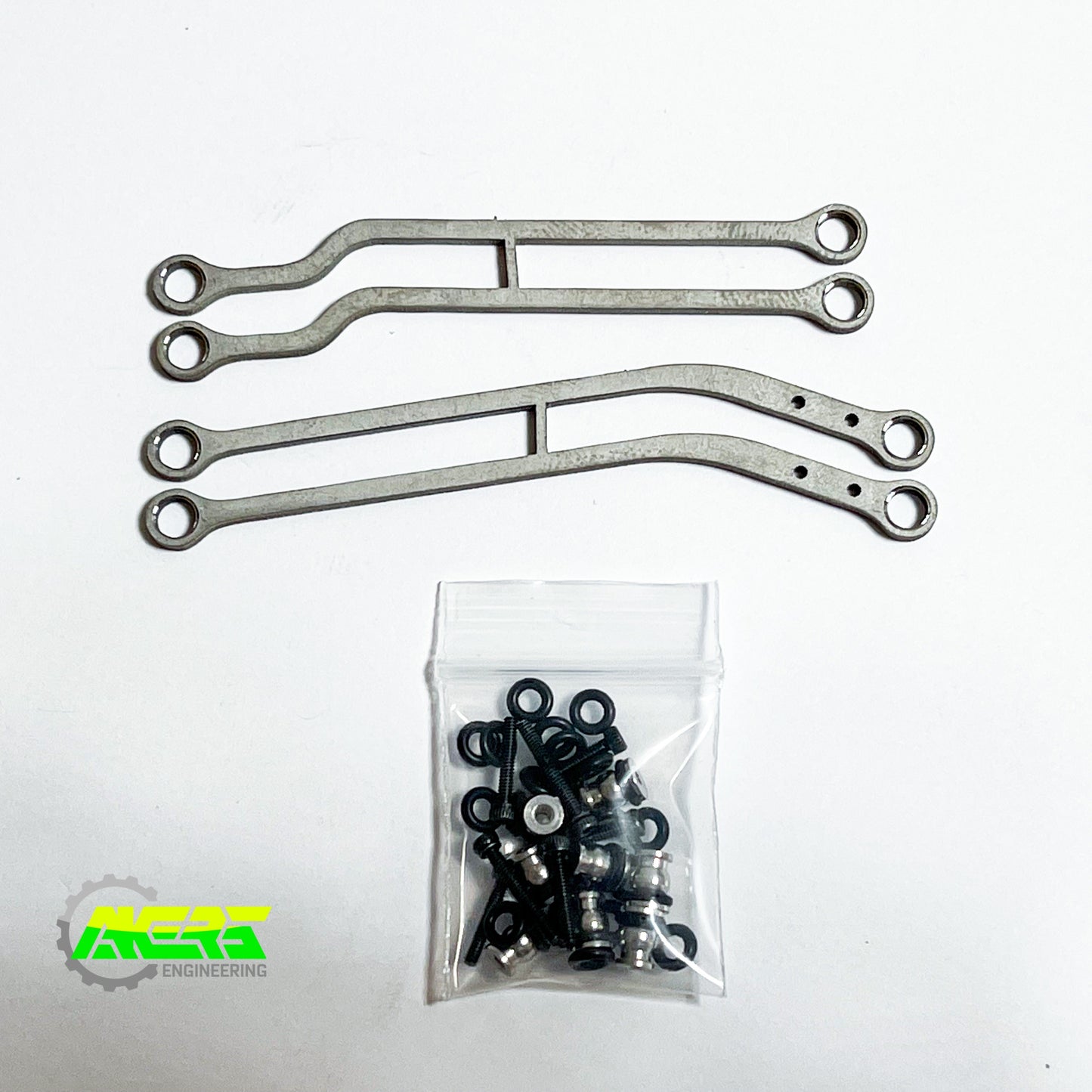

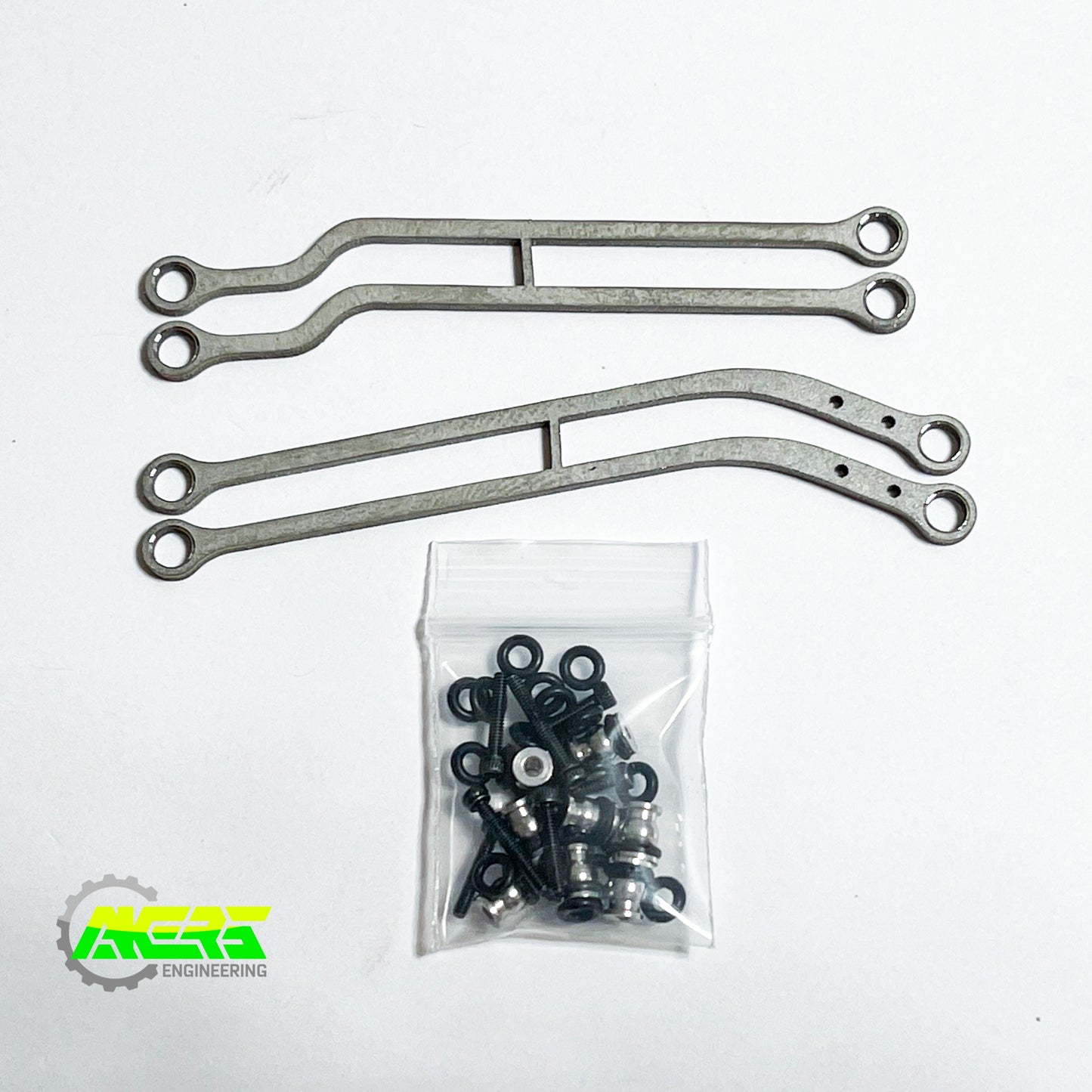

Note: Fabrication is required by the consumer to separate the links. They can be twisted apart. The remaining knob can then be cut/sanded/filed smooth.

*The rear-upper links have the "notch" closest to the skid plate. This better helps the links clear rear-facing 050 motors at full bump. The rear-lower links have the bend closest to the axle. See instructions for more information under "Documents" tab. Links are packaged raw and carbon-infused metallic allows (chromoly) should be coated with a rust-inhibitor depending on location and use.

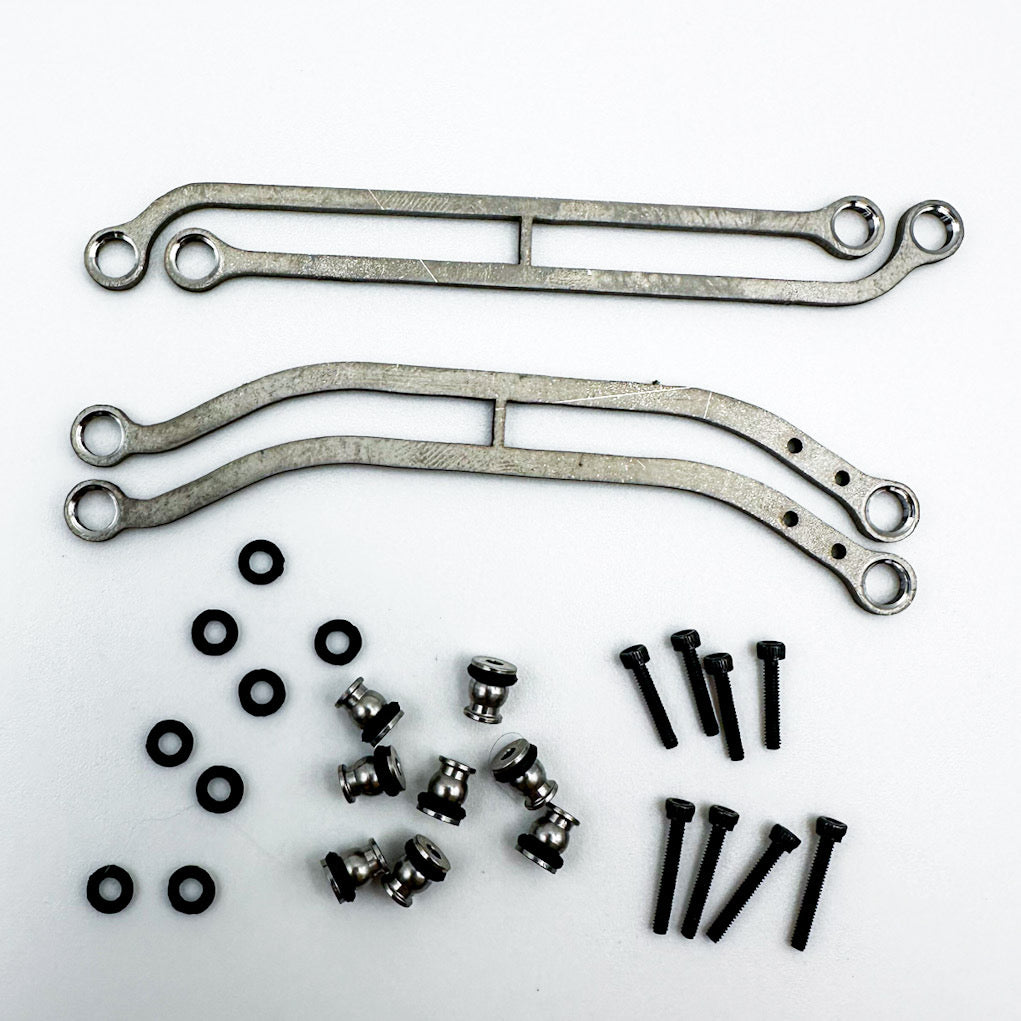

*Note: The new style of links have two small holes in each lower link. These ARE NOT PRE-THREADED for M1.4 screws. They only exist as guides should you choose to try and run inboard shocks. If you choose to thread them a 1.2mm drill bit and M1.4x0.3 tap will need to be purchased separately.
