SETAE Comp Knuckle Weight Hangers

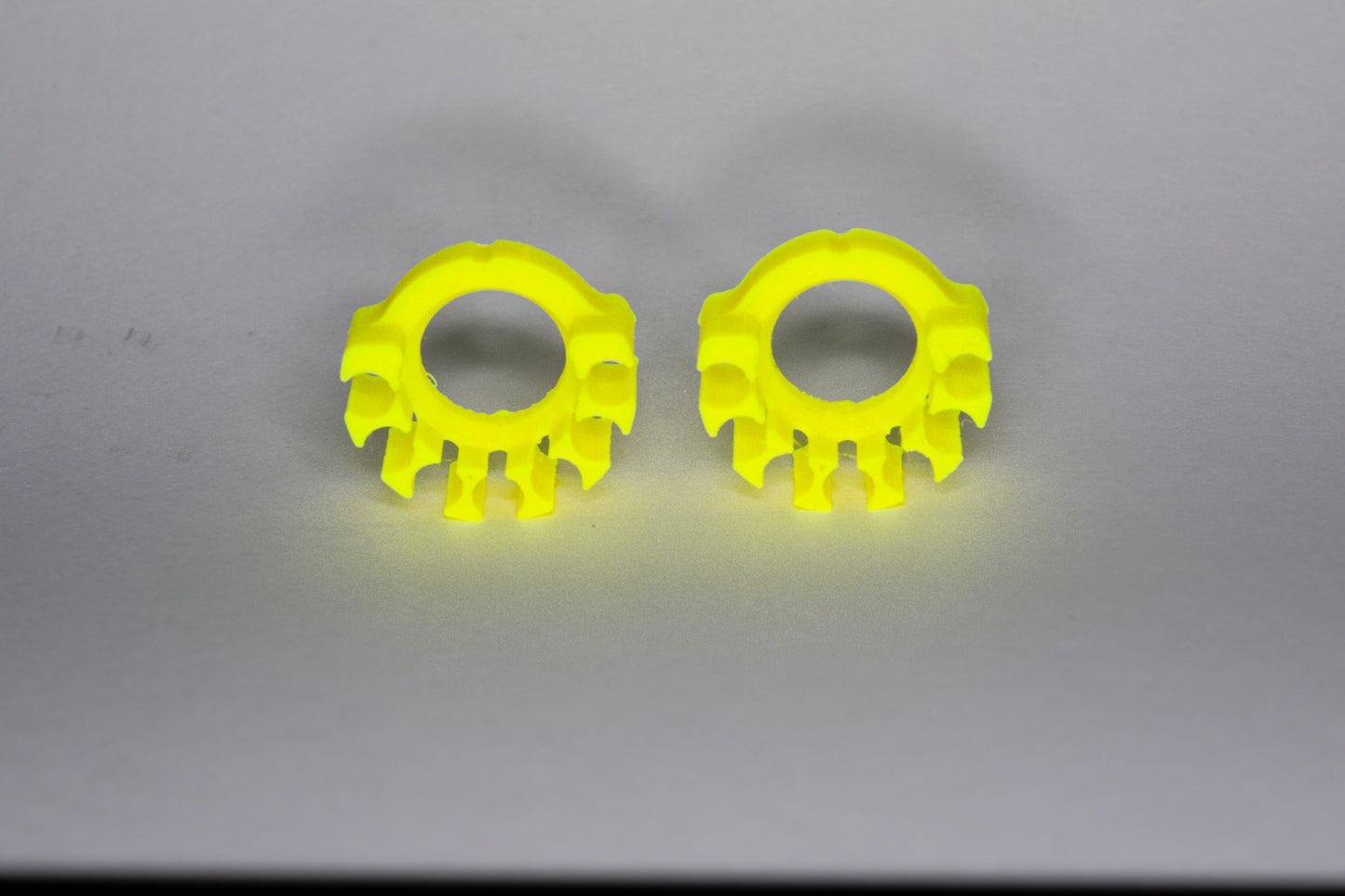

Pair of 3D Printed [PETG] and tunable knuckle weight hangers. WEIGHTS SOLD SEPARATELY.

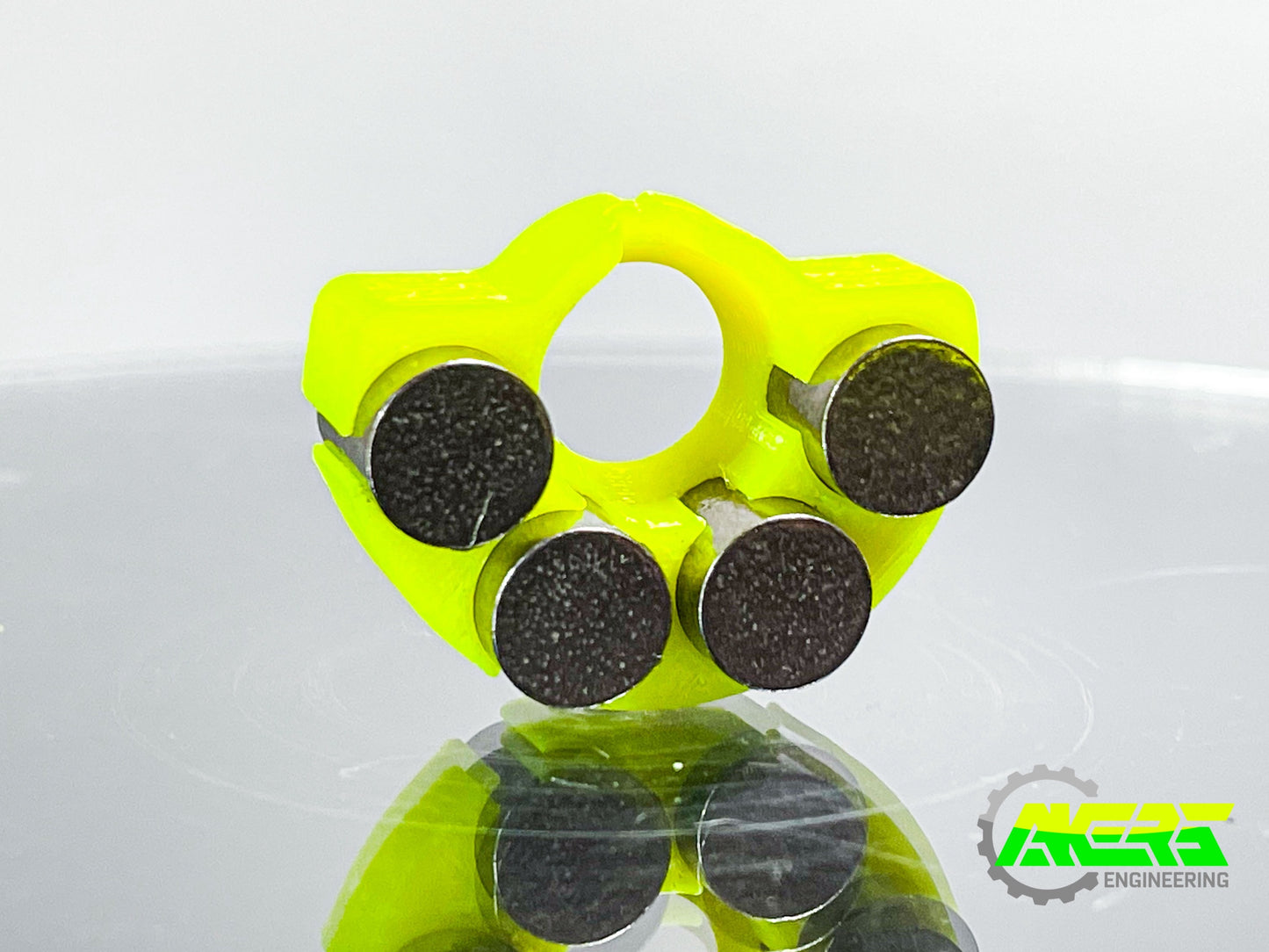

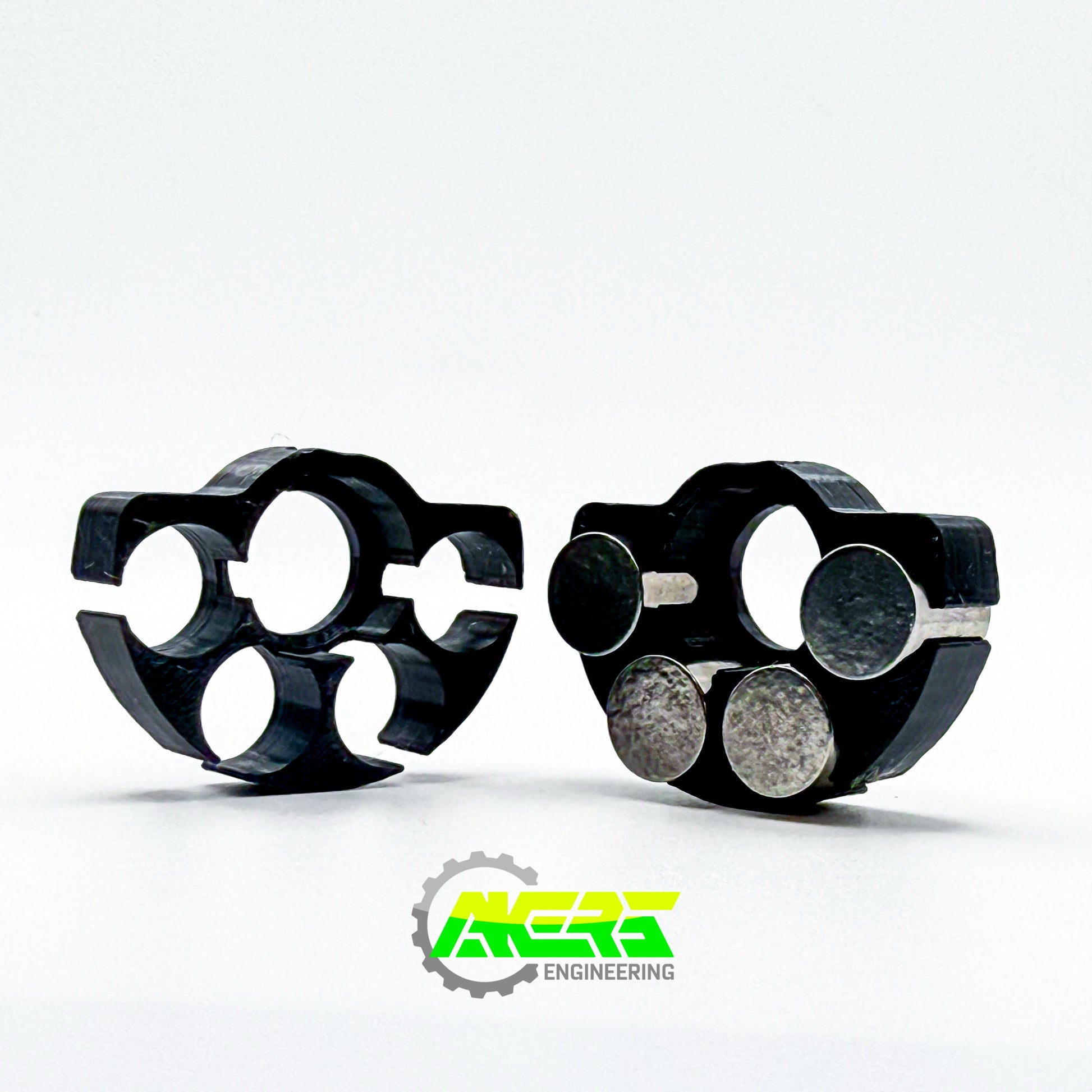

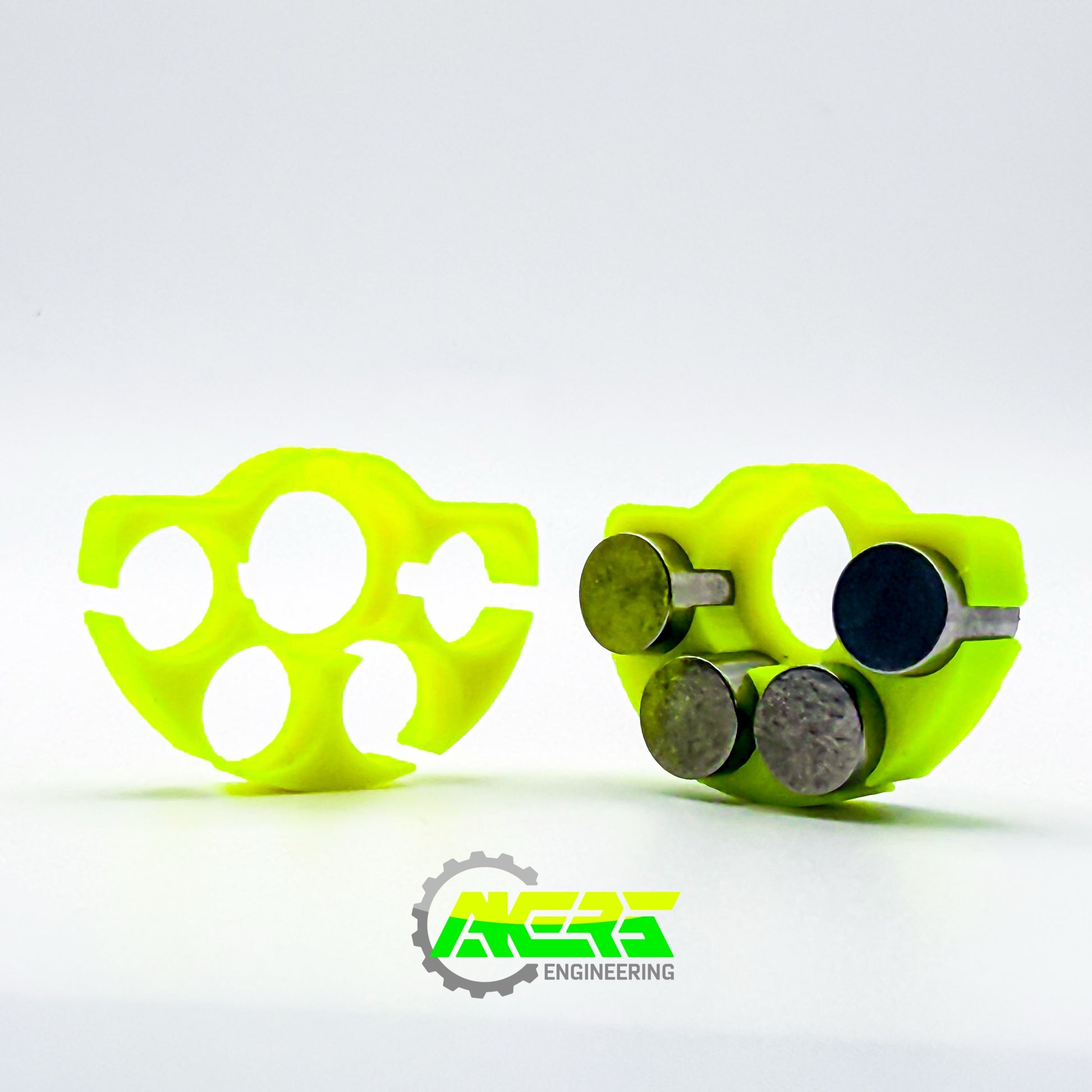

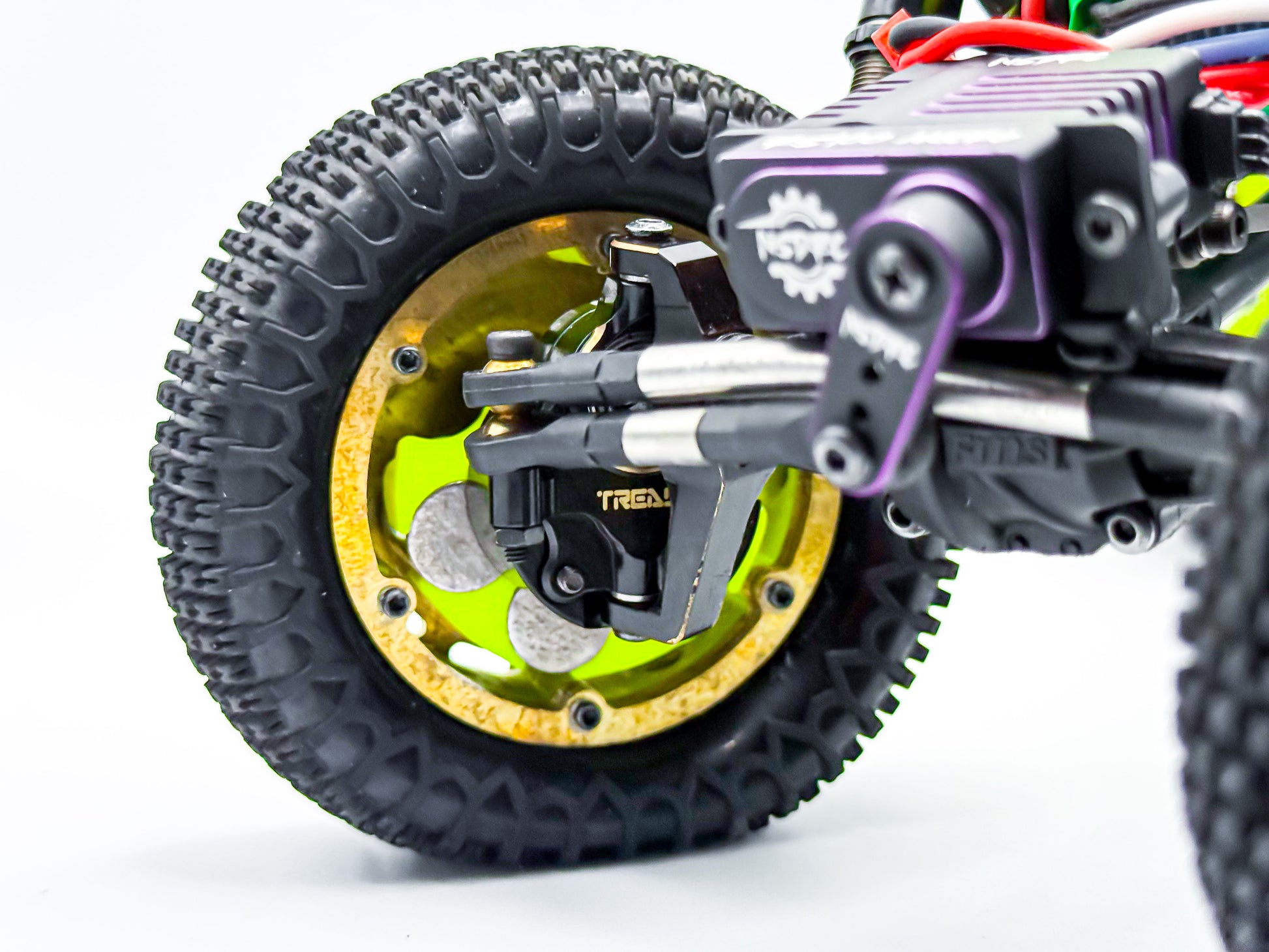

Designed to fit just inside the 1.8" (46mm) and 1.3" (33mm) SETAE Super Double Beadlock Wheels.  The 1.8" have an indexing mark at 12 o'clock which can be used to better align the knuckle weights with a desired marker (i.e. upper kingpin knuckle screw). The holes are 3/8" x 8mm and intended to be used with DLUX Fab Tungsten for Loaded Dice Weight Holders. Each knuckle is be able to hold a maximum of 4 tungsten slugs, equaling 60g per knuckle, 120g total added weight where you want it most! Note that the 2mm wheel spacers that are included with the SETAE wheels will need to be used in most cases. 3mm printed spacers available below.

INSTALLATION: Simply apply a small dab of ShooGoo, E6000, or CA Glue to the inside of the knuckle weight hanger. AE recommends ShooGoo, and be mindfull of the position of the weights when drying so that they don't inadvertently shift.

Currently tested with the following knuckles (more added when confirmed):

SCX24 Meus Isokinetic Strait Axles

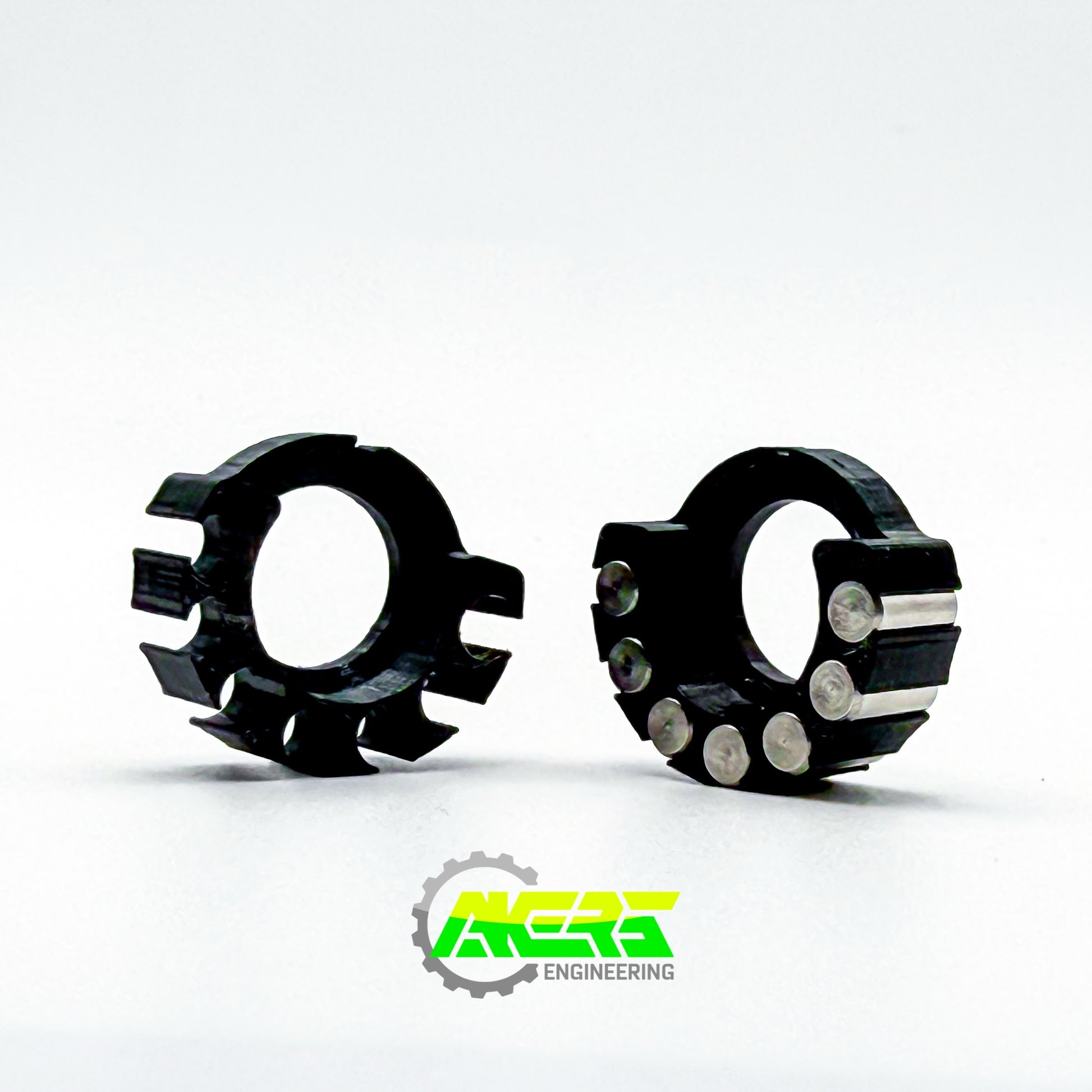

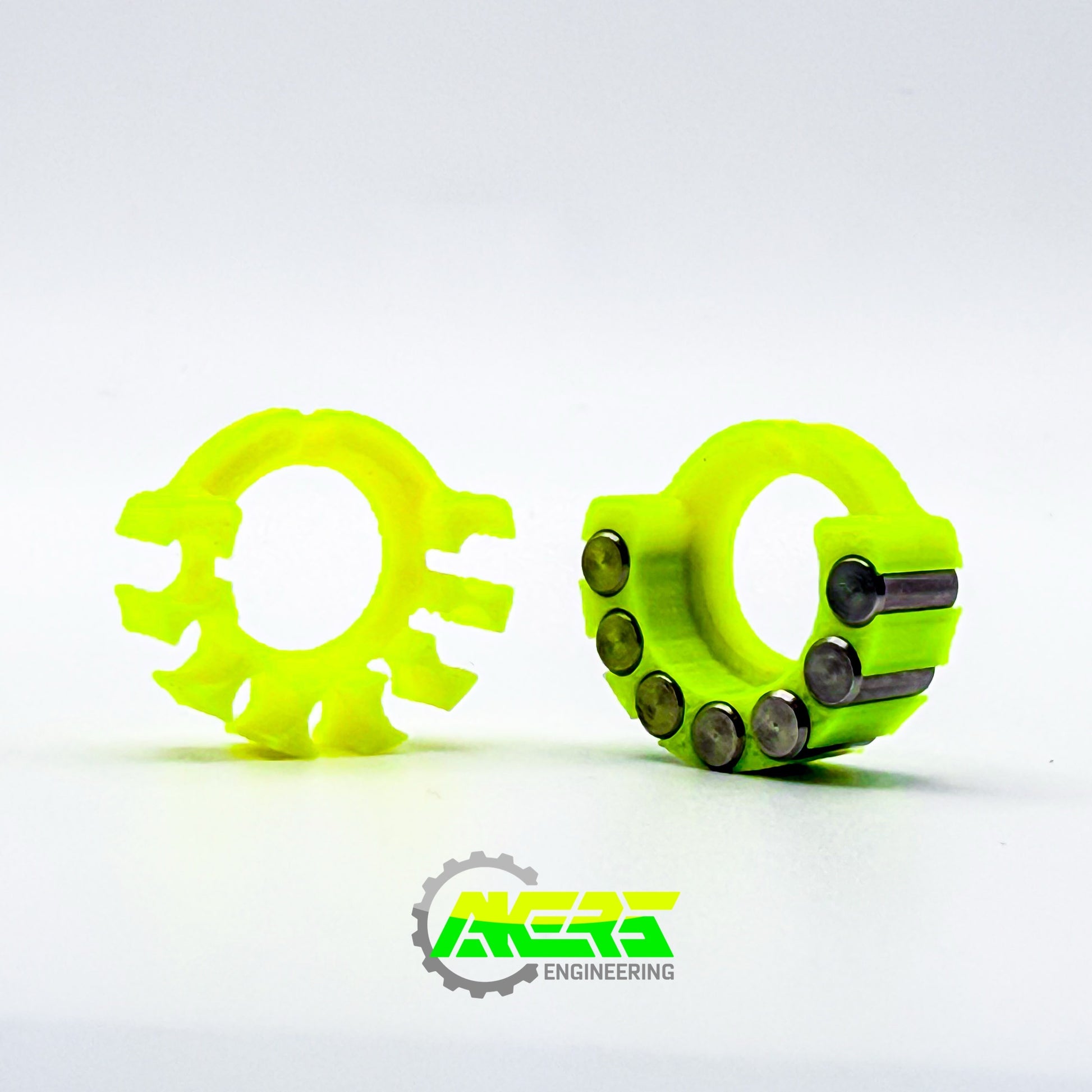

AE Recommended Weights for 1.3" hangers:

4mm Tungsten Balls

4mm x 8mm Stainless Dowel Pins
