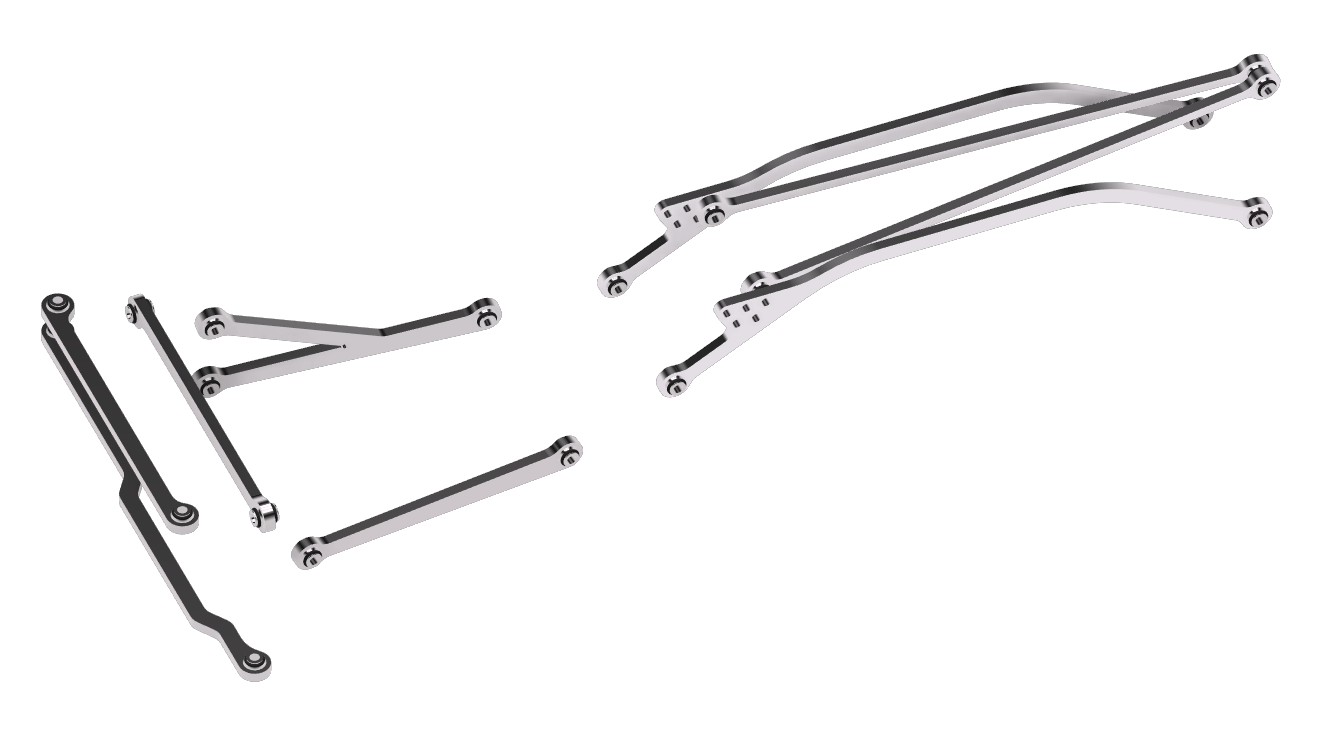

F10 Complete Mega High-Clearance Link Set

This is a mega high-clearance set of links designed and produced by AKERS Engineering for Vanquish Products F10 portal axles when used under the IGUANA LCG Chassis System.

Links are laser-cut from one piece of meta alloy to serve a specific purpose. Details are as follows below:

Included

Description	Qty.	Material	Size
Panhard	1	316 Stainless Steel	99 mm
Drag Link	1	316 Stainless Steel	93 mm
Tie Rod	1	316 Stainless Steel	147 mm
Front, Lower Control Arm (Left)	1	316 Stainless Steel	83 mm
Front, Radius Arm (Right)	1	316 Stainless Steel	83 mm / 84mm
Rear, Lower Control Arms	2	7075 T6 Aluminum	180 mm
Rear, Upper Control Arms	2	7075 T6 Aluminum	163 mm
Incision Stainless Pivot Balls	20	Stainless Steel	5.8 mm x .028 in
Buna-N O-Rings	40	Nitrile	1.5mm x 3.5mm ID

*These links are not yet tested with any other combination of axles or chassis.
